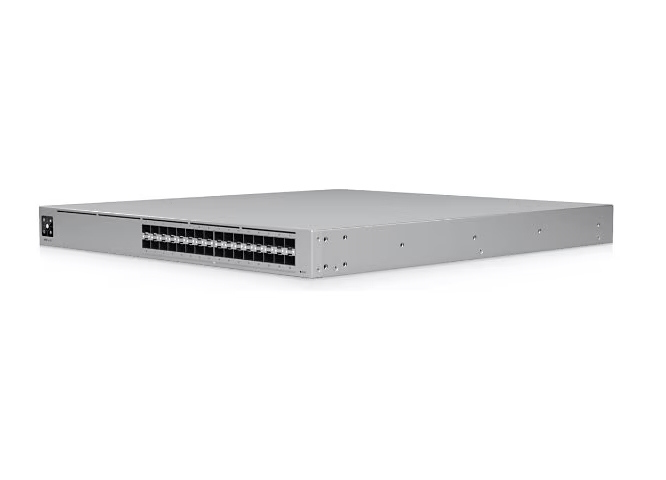

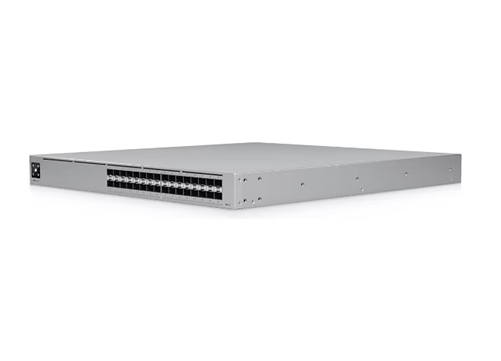

The Ubiquiti UniFi Pro XG Aggregation switch (USW-Pro-XG-Aggregation) is a 1.6 Tbps, 32-port, Layer 3 managed switch designed for high-bandwidth aggregation, featuring 32x 25G SFP28 ports for ultra-low latency performance. Key features include non-blocking throughput of 800 Gbps, a 1.3" touchscreen with AR management, support for Etherlighting™, Layer 3 routing capabilities, DC power backup, and a 1U rack-mount form factor.

Key Specifications

• Ports: 32 x 25 Gbps SFP28 ports
• Switching Capacity: 1.6 Tbps
• Total Non-Blocking Throughput: 800 Gbps
• Forwarding Rate: 1.2 Bpps
• Management: Layer 3
• Display: 1.3" Touchscreen
• Power: 100-240VAC Input, with DC Power Backup support
• Form Factor: 1U Rack Mountable

Key Features

• Etherlighting™: Customizable port lighting for network and device status.
• AR Switch Management: Integration with the UniFi Network application via AR.
• DC Power Backup: Provides resilience and continuous operation with a redundant DC input.
• Layer 3 Functionality: Includes features like Inter-VLAN Routing, Static Routing, and DHCP Server/Relay.
• High Performance: Designed for high-bandwidth aggregation with ultra-low latency, ideal for core network infrastructure, according to the UniFi Cloud Gateways - Tech Specs page.
