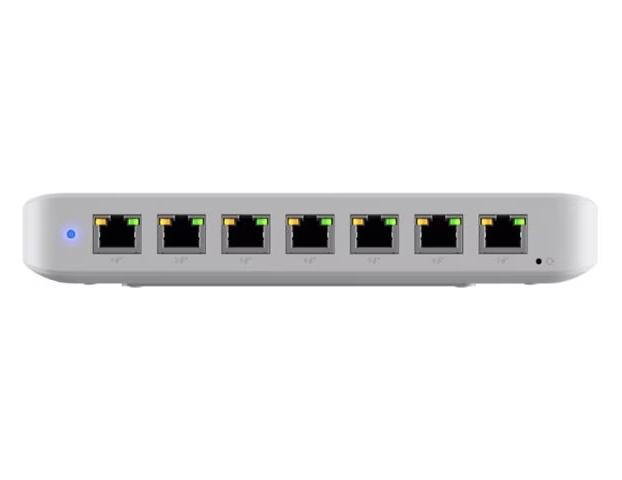

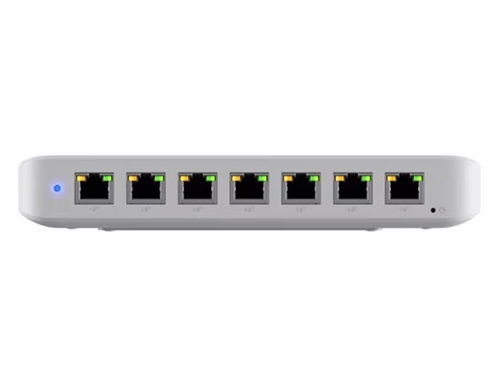

The Ubiquiti UniFi Switch Ultra 210W (USW-ULTRA-210W) is an 8-port, Layer 2 Gigabit Ethernet PoE switch with a 202W total PoE budget, featuring 7 PoE+ output ports and 1 PoE++ input port. It includes a dedicated 210W power adapter and supports versatile mounting options like desktop, wall, and magnetic placement. The switch offers a 16 Gbps switching capacity, with 8 Gbps total non-blocking throughput and 12 Mpps forwarding rate.

Key Specifications

• Ports: 8 x 1 GbE RJ45 ports (7 PoE+ out, 1 PoE++ in)
• PoE Output: Max. 30W per port (PoE+)
• PoE Input: PoE++ (Pins 1, 2+; 3, 6-) and (4, 5+; 7, 8-)
• Total PoE Availability: 202W
• Switching Capacity: 16 Gbps
• Forwarding Rate: 12 Mpps
• Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3 inches)
• Power Method: Includes a 210W power adapter
• Mounting: Compact desktop, wall, or magnetic
• Layer 2 Features: STP, RSTP, Egress Rate Limit, Flow Control, Port Isolation, Port Mirroring
