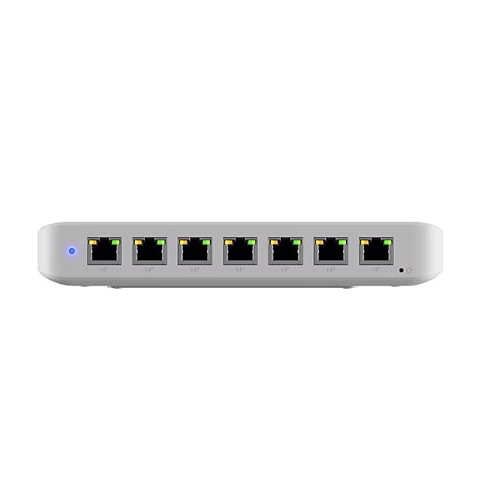

The Ubiquiti UniFi Ultra 60W (USW-ULTRA-60W) is a compact, 8-port Layer 2 gigabit PoE+ switch with 7 PoE output ports and 1 PoE++ input port. It features 8 GbE RJ45 ports, 8 Gbps non-blocking throughput, a 16 Gbps switching capacity, and supports advanced Layer 2 features like VLANs. The switch includes a 60W AC adapter, providing up to 52W of PoE power for connected devices, and supports additional external power options for higher wattage outputs. It can be wall-mounted, desktop-mounted, or attached magnetically, and is managed through the UniFi Network application.

Key Specifications

• Ports: 8 x 10/100/1000 Gigabit Ethernet (RJ45) ports
• Port Configuration: 7 x PoE+ output ports and 1 x PoE++ input port
• Switching Capacity: 16 Gbps
• Throughput: 8 Gbps non-blocking
• PoE Output Power: Up to 30W per PoE+ port
• Total PoE Power (with included 60W adapter): 52W
• Power Input: Optional 802.3af/at/bt PoE input or included external 60W AC adapter
• Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3 inches)
• Weight: 320 g (11.3 oz) for the device
• Enclosure Material: Polycarbonate

Key Features

• Compact Form Factor: Designed for easy mounting on walls, desktops, or with magnetic attachments.
• Layer 2 Functionality: Supports advanced features such as VLANs, port mirroring, and storm control for enhanced network management.
• Universal Powering Options: Can be powered via the included AC adapter or by a PoE++ input port.
• UniFi Network Integration: Compatible with the UniFi Network application for centralized remote management and configuration.
• Versatile PoE+ and PoE++ Support: Offers flexibility in powering PoE-compatible devices.
