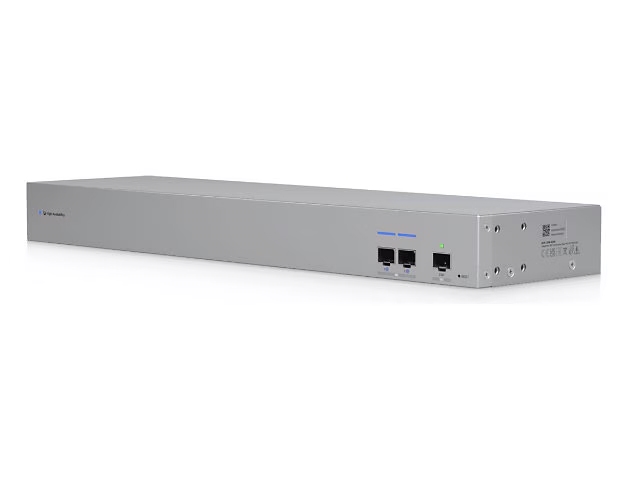

The UniFi USW-WAN is a high-availability WAN switch designed for redundant, business-critical network architectures, featuring a 1x 1GbE RJ45 port, 3x 10GbE SFP+ ports, and a 1x 1GbE RJ45 management port. It offers 20 Gbps switching capacity and 10 Gbps non-blocking throughput, supporting seamless failover with two UniFi Gateways for nonstop operation. The switch includes a 1U rack-mountable form factor, dual AC power inputs, and operates within the UniFi ecosystem requiring UniFi Network application version 9.1.120 or later for management.

Key Specifications

• Ports: 1x 1 GbE RJ45, 3x 10 GbE SFP+, 1x 1 GbE RJ45 (Management)
• Switching Capacity : 20 Gbps
• Non-Blocking Throughput : 10 Gbps
• Power: Dual internal AC/DC power supplies with universal input (100-240V AC)
• Form Factor : 1U Rack Mountable
• Power Consumption : Max. 18W
• Cooling: Passive cooling
• Management: Ethernet (via UniFi Network application)
• Software: Compatible with UniFi Network application version 9.1.120 and later

Features and Use Cases

• High Availability :  Designed for high-reliability WAN architectures, especially with dual UniFi Gateways.

• Redundant Power :  Equipped with two AC inputs for continuous operation and fault tolerance.

• Performance:  Delivers high throughput for demanding applications like VoIP, video conferencing, and large file transfers.

• Energy Efficient :  Features low power consumption and passive cooling for quiet, reliable operation.

• UniFi Ecosystem Integration :  Seamlessly integrates into a UniFi network for centralized management and monitoring.
