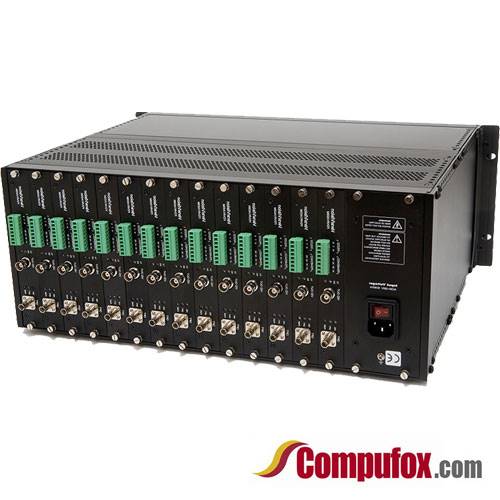

The 4U 19" Rackmount Chassis supports rackmount installation for SFPEX 2, 4 or 8 channel video optical converter modules.The chassis employs a 110/220 VAC switch Mode Power Supply (SMPS) design, which reduces the possibility of a single module failure causing a shutdown or a major failure of other modules within the chassis. The high reliability and stability ensures that if one module shuts down, the operation of the other modules remains unimpaired. Two air-cooling fans are installed inside to further strengthen the superior performance of the system and eliminate the necessity of periodic maintenance. Status information can be read through the LED indicators on the installed modules. All of the modules installed in the chassis are hot-swappable, which makes it unnecessary to power-down the chassis when replacing modules.

Features

• 19" Rack Mount, 4U high
• Up to 18 Available Module Slots
• Switched-Mode Power Supply Design
• Built-in Dual Fan
• Modules are Hot-Swappable

Specifications

• Input Voltage: 110/220VAC
• Power (Each Module) 12VDC-500mA
• Filter: AC/DC Filtering
• Slots: 18 (It can hold 18pcs 2/4 channel converters, or 9 pcs 8 channel converters)
• Size: 18.97 x 11.81 x 7.09 Inches
• Fan: 2
• Power: 12VDC / 0.23A
• Power Consumption: 3W
• Construction: Aluminum
• Finish: Paint
• Shipping Weight: 33 lbs.
• MTBF: >100,000 hours
• Operating Temperature: -30°C to +50°C
• Storage Temperature: 40°C to +85°C
• Relative Humidity: 0% to 95% (non-condensing)

Application Example
