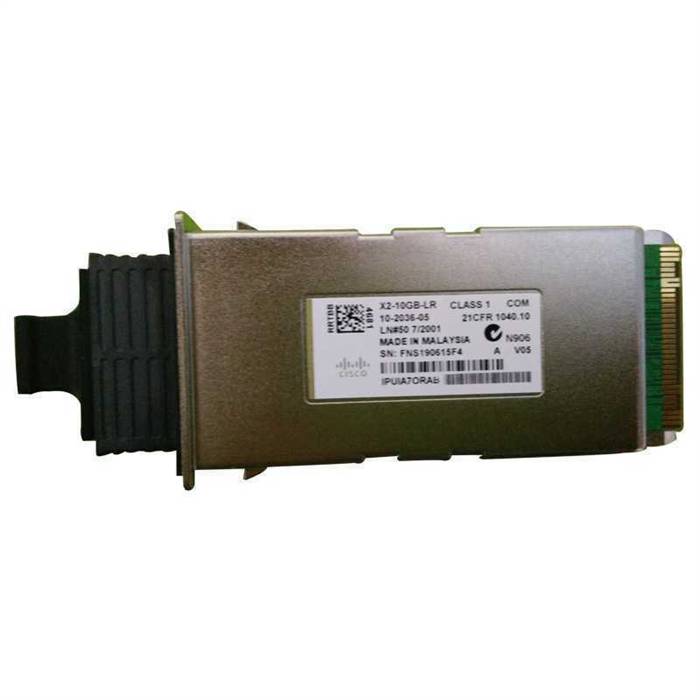

Cisco X2-10GB-LR 10GBASE-LR X2 Module for SMF
Genuine Cisco X2-10GB-LR

Our Price: $120.00
Warranty: 1 Year Warranty
Availability: Call


Product Code: X2-10GB-LR
Qty:

Description

The Cisco 10GBASE X2 modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Main features of Cisco 10GBASE X2 modules include:
  • Support 10GBASE Ethernet
  • Hot-swappable input/output device plugs into an Ethernet X2 port of a Cisco switch or router to link the port with the network
  • Provides flexibility of interface choice
  • Supports “pay-as-you-populate” model
  • Supports the Cisco quality identification (ID) feature that enables a Cisco switch or router to identify whether the module is certified and tested by Cisco
  • Has optical interoperability with respective 10GBASE Xenpak, 10GBASE XFP and 10GBASE SFP+ modules on the same link

Cisco X2-10GB-LR
The Cisco 10GBASE-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652).

Specifications
  • Product Number: X2-10GB-LR
  • Description: Cisco 10GBASE-LR X2 Module for SMF
  • Connectors: Dual SC/PC connector
  • Wavelength: 1310nm
  • Cable Type: SMF
  • Cable Distance: 10km
  • Transmit Power (dBm):
    • Maximum: 0.5
    • Minimum: -8.2
  • Receive Power (dBm):
    • Maximum: 0.5
    • Minimum: -14.4
  • Transmit Wavelength Range (nm): 1260 to 1355
  • Receive Wavelength Range (nm): 1260 to 1565
  • Dimensions (D x W x H): 91mm x 36mm x 13.46mm
  • Operating temperature range: Commercial temperature range (COM): 0 to 70°C (32 to 158°F)
  • Storage temperature range: -40 to 85°C (-40 to 185°F)
  • Power Consumption: 4W

Platform Support
  • Cisco X2 modules are supported on Cisco switches and routers.
  • Cisco 7600 WS-X6708-10G-3C
  • Cisco 6500 WS-X6708-10G-3CXL
  • Cisco 6500 WS-X6708-10G-3C
  • Cisco WS-C3560E-48TD
  • Cisco 6500 VS-S720-10G-3CXL
  • Cisco 3100 WS-CBS3130X-S
  • Cisco 6500 WS-X6716-10G-3CXL
  • Cisco WS-C4900M
  • Cisco 4900 WS-C4948-10GE
  • Cisco 4500 WS-X45-SUP6-E
  • Cisco 4500 WS-X4013+10GE
  • Cisco WS-C3750E-48PDF
  • Cisco WS-C3750E-48TD
  • Cisco 6500 VS-S720-10G-3C
  • Cisco WS-C3560E-48PD
  • Cisco 4500 WS-X4606-X2-E
  • Cisco 4900 ME-4924-10GE
  • Cisco 6500 WS-X6708-10G-3CXL
  • Cisco 6500 WS-X6716-10G-3CXL
  • Cisco WS-C3560E-24PD
  • Cisco 6500 VS-S720-10G-3C
  • Cisco WS-X4904-10GE
  • Cisco WS-C3560E-24TD
  • Cisco 7600 RSP720-10GE
  • Cisco 4500 WS-X4516-10GE
  • Cisco WS-C3750E-48PD
  • Cisco WS-C3750E-24PD
  • Cisco WS-C3560E-12SD
  • Cisco WS-C3750E-24TD
  • Cisco 3100 WS-CBS3120X-S
  • Cisco 6500 WS-X6716-10G-3C
  • Cisco 4500 WS-X45-SUP6L-E
  • Cisco WS-X4908-10GE
  • Cisco 3100 WS-CBS3110X-S-I
  • Cisco 6500 WS-X6716-10G-3C
  • Cisco 6500 WS-X6708-10G-3C
  • Cisco WS-C3560E-48PDF
  • Cisco 4900 WS-C4928-10GE
  • Cisco 6500 VS-S720-10G-3CXL
  • Cisco 7600 WS-X6708-10G-3CXL
  • Cisco Nexus 7000 N7K-M108X2-12L
  • Cisco WS-C3560E-12D
  • Cisco RFGW-X4516-10GE
