Genuine Cisco X2-10GB-ZR

Home > OEM > Cisco >

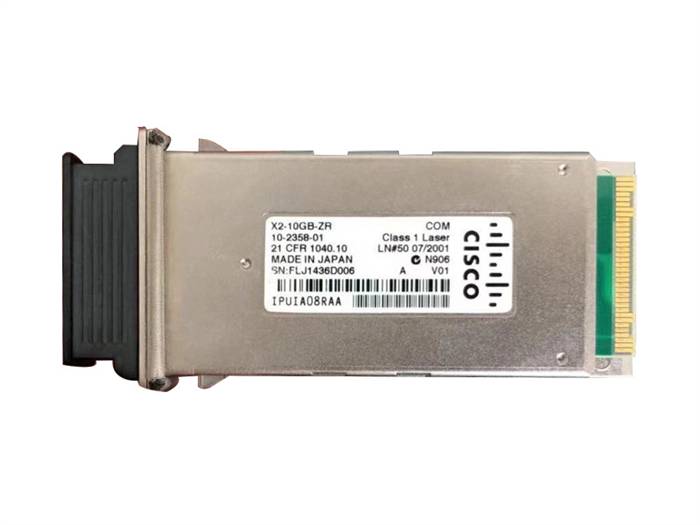

Cisco X2-10GB-ZR 10GBASE-ZR X2 Module for SMF

Our Price: $1,400.00

Warranty: 1 Year Warranty
Availability: Call

Product Code: X2-10GB-ZR

Qty:

Description

The Cisco 10GBASE X2 modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Main features of Cisco 10GBASE X2 modules include:

Support 10GBASE Ethernet
Hot-swappable input/output device plugs into an Ethernet X2 port of a Cisco switch or router to link the port with the network
Provides flexibility of interface choice
Supports “pay-as-you-populate” model
Supports the Cisco quality identification (ID) feature that enables a Cisco switch or router to identify whether the module is certified and tested by Cisco
Has optical interoperability with respective 10GBASE Xenpak, 10GBASE XFP and 10GBASE SFP+ modules on the same link

Cisco X2-10GB-ZR

Supports link lengths of up to about 80 km on SMF. This interface is not part of the 10 Gigabit Ethernet standard but is built according to Cisco optical specifications.

Specifications

Product Number: X2-10GB-ZR
Description: Cisco 10GBASE-ZR X2 Module for SMF
Connectors: Dual SC/PC connector
Wavelength: 1550nm
Cable Type: SMF
Cable Distance: 80km
Transmit Power (dBm):

Maximum: 4.0
Minimum: 0

Receive Power (dBm):

Maximum: -7.0
Minimum: -24.0

Transmit Wavelength Range (nm): 1530 to 1565
Receive Wavelength Range (nm): 1530 to 1565
Dimensions (D x W x H): 91mm x 36mm x 13.46mm
Operating temperature range: Commercial temperature range (COM): 0 to 70°C (32 to 158°F)
Storage temperature range: -40 to 85°C (-40 to 185°F)
Power Consumption: 4W

Platform Support

Cisco X2 modules are supported on Cisco switches and routers.
Cisco 7600 WS-X6708-10G-3C
Cisco 6500 WS-X6708-10G-3CXL
Cisco 6500 WS-X6708-10G-3C
Cisco WS-C3560E-48TD
Cisco 6500 VS-S720-10G-3CXL
Cisco 3100 WS-CBS3130X-S
Cisco 6500 WS-X6716-10G-3CXL
Cisco WS-C4900M
Cisco 4900 WS-C4948-10GE
Cisco 4500 WS-X45-SUP6-E
Cisco 4500 WS-X4013+10GE
Cisco WS-C3750E-48PDF
Cisco WS-C3750E-48TD
Cisco 6500 VS-S720-10G-3C
Cisco WS-C3560E-48PD
Cisco 4500 WS-X4606-X2-E
Cisco 4900 ME-4924-10GE
Cisco 6500 WS-X6708-10G-3CXL
Cisco 6500 WS-X6716-10G-3CXL
Cisco WS-C3560E-24PD
Cisco 6500 VS-S720-10G-3C
Cisco WS-X4904-10GE
Cisco WS-C3560E-24TD
Cisco 7600 RSP720-10GE
Cisco 4500 WS-X4516-10GE
Cisco WS-C3750E-48PD
Cisco WS-C3750E-24PD
Cisco WS-C3560E-12SD
Cisco WS-C3750E-24TD
Cisco 3100 WS-CBS3120X-S
Cisco 6500 WS-X6716-10G-3C
Cisco 4500 WS-X45-SUP6L-E
Cisco WS-X4908-10GE
Cisco 3100 WS-CBS3110X-S-I
Cisco 6500 WS-X6716-10G-3C
Cisco 6500 WS-X6708-10G-3C
Cisco WS-C3560E-48PDF
Cisco 4900 WS-C4928-10GE
Cisco 6500 VS-S720-10G-3CXL
Cisco 7600 WS-X6708-10G-3CXL
Cisco Nexus 7000 N7K-M108X2-12L
Cisco WS-C3560E-12D
Cisco RFGW-X4516-10GE
