Brocade XBR-000160 8G FC SFP+ SWL Transceiver, 57-1000046-01
Genuine Brocade XBR-000160 8G FC SFP+ SWL Transceiver Module, 57-1000046-01

Our Price: $100.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: XBR-000160
Qty:

Description

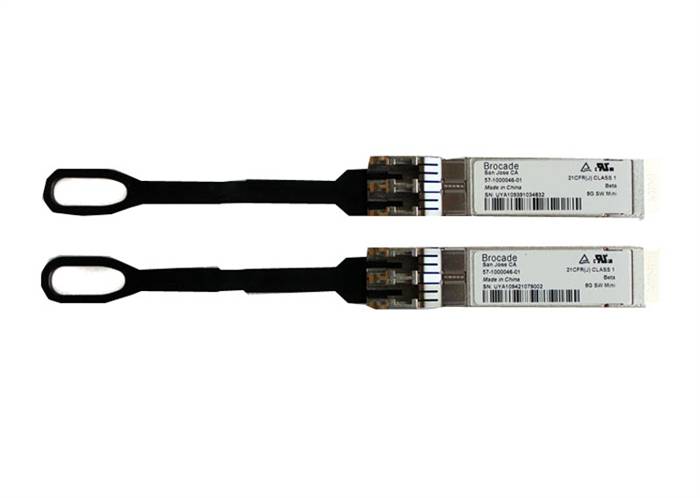

The Brocade XBR-000160 8G FC SFP+ SWL Transceiver Module is a Duplex SFP transceiver for optical communications, rated for distances up to 150m and a maximum bandwidth of 8.5Gbps. The XBR-000160 transceiver operates at 850nm wavelength. Brocade 8G FC SFP+ SWL Transceiver Module, 57-1000046-01, 1-Pack, 850 nm, LC Single-mode, Maximum Distance: 150 m, support high-speed serial links over single-mode optical fiber at signaling rates up to 8 Gbit/sec.

Features
  • Up-to 150m over SMF @ 8.5Gbps
  • 850nm Duplex SFP Transceiver
  • 0°C - 70°C Operating Case Temperature
  • SFF-8724 Digital optical monitoring
  • Hot-swappable for SFP LC ports
  • Brocade standard warranty
  • End-to-end compatibility within Brocade platform
  • SFP MSA / IEEE Std 802.3
  • Brocade XBR-000160 is RoHS compliant
Specifications
  • Brocade Ordering Part Number: XBR-000160
  • Manufacturing Part Number: 57-1000046-01
  • Device Type: SFP+
  • Data Rate: 8Gbps
  • Wavelength: 850nm
  • Distance: 150m
  • Connector: Duplex LC
  • Cable Type: MMF
  • DDMI: Yes
  • Operating Temperature Range: 0 to 70°C (32 to 158°F)
Platform Support
  • Brocade DCX-4S
  • Brocade 7800
  • Brocade DCX 8510
  • Brocade 5100
  • Brocade DCX
  • Brocade 5300
  • Brocade 6510/ 6520
  • Brocade 6740
  • Brocade 300
  • Brocade 6505
  • Brocade 7840
  • Brocade Encryption

Brocade® Transceiver Support Matrix
