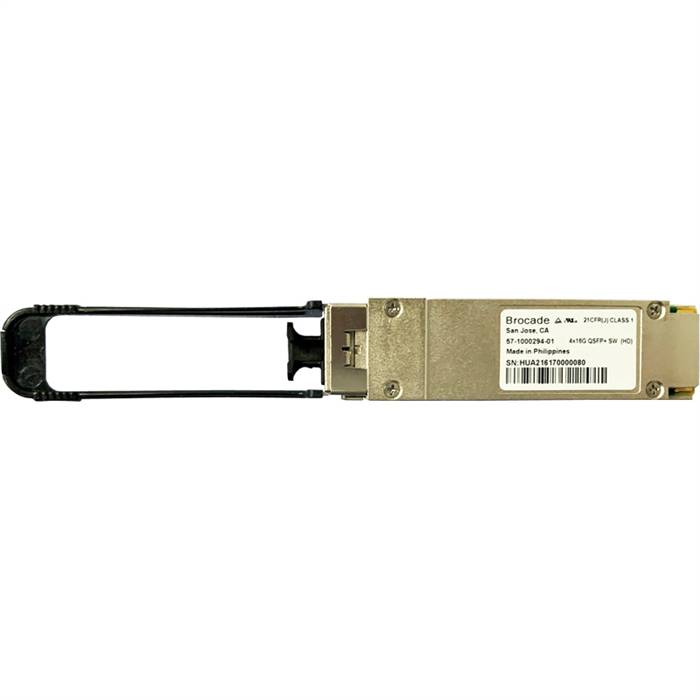

Brocade XBR-000245 4x16G FC QSFP+ SWL Transceiver, 57-1000294-01
Genuine Brocade XBR-000245 - 57-1000294-01

Our Price: $320.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: XBR-000245
Qty:

Description

The Brocade XBR-000245 4x16G Fibre Channel transceiver is a QSFP+ transceiver for optical communications, rated for distances up to 100m and a maximum bandwidth of
10Gbps. The XBR-000245 transceiver operates at 850nm wavelength. Brocade 4x16 Gbps Fibre Channel QSFP, QSFP transceiver module, QSFP Multi-mode, Maximum Distance: 100 m, Extended Long Wavelength: 850 nm, Fibre Channel: 4x14.025 Gbps line speed, full duplex, tri-speed (4x14.025 Gbps, 4x8.5 Gbps, and 4x4.25 Gbps)

Specifications
  • Brocade Ordering Part Number: XBR-000245
  • Manufacturing Part Number: 57-1000294-01
  • Device Type: 4x16G FC QSFP+
  • Max Data Rate: 64Gbps
  • Wavelength: 850nm
  • Max Distance: 100m
  • Connector: MTP 12-fiber
  • Cable Type: MMF
  • DDMI: Yes
  • Operating Temperature Range: 0 to 70°C (32 to 158°F)
Platform Support
  • Brocade X6
  • Brocade FC32-64
  • Brocade G630
  • Brocade G620
  • Brocade DCX8510

BrocadeŽ Transceiver Support Matrix
