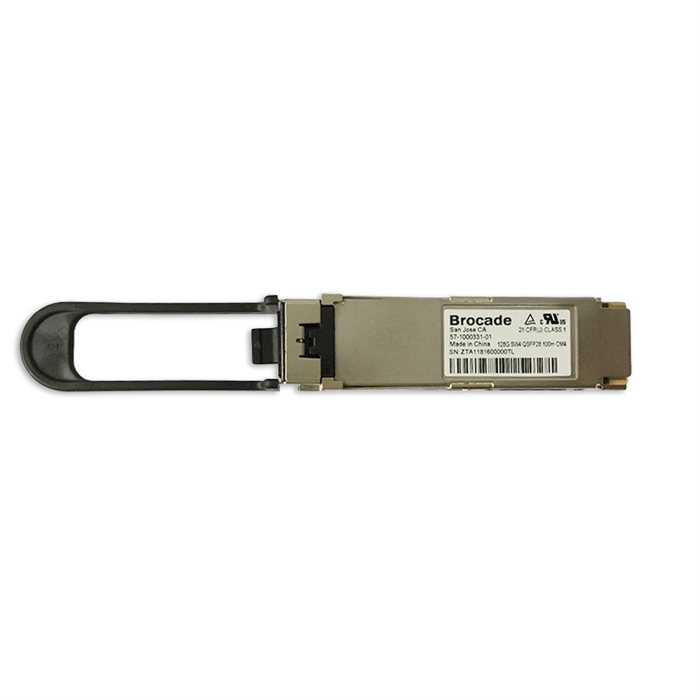

Brocade XBR-000268 128G (4x32Gb) SW4 QSFP128 100m OM4 X6 Module, 57-1000331-01
Genuine Brocade XBR-000268 128G (4x32Gb) SW4 QSFP128 100m OM4 X6, 57-1000331-01

Our Price: $1,200.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: XBR-000268
Qty:

Description

The Brocade 128 Gbps Short Wavelength (SWL) Quad Small Form- Factor Pluggable (QSFP), part of the Brocade family of optical transceivers, are optimized to fully leverage Brocade Gen 6 backbone and switch products. Together, these optical transceivers provide state-of-the-art performance, helping IT organizations achieve high levels of infrastructure consolidation while expanding the capabilities of their applications and services.

General
  • Device Type:  QSFP28 transceiver module
  • Form Factor:  Plug-in module
Networking
  • Connectivity Technology:  Wired
  • Cabling Type:  Fibre Channel
  • Data Link Protocol:  128Gb Fibre Channel (Short Wave)
  • Data Transfer Rate:  112.2 Gbps
  • Optical Wave Length:  840-860 nm
  • Max Transfer Distance:  328 ft
  • Features:  Hot swap module replacement
Expansion / Connectivity
  • Interfaces:  1 x 128Gb Fibre Channel (short wave) - MPO multi-mode female x 2
Miscellaneous
  • Compliant Standards:  UL, EN 60950, RoHS, EN 60825-1, MSA SFF-8472, CDRH Class 1
Platform Support
  • Brocade X7
  • Brocade X6
  • Brocade FC32-64
  • Brocade G630
  • Brocade G620
Dimensions & Weight
  • Width:  0.7 in
  • Depth:  2.8 in
  • Height:  0.3 in
Environmental Parameters
  • Min Operating Temperature:  -40 °F
  • Max Operating Temperature:  185 °F

BrocadeŽ Transceiver Support Matrix
