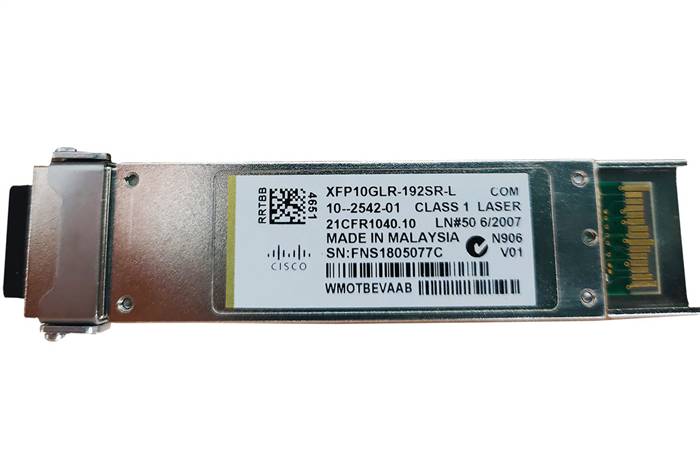

Cisco XFP10GLR-192SR-L Multirate 10GBASE-LR/-LW and OC-192/STM-64 SR-1 XFP Module for SMF, low power (1.5W)
Genuine Cisco XFP10GLR-192SR-L

Our Price: $200.00
Warranty: 1 Year Warranty
Availability: Call


Product Code: XFP10GLR-192SR-L
Qty:

Description

The Cisco XFP Module offers customers a variety of 10 Gigabit Ethernet and Packet-over-SONET/SDH (POS) connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Main features of the Cisco XFP Module include:
  • Supports 10GBASE Ethernet and OC-192/STM-64 data rates
  • Hot-swappable input/output device plugs into a XFP port of a Cisco Systems® router to link the port with the network
  • Provides flexibility of interface choice
  • Supports “pay-as-you-populate” model
  • Supports the digital optical monitoring capability
  • Supports the Cisco quality identification (ID) feature that helps enable a Cisco switch or router to identify whether the module is a Cisco certified and tested XFP
  • Supports optical interoperability with respective Cisco 10GBASE XENPAK and X2, and SFP+ modules on the same link

Cisco Multirate 10GBASE-LR, 10GBASE-LW and OC-192/STM-64 SR-1 XFP Module for SMF

The multirate XFP supports both 10GBASE-LR and 10GBASE-LW Ethernet applications and OC-192/STM-64 Short-Reach (SR-1) POS applications. Cisco offers both common and industrial temperature range products.

Specifications
  • Product Number: XFP10GLR-192SR-L
  • Description: Cisco Multirate 10GBASE-LR/-LW and OC-192/STM-64 SR-1 XFP Module for SMF, low power (1.5W)
  • Connectors: Dual LC/PC connector
  • Wavelength: 1310nm
  • Cable Type: SMF
  • Cable Distance:
    • 10 km (10 Gigabit Ethernet)
    • 2 km (OC-192/STM-64 SR-1)
  • Transmit Power (dBm):
    • Maximum: +0.5 @ 10GBASE-LR/-LW 1310-nm SMF, -1.0 @ OC-192/STM-64 SR-1 1310-nm SMF
    • Minimum: -8.2 @ 10GBASE-LR/-LW 1310-nm SMF, -6.0 @ OC-192/STM-64 SR-1 1310-nm SMF
  • Receive Power (dBm):
    • Maximum: +0.5 @ 10GBASE-LR/-LW 1310-nm SMF, -1.0 @ OC-192/STM-64 SR-1 1310-nm SMF
    • Minimum: -14.4 @ 10GBASE-LR/-LW 1310-nm SMF, -11.0 @ OC-192/STM-64 SR-1 1310-nm SMF
  • Transmit Wavelength (nm):
    • 10GBASE-LR/-LW 1310-nm SMF: 1260 to 1355
    • OC-192/STM-64 SR-1 1310-nm SMF: 1290 to 1330
  • Receive Wavelength (nm): 1260 to 1565
  • Dimensions (L x W x H): 71 x 18.5 x 8.5 mm
  • Operating temperature range: Commercial temperature range (COM): 0 to 70°C (32 to 158°F)
  • Storage temperature range: -40 to 85°C (-40 to 185°F)
  • Power Consumption (W): 1.5

Platform support
Cisco XFP modules are supported on Cisco switches and routers.
  • Cisco ASR 9000 A9K-2T20GE-E
  • Cisco 7600 76-ES+XT-4TG3C
  • Cisco ASR 9000 A9K-MPA-4X10GE
  • Cisco 7600-ES20-10G3CXL
  • Cisco CRS 14X10GBE-WL-XFP
  • Cisco SCE8000-2X10GE-E
  • Cisco ME-3600X-24CX-M
  • Cisco SPA-OC192POS-XFP
  • Cisco 7600 76-ES+XC-20G3CXL
  • Cisco ASR 9000 A9K-MPA-2X10GE
  • Cisco ASR 9000 A9K-2T20GE-B
  • Cisco ASR 903 A900-IMA1X
  • Cisco SPA-1X10GE-L-V2
  • Cisco 7600-ES+4TG3CXL
  • Cisco 7600 76-ES+XT-4TG3CXL
  • Cisco ASR 9000 A9K-8T/4-L
  • Cisco 7600-ES20-10G3C
  • Cisco SCE8000-4X10GE-E
  • Cisco ASR 9000 A9K-8T-E
  • Cisco CRS 20X10GBE-WL-XFP
  • Cisco 7600-ES+2TG3CXL
  • Cisco ASR 9000 A9K-8T-L
  • Cisco ASR 9000 A9K-4T-B
  • Cisco 7600-ES+4TG3C
  • Cisco ASR 9000 A9K-2T20GE-L
  • Cisco 7600 76-ES+XC-40G3CXL
  • Cisco 7600-ES+2TG3C
  • Cisco CRS 4-10GBE-WL-XFP
  • Cisco 7600 76-ES+T-2TG
  • Cisco ASR 9000 A9K-4T-E
  • Cisco ASR 9000 A9K-8T-B
  • Cisco ASR 9000 A9K-4T-L
  • Cisco 7600 76-ES+T-4TG
  • Cisco 7600 76-ES+XT-2TG3C
  • Cisco 7600 76-ES+XC-20G3C
  • Cisco ASR 9000 A9K-8T/4-B
  • Cisco 7600 76-ES+XC-40G3C
  • Cisco CRS 8-10GBE-WL-XFP
  • Cisco CRS 2-10GE-WL-FLEX
  • Cisco ME4600-UMX-4x10GE
  • Cisco 7600 76-ES+XT-2TG3CXL
  • Cisco SPA-1X10GE-WL-V2
  • Cisco ASR 9000 A9K-8T/4-E
