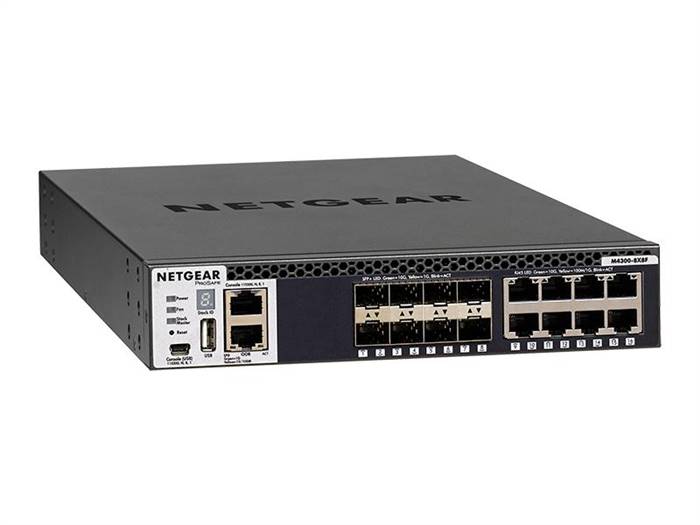

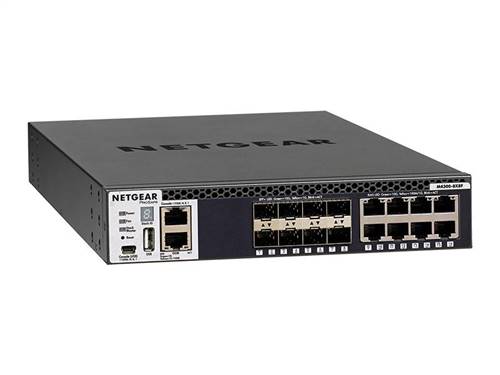

The Netgear XSM4316S-100NES is a 16-port, Layer 3 fully managed switch (also known as the M4300-8X8F) featuring 8x 10GBASE-T ports and 8x 10G SFP+ ports, offering a 320 Gbps non-blocking switching fabric and supports static, policy-based, and dynamic routing for SMB core, server/storage aggregation, and spine/leaf deployments. It's a half-width, rack-mountable unit designed for flexibility and high performance.

Key Specifications:

• Model: Netgear M4300-8X8F (XSM4316S)
• Ports:
• 8 x 10GBASE-T (RJ45)
• 8 x 10G SFP+ (fiber)
• Switching Fabric: 320 Gbps (non-blocking)
• Forwarding Rate: 238 Mpps
• Layer Support: Layer 2, Layer 3, Layer 4
• Management: Web interface (GUI), CLI, SNMP
• Security: DoS attack prevention, DHCP snooping, RADIUS
• Performance: 16 Mb packet buffer, Jumbo Frames up to 9000 Bytes
• Form Factor: Half-width, rack-mountable 1U
• Stacking: Virtual Chassis stacking for redundancy and high availability
• Power: Internal power supply, 110 to 240 VAC input
• Certifications: CE, FCC, RCM, VCCI, BSMI, CCC

Key Features:

• High Performance: 10-Gigabit aggregation for demanding environments.
• Flexible Topologies: Ideal for spine/leaf architectures with mix-and-match stacking capabilities.
• Redundancy: Virtual Chassis stacking offers non-stop forwarding and hitless failover.
• AV Integration: NETGEAR IGMP Plus™ and AV User Interface simplify AV installations.
• Industry Standard: Supports standard protocols and management interfaces.
• Cost-Effective: Offers powerful features for its price point.

Compatible Transceivers

The XSM4316S-100NES is a Netgear M4300-8X8F switch, which uses 10G SFP+ transceivers.
