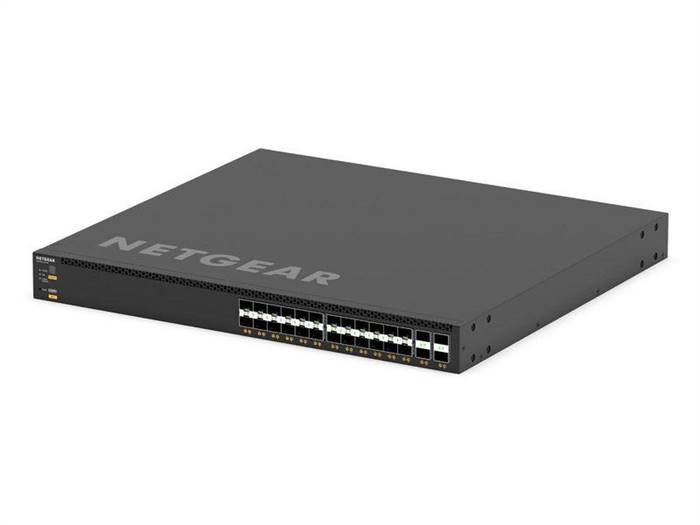

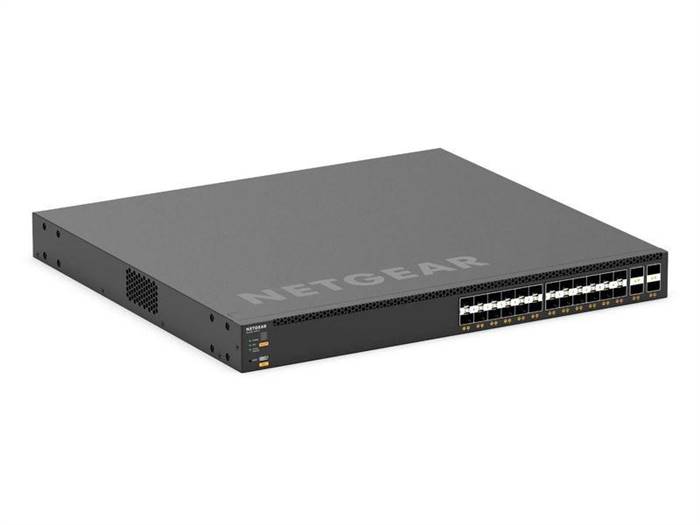

The Netgear XSM4328FV-100NES (M4350-24F4V model) is a fully managed, Layer 3 stackable network switch with 24 10G SFP+ ports and 4 25G SFP28 ports designed for high-speed fiber connectivity, enterprise environments, and AV over IP applications.

Key Specifications

• Port Configuration:
• 24 x 10GBASE-X SFP+ ports.
• 4 x 25GBASE-X SFP28 uplink ports.

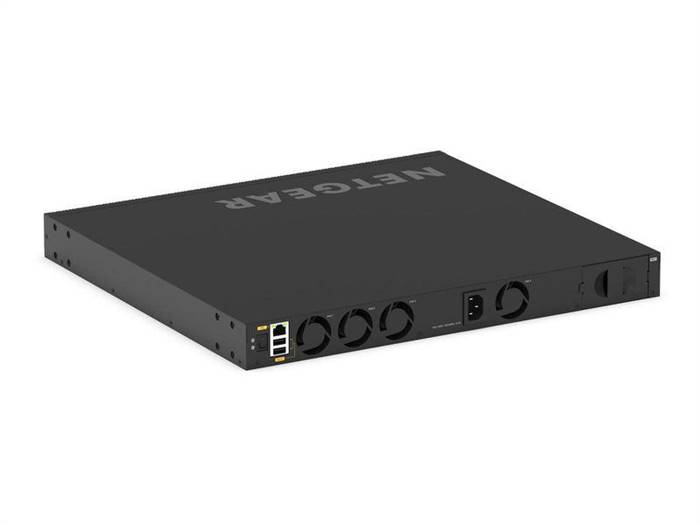

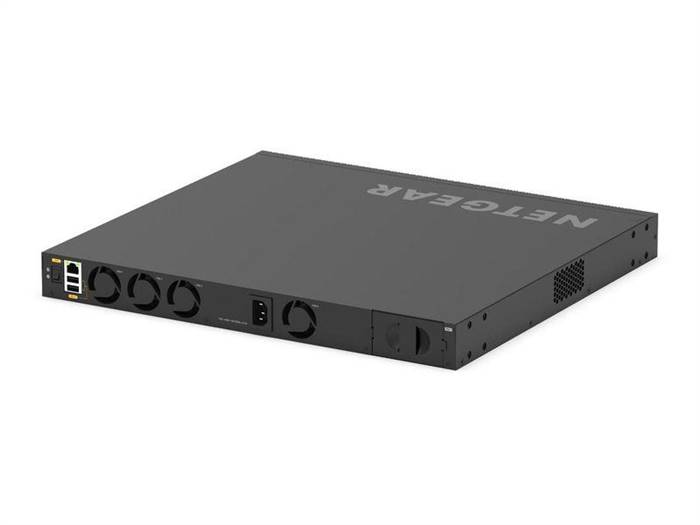

• Additional ports: 1G Ethernet service port, RJ45 RS232 console, Mini-USB console, and a USB-A port for storage.
• Performance:
• Switching Capacity: 680 Gbps.
• Forwarding Rate: 505.92 Mpps (Million packets per second).
• Packet Buffer Size: 32 MB.
• Latency: Ultra-low latency, with < 0.67 µs average latency for 25 Gbps speeds.
• Power:
• Internal Power Supply: 240W.
• Redundancy: 1 slot for an optional modular power supply (e.g., APS920W) for 1+1 redundancy.
• Power Consumption: 119.3W typical consumption; 45.2W in standby mode.
• PoE Support: None (N/A).
• Management & Features:
• Type: Fully Managed, Layer 3 features including static, policy-based, and dynamic routing (OSPF, RIP, VRRP, PIM).
• Stackable: Supports Virtual Chassis stacking for up to 8 units using any 10G/25G port, providing non-stop forwarding (NSF) and hitless failover.
• AV over IP: Pre-configured for out-of-the-box AV-over-IP functionality with NETGEAR IGMP Plus™ and a dedicated AV user interface.
• Jumbo Frame Support: Yes, up to 12 KB.
• Physical:
• Form Factor: 1U rack-mountable, with options for standard and recessed mounting.
• Dimensions (W x D x H): 440 x 400 x 43.2 mm (17.32 x 15.75 x 1.7 in).
• Weight: 6.25 kg (13.78 lb).
• Cooling: Intelligent fans configurable in "Quiet Mode" to minimize noise (34.2dB @ 25ºC) or "Cool Mode" for maximum cooling.

Compatible Transceivers

The Netgear XSM4328FV-100NES switch has 24 SFP+ ports (for 10G connections) and 4 SFP28 ports (for 25G connections), and is compatible with various 10G SFP+ transceivers, 25G SFP28 transceivers and, direct attach cables (DACs).
