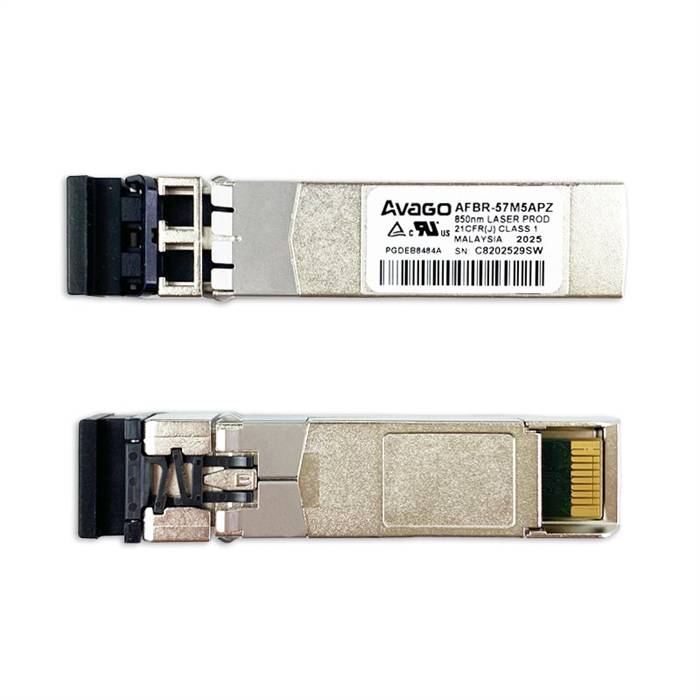

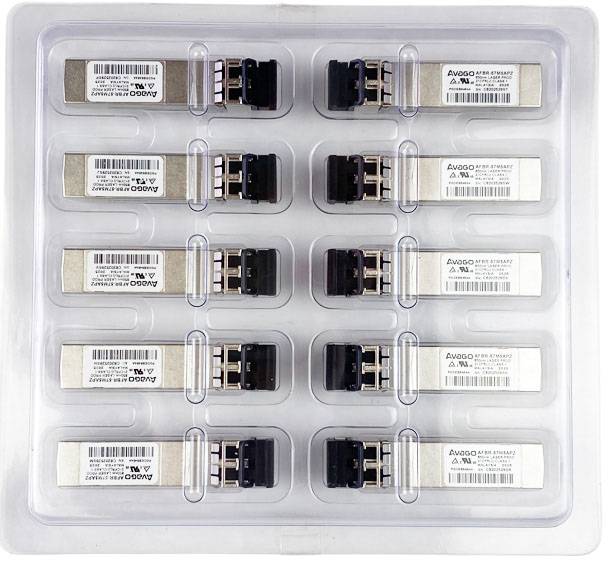

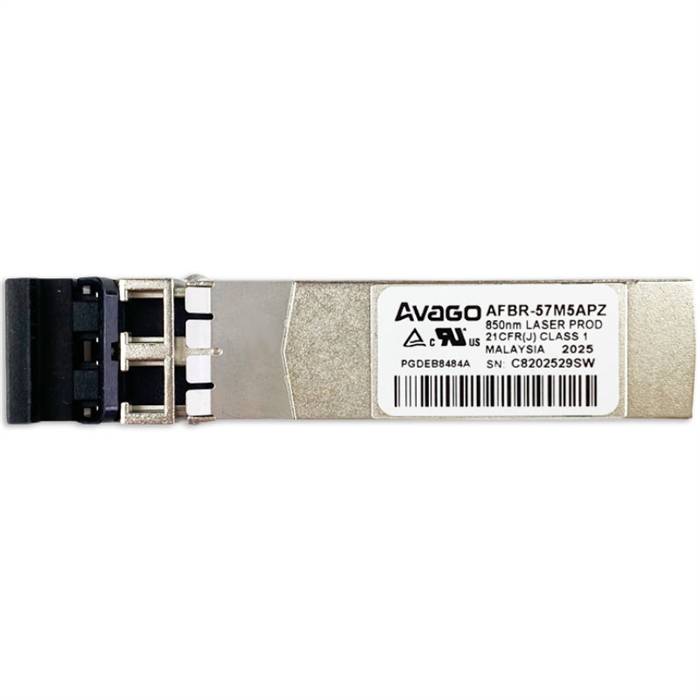

Avago 850 nm, 2.125/1.0625 and 1.25 GBd Ethernet, 3.3 V, SFP Optical Transceiver

AFBR-57M5APZ - Genuine Avago AFBR-57M5APZ

Alternative Views:

Our Price: $55.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: AFBR-57M5APZ

Qty:

Description

The Avago AFBR-57M5APZ optical transceiver supports high-speed serial links over multimode optical fiber at signaling rates up to 2.125 Gb/s. Compliant with Small Form Pluggable (SFP) Multi Source Agreement (MSA) mechanical and electrical specifications for LC Duplex transceivers, ANSI Fibre Channel FC-PI, FC-PI-2 and compliant with IEEE 802.3 for gigabit applications. The part is electrically interoperable with SFP conformant devices

Features

Fully RoHS Compliant
Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
Real time monitoring of:

Transmitted optical power
Received optical power
Laser bias current
Temperature
Supply voltage

Wide temperature and supply voltage operation (-10°C to 85°C) (3.3 V ± 10%)
Transceiver specifications per SFP (SFF-8074i) MultiSource Agree-ment and SFF-8472 (revision 9.3)
– 2.125 GBd Fibre Channel operation for FC-PI 200-M5-SN-I and 200-M6-SN-I
– 1.0625 GBd Fibre Channel operation for FC-PI 100-M5-SN-I and 100-M6-SN-I
– 1.25 GBd operation for IEEE 802.3 Gigabit Ethernet 1000Base-SX
Link lengths at 2.125 GBd: 300m with 50µm MMF, 150m with 62.5µm MMF
Link lengths at 1.0625 GBd: 500m with 50µm MMF, 300 m with 62.5µm MMF
Link lengths at 1.25 GBd: 2 to 550m with 50µm MMF, 2 to 275 m with 62.5µm MMF
LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A)
850 nm Vertical Cavity Surface Emitting Laser (VCSEL) source technology
IEC 60825-1 Class 1/CDRH Class 1 laser eye safe

Applications

Fibre channel systems

Director class switches
Fabric switches
HBA cards

Disk and tape drive arrays

Specifications

Product: Transceivers
Wavelength: 850 nm
Data Rate: 2.125 GBd, 1.0625 GBd, 1.25 GBd
Fiber Type: Multimode
Rise Time: 150 ps
Operating Supply Voltage: 3.3 V
Minimum Operating Temperature: - 10 C
Maximum Operating Temperature: + 85 C
