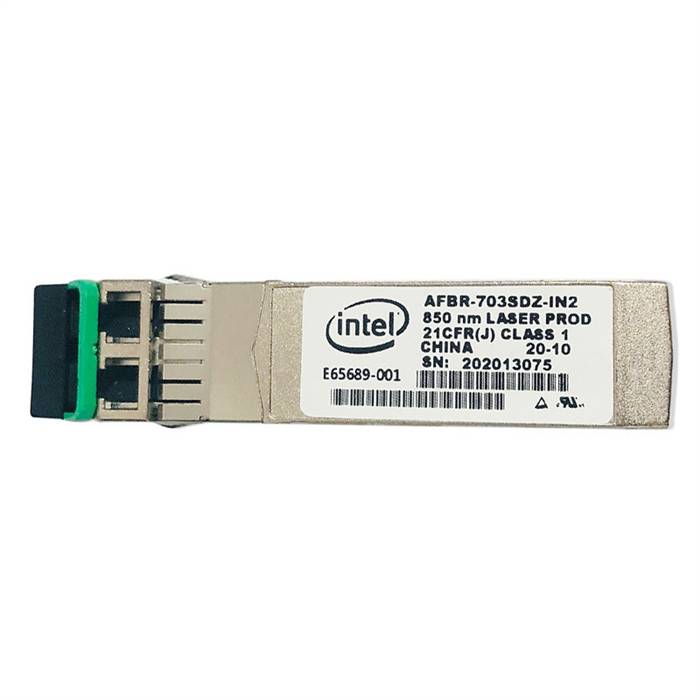

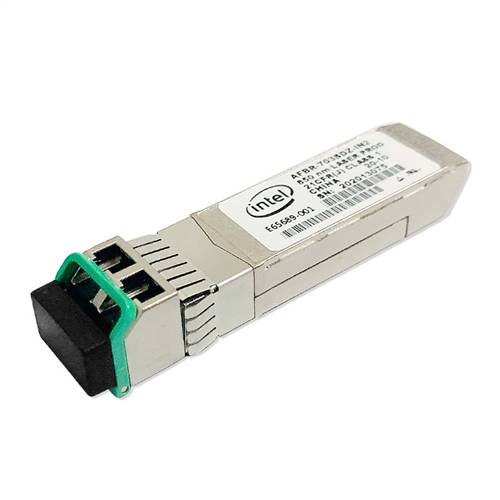

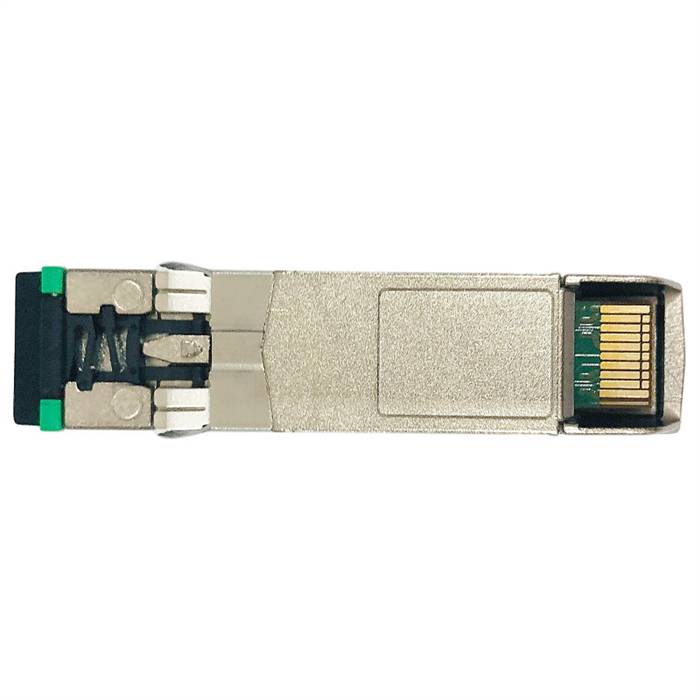

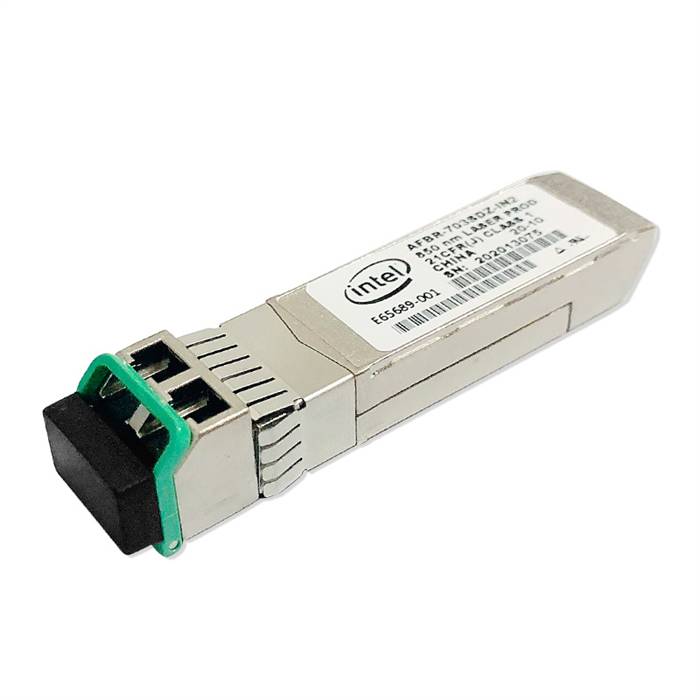

Intel AFBR-703SDZ-IN2 SFP Transceiver 2-Rate 1G/10G SFP+ SR

Features

• Operating Data Rate up to 10.3Gbps
• Single 3. 3V Power Supply and TTL Logic Interface
• Hot Pluggable
• 850nm VCSEL Transmitter
• Reach:
• OM1 (62.5/125micron) 33m
• OM2 (50/125micron 400 MHz*km) 82m
• OM3 (50/125micron 2000 MHz*km) 300m
• OM4 (50/125micron 4700) 300m
• Operating Case Temperature
• Standard: 0?~+70?
• Industrial: -40?~+85?
• Compliant with MSA
• Compliant with IEEE 802.3ae 10GBASE-SR
• Digital Diagnostic Monitor Interface
• Compliant with SFF-8472
• RoHS 6 Compliant

Specifications

• Form Factor: SFP+
• TX Wavelength: 850nm
• Reach: 300m
• Cable Type: MMF
• Rate Category: 10GBase
• Interface Type: SR
• DDM: Yes
• Connector Type: Dual-LC
• Temperature: Commercial
• Power Budget: 5.1dB
• TX Power Min/Max: -6.00 t-1.00
• RX Power Min/Max: -11.1 t-1.00
