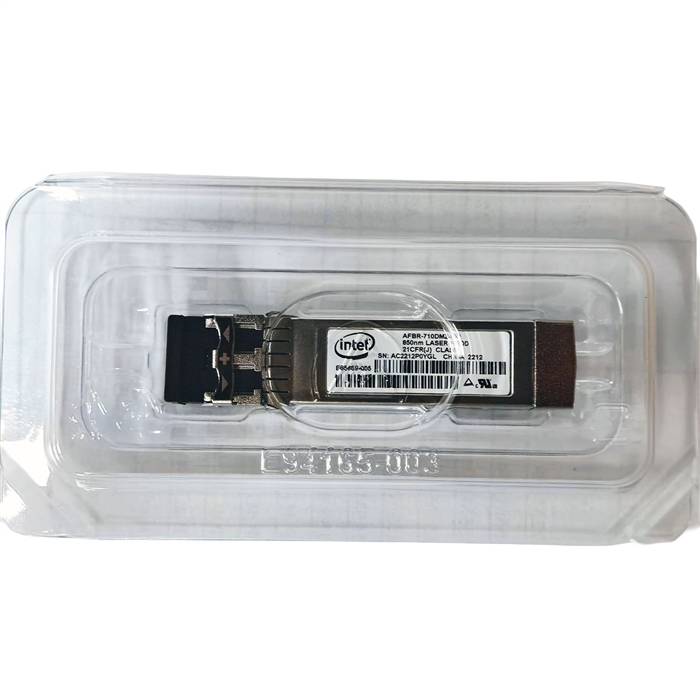

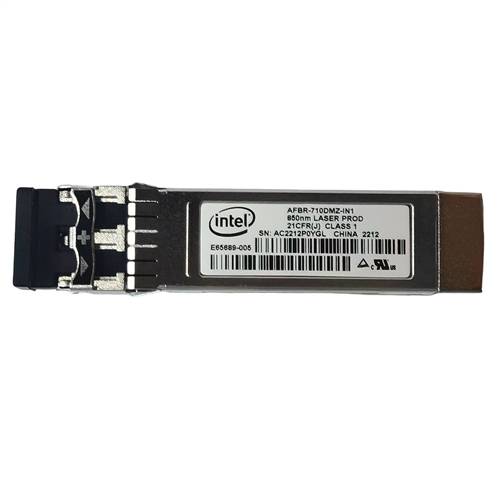

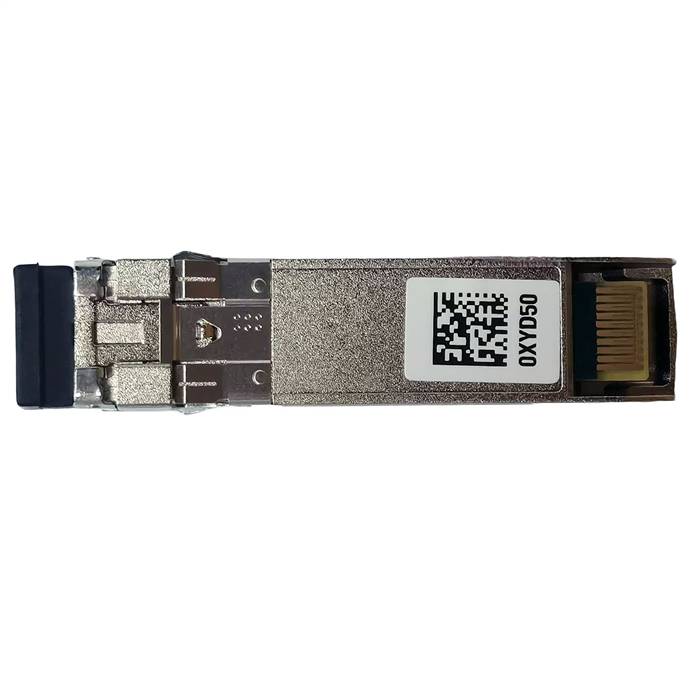

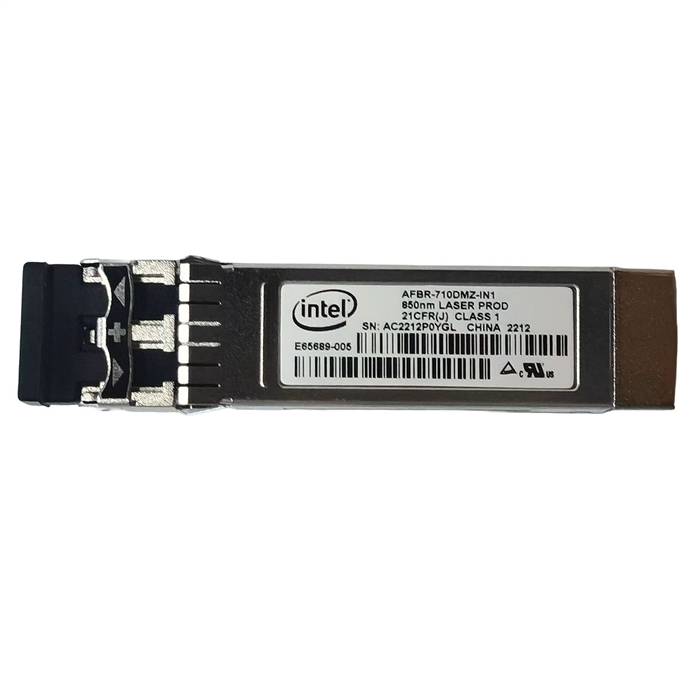

Intel AFBR-710DMZ-IN1 0XYD50 1G/10G Dual Rate (10GBase-SR & 1000Base-SX) 850nm Multimode Datacom SFP+ Optical Transceiver

The Intel AFBR-710DMZ-IN1 transceiver is part of a family of SFP+ products. This transceiver utilizes Avago's 850nm VCSEL and PIN Detector technology to provide an IEEE 10Gb Ethernet design compliant with the 10GBASE-SR/SW standard and allows the operation at 1.25GBd for Gigabit Ethernet application. The AFBR-710DMZ-IN1 transceiver is designed to enable 10Gb Ethernet equipment designs with very high port density based on the new electrical and mechanical specification enhancements to the well known SFP specifications developed by the SFF Committee. These specifications are referred to as SFP+ to recognize these enhancements to previous SFP specifications used for lower speed products.

Features

• Avago 850nm VCSEL source and Transmitter Optical Subassembly technology
• Avago PIN detector and Receiver Optical Subassembly technology
• Typical power dissipation 600mW
• Full digital diagnostic management interface
• Avago SFP+ package design enables equipment EMI performance in high port density applications with margin to Class B limits
• Flexibility in data rate selection through either hardware or software control

Specifications

• Optical interface specifications per IEEE 802.3ae 10GBASE-SR and 10GBASE-SW
• Compliant to the transmitter extinction ratio and the receiver sensitivity specs per IEEE 802.3 Gigabit Ethernet (1.25GBd) 1000BASE-SX
• Electrical interface specifications per SFF Committee SFF 8431 Specifications for Enhanced 8.5 and 10 Gigabit Small Form Factor Pluggable Module "SFP+"
• Management interface specifications per SFF Committee SFF 8431 and SFF 8472 Diagnostic Monitoring Interface for Optical Transceivers
• Mechanical specifications per SFF Committee SFF 8432 Improved Pluggable Formfactor "IPF"
• LC Duplex optical connector interface confirming to ANSI TIA/EA 604-10 (FOCIS 10A)
• Compliant to Restriction on Hazardous Substances (RoHS) per EU and China requirements
• Compliant to halogen free requirements
• Class 1 Eye safe per requirements of IEC 60825-1 / CDRH
