Avago AFCT-5710PZ Transceiver
Avago AFCT-5710PZ

Alternative Views:
Our Price: $120.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: AFCT-5710PZ
Qty:

Description

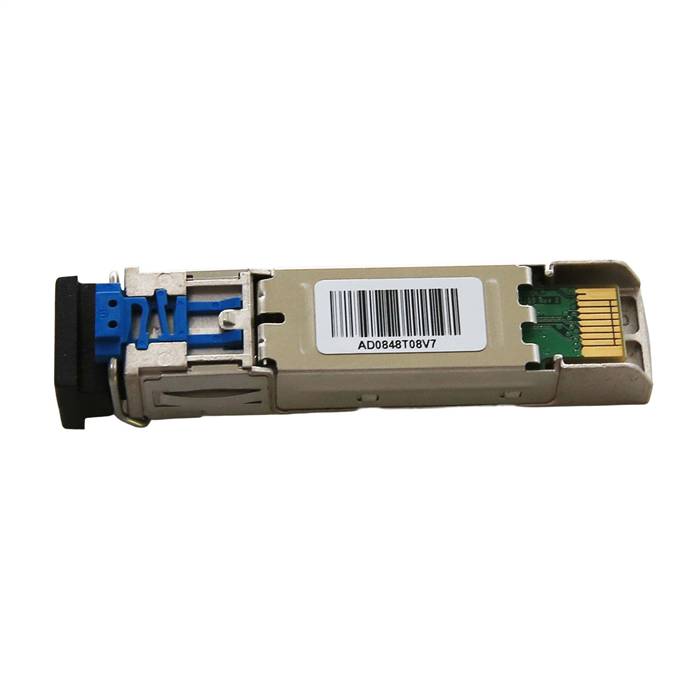

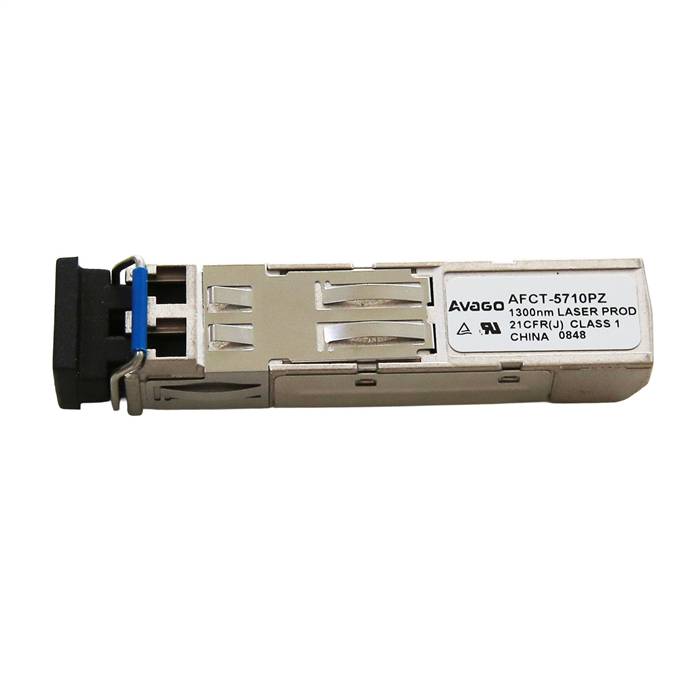

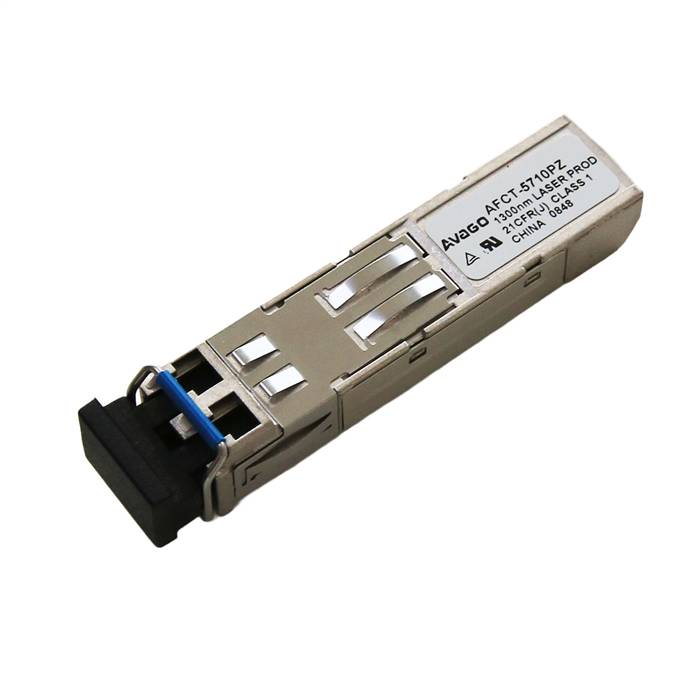

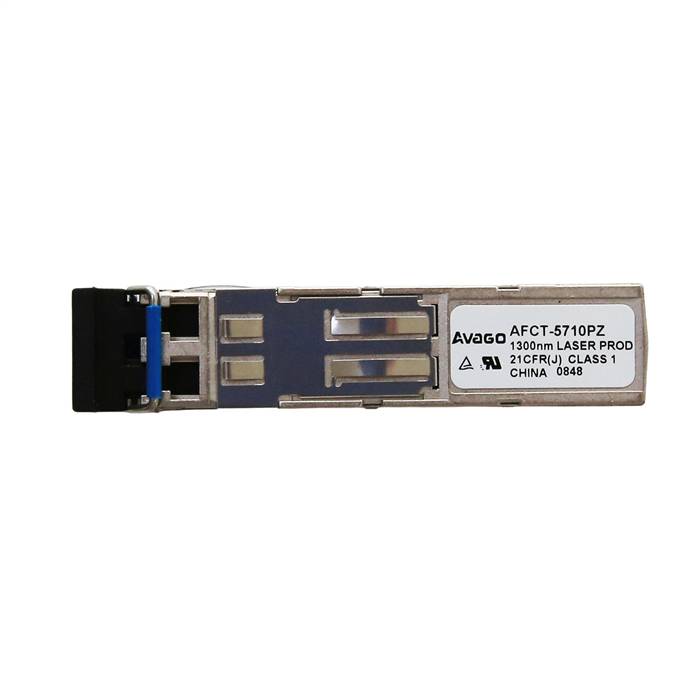

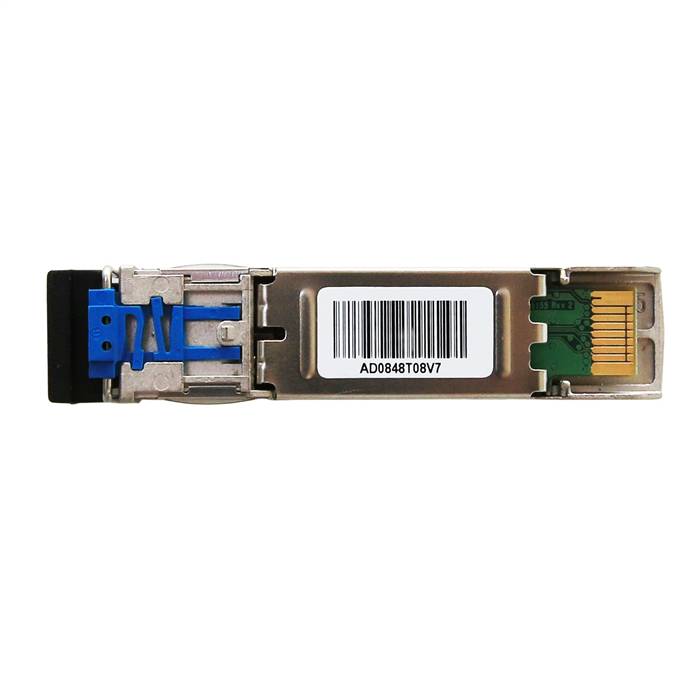

Avago AFCT-5710PZ SFP 1000BASE-LX 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

The Avago AFCT-5710PZ SFP transceiver supports up to 10km link lengths over LC duplex SMF fiber. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Specifications

  • Form Factor: SFP
  • Max. Data Rate: 1.25Gbps
  • Wavelength: 1310nm
  • Max. Cable Distance: 10km@SMF
  • Connector: Duplex LC
  • Media: SMF
  • Transmitter Type: FP
  • Receiver Type: PIN
  • DDM/DOM: Supported
  • Commercial Temperature Range: 0 to 70°C (32 to 158°F)
  • TX Power: -9.5 ~ -3dBm
  • Receiver Sensitivity: < -20dBm
  • Power Consumption: ≤1W
  • Receiver Overload: -3dBm
  • Protocols: IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
