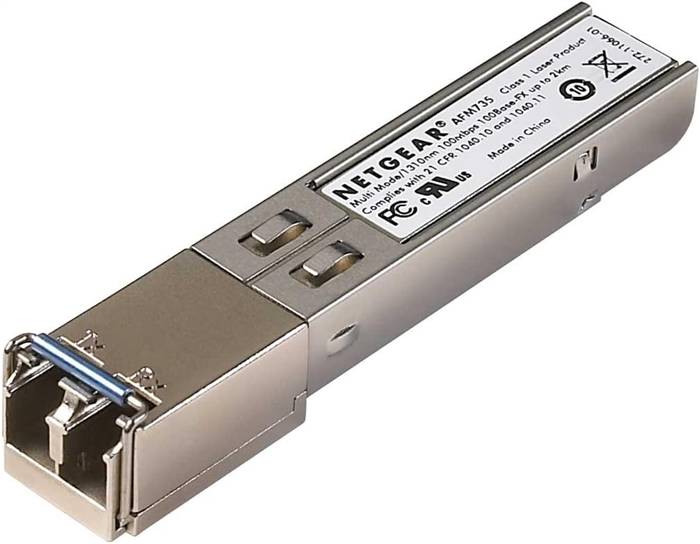

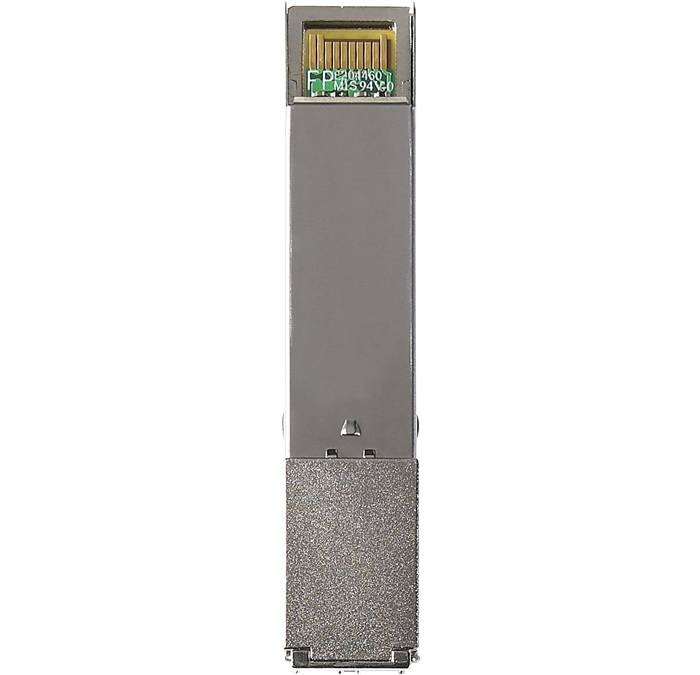

NETGEAR AFM735 Fiber 100BASE-FX SFP LC GBIC Module

The NETGEAR AFM735 SFP transceiver supports up to 2km link lengths over multi-mode fiber (MMF) using a wavelength of 1310nm via an LC connector. Featuring low power consumption, this industrial optic transceiver provides 100BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers, suitable for both outdoor and indoor deployments.

Specifications

• Form Factor: SFP
• Max Data Rate: 100Mbps
• Wavelength: 1310nm
• Max Cable Distance: 2km
• Connector: Duplex LC
• Optical Components: FP 1310nm
• Media: MMF
• DOM Support: Yes
• TX Power: -15~8dBm
• Receiver Sensitivity: < -32dBm
• Industrial Temperature Range: -40 to 85°C (-40 to 185°F)
• Protocols: IEEE802.3U, GR-468, MSA Compliant
