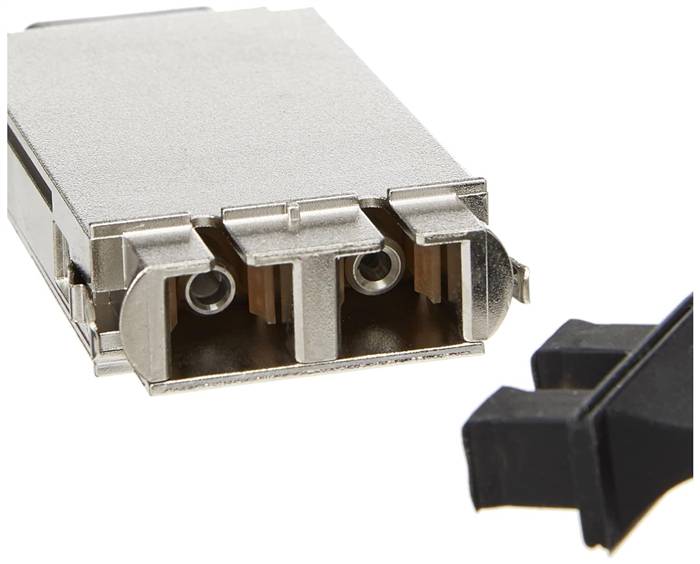

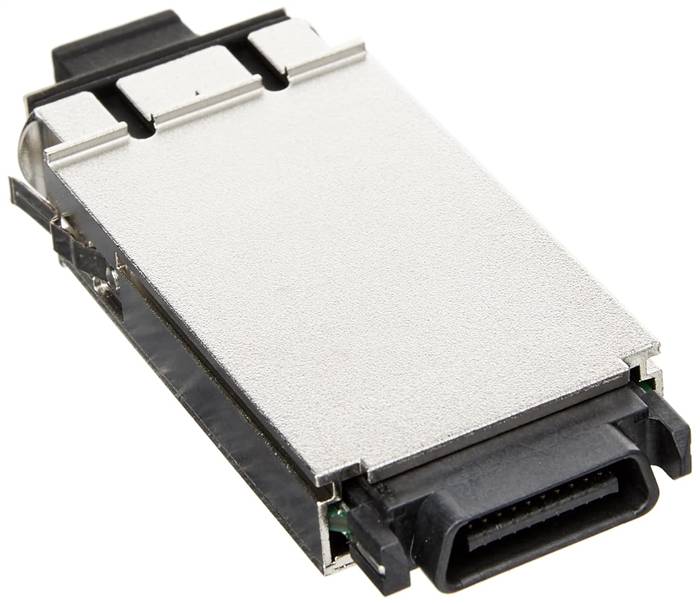

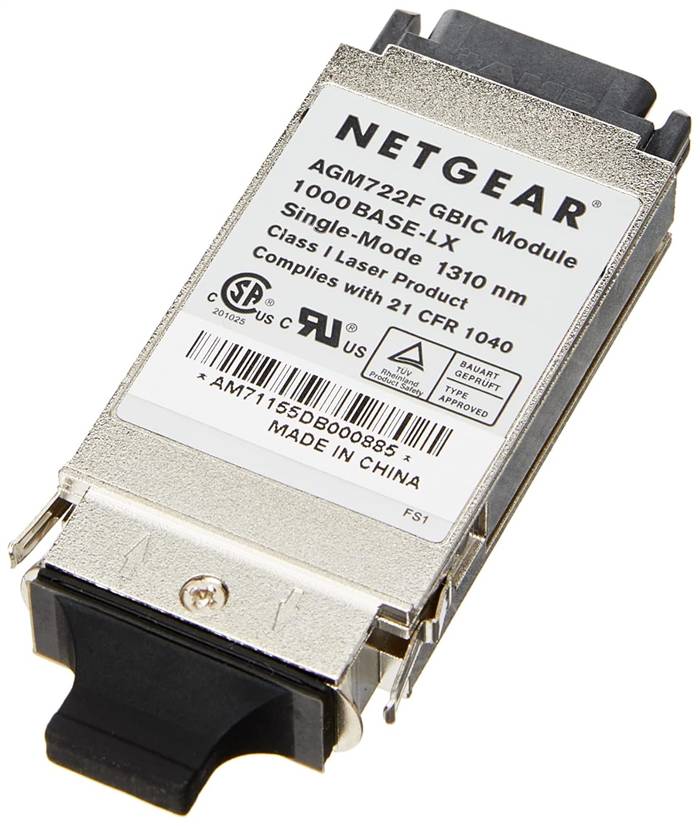

NETGEAR AGM722F Fiber 1000BASE-LX GBIC Module

This Netgear AGM722F GBIC transceiver provides 1000Base-LX throughput up to 10km over single-mode fiber (SMF) using a wavelength of 1310nm via an SC connector. It complies with Multi-Source Agreement (MSA) standards to provide seamless network integration. This transceiver is Trade Agreements Act (TAA) compliant.

Features

• Support Up to 1.25Gb/s data links
• Compliant with GBIC MSA standard
• Up to 10km on 9/125µm SMF
• FP laser transmitter and PIN photo-detector
• Hot-pluggable GBIC footprint
• Single +5V power supply
• Duplex SC connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free

Specifications

• Form Factor: GBIC
• Data Rate: 1.25Gb/s
• Wavelength: 1310 nm
• Fiber Type: SMF
• Max Distance: 10km
• Optical Components: FP/PIN
• Transmitter Power: -9 ~ -3 dBm
• Extinction ratio: > 9 dB
• Receiver Sensitivity: < -22 dBm
• Receiver Overload: > -3 dBm
• Connector: Duplex SC
• Digital Diagnostic Monitoring: No
• Environment
• Operating: 0°C to 70°C
• Storage: -40°C to 85°C
• Weight: 0.05 kg
