Cisco AIR-ANT-LOC-01 Aironet Hyperlocation Antenna

The hyperlocation antenna is a 32 element antenna design that provides 360 degree coverage around supported access points — currently the 3600 and 3700 series APs. It is designed to integrate into the Cisco Aironet Hyperlocation Module with Advanced Security (RM3010L) providing precise RF Angle of Arrival (AoA) information, allowing the operating system a much more granular approach to the location of a client device.

The hyperlocation antenna along with RM3010L helps in providing a location accuracy of less than a meter for a wireless clients, using WiFi and Bluetooth technology.

The hyperlocation antenna operates in both the 2.4 GHz and 5 GHz frequency ranges and is designed for indoor use.

The hyperlocation antenna, together with the hyperlocation module provides the following monitoring and security services:

• Cisco Context-Aware

• Cisco CleanAir
• Radio Resource Management (RRM)
• wIDS/wIPS
• Rogue detection
• 802.11ac capability at 20, 40 and 80 MHz operation
• Integrated Bluetooth Low Energy (BLE) Beacon capability
• External DART connector for location capability with the use of the Hyper-Location antenna.

System Requirements

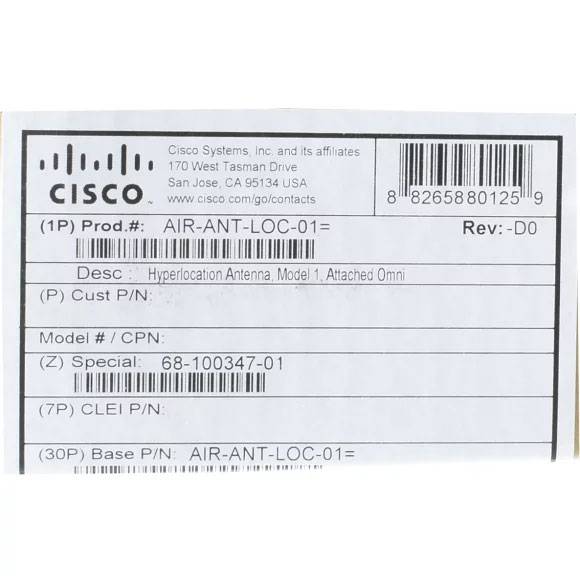

The hyperlocation antenna AIR-ANT-LOC-01= is designed for indoor use with Cisco Aironet 3600 and 3700 access point along with the Cisco Aironet Hyperlocation Module (AIR-RM3010L-UXK9=).
