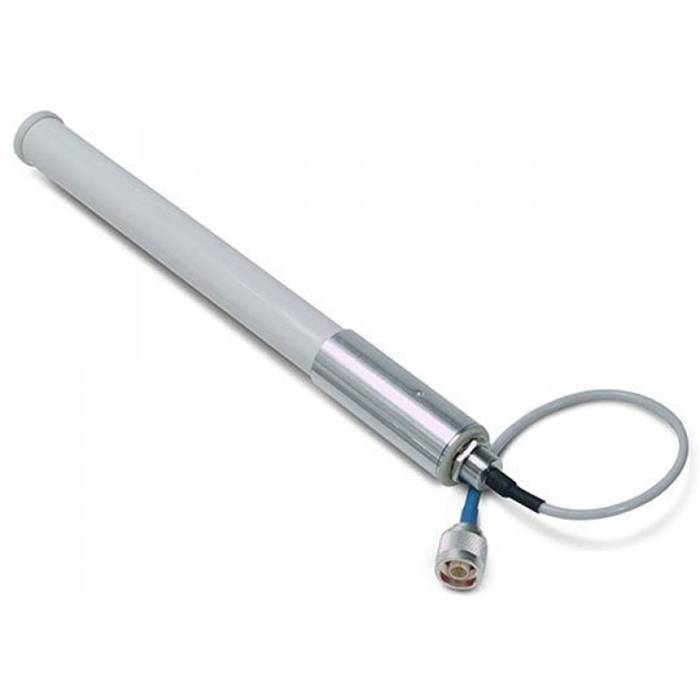

Cisco AIR-ANT24120 Aironet 12 dBi High Gain Omnidirectional Antenna

This document outlines the specifications and description of the 12-dBi high gain omnidirectional antenna AIR-ANT24120. This antenna operates in the 2400-2500 MHz band and is designed for use outdoors. The antenna is compatible with Cisco Aironet radio products utilizing a reverse-polarity TNC (RP-TNC) connector.

Technical Specifications

• Antenna type: Vertical colinear array, Omnidirectional
• Operating frequency range: 2400-2500 MHz
• Nominal input impedance: 50 ohms
• Nominal VSWR: 1.5:1
• Peak gain: 12 dBi
• Polarization: Linear, vertical
• Dimensions: 42 x 1.5 in (106 x 3.8 cm)
• Weight: 3 lb (1.36 kg)
• Connector type: RP-TNC plug
• Coax type: RG-213
• Environment: Outdoor
• Operating temperature range: -40°F to 158°F(-40°C to 70°C)
• Wind rating: 125 mph (201 kmh)
