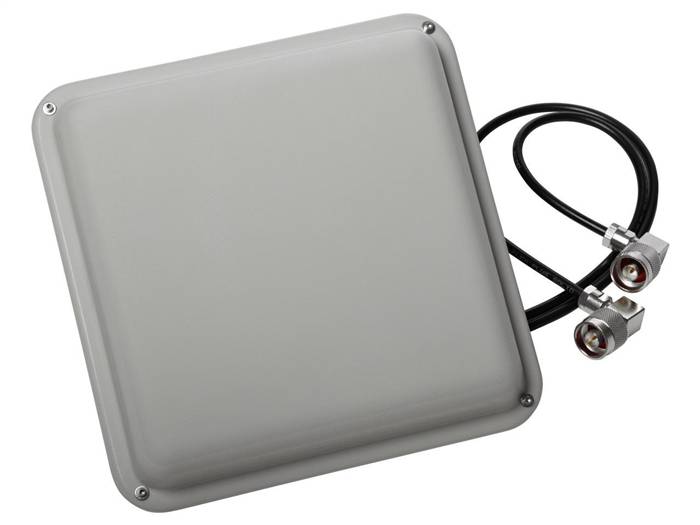

Cisco AIR-ANT2413P2M-N Aironet 2.4-GHz 13-dBi Directional Antenna

This document outlines the specifications for the Cisco Aironet AIR-ANT2413P2M-N 2.4-GHz 13-dBi 2-Port Directional antenna with N-type connectors and provides instructions for mounting it. The antenna operates in the 2.4-GHz frequency band and is designed for use in outdoor environments.

Technical Specifications

• Antenna type: 2-Element Patch Array
• Operating frequency range: 2400 to 2500 MHz
• Nominal input impedance: 50 Ohms
• Peak gain: 13 dBi
• Polarization: Linear, Dual
• Elevation plane 3-dB beamwidth: 30°
• Azimuth plane 3-dB beamwidth: 30°
• Sidelobe level: < -20 dBc
• Front-to-back ratio: > 25 dB
• Cable length and type
• 30 in. (76.2 cm)
• outdoor rated Coax
• Connector type: N Male
• Length: 7.8 in. (19.8 cm)
• Width: 7.8 in. (19.8 cm)
• Height: 1.2 in. (3 cm)
• Weight: 21.6 oz. (0.61 kg)
• Operating temperature range: -40°F to 131°F (-40°C to 55°C)
