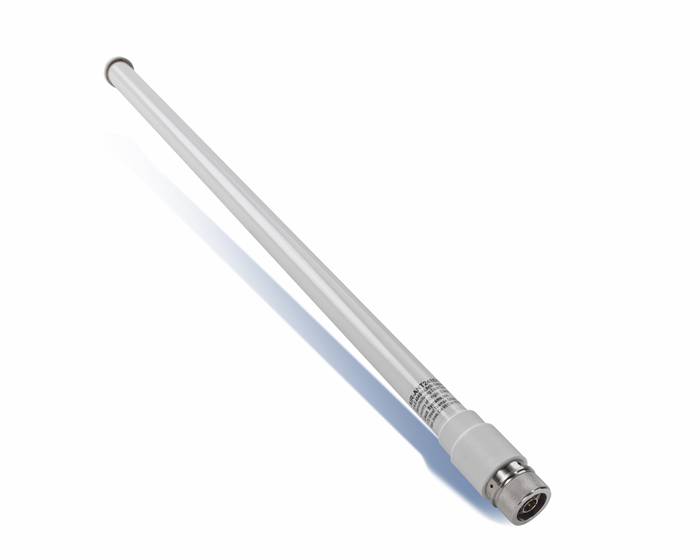

Cisco AIR-ANT2480V-N Aironet 8-dBi Omnidirectional Antenna

This document outlines the specifications, describes the Cisco Aironet AIR-ANT2480V-N 8 dBi Omnidirectional Antenna, and provides instructions for mounting it. The antenna operates in the 2400-MHz frequency range and is designed for outdoor use with Cisco Aironet 1500 Series Lightweight Outdoor Mesh Access Points.

Technical Specifications

• Antenna type: Omni-directional (Co-linear Array)
• Operating frequency range: 2400MHz - 2484 MHz
• VSWR: < 1.7:1
• Gain: 8 dBi
• Polarization: Linear, vertical
• Horizontal half-power beamwidth: 10 degrees
• Vertical half-power beamwidth: Omni-directional
• Length: 19-1/2 in. (49.5 cm)
• Tube diameter: 3/4 in. (1.91 cm)
• Cable length and type: none
• Connector: N-male
• Operating temperature: -22 to 158°F (-30°C to +70°C)
• Wind rating: 100 mph operational, 165 mph gusts(160-265 kmh)
