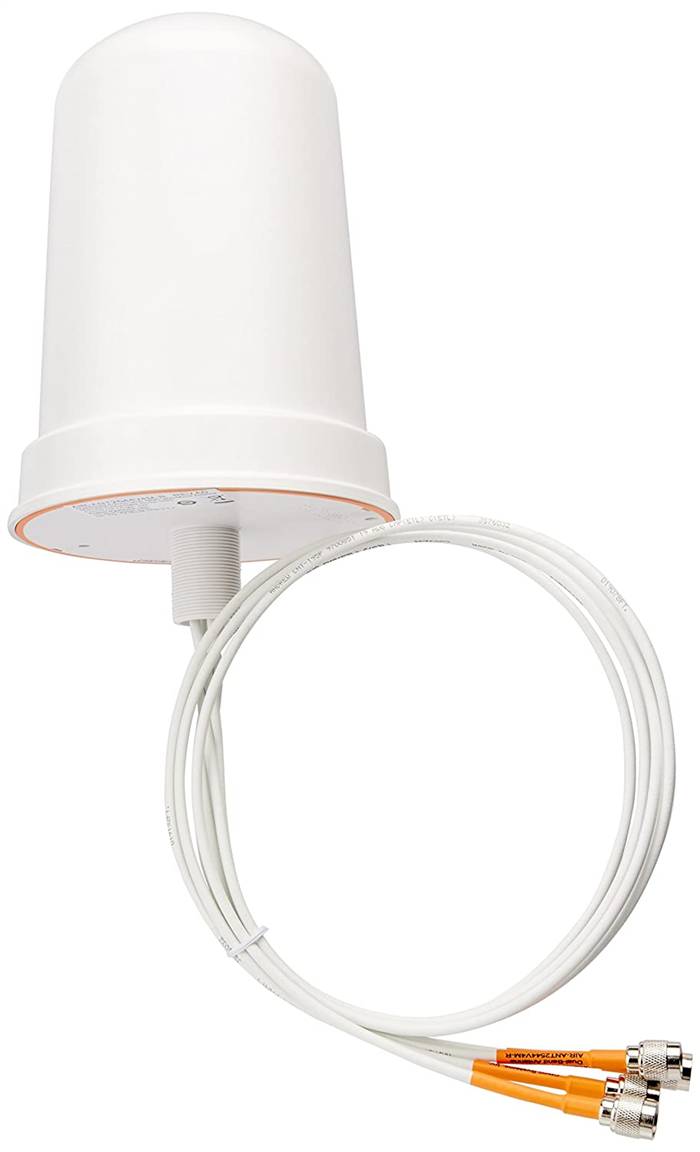

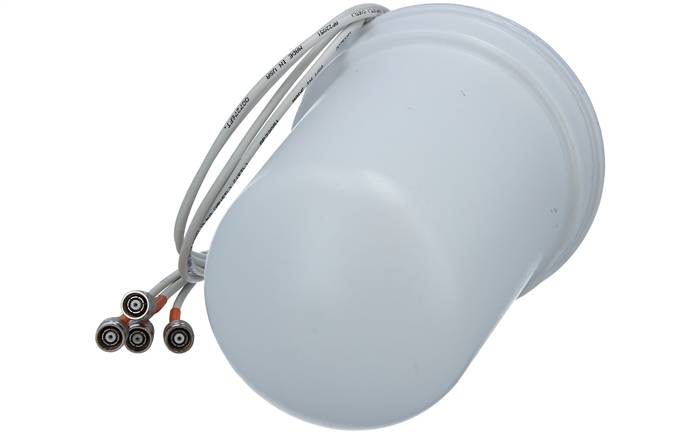

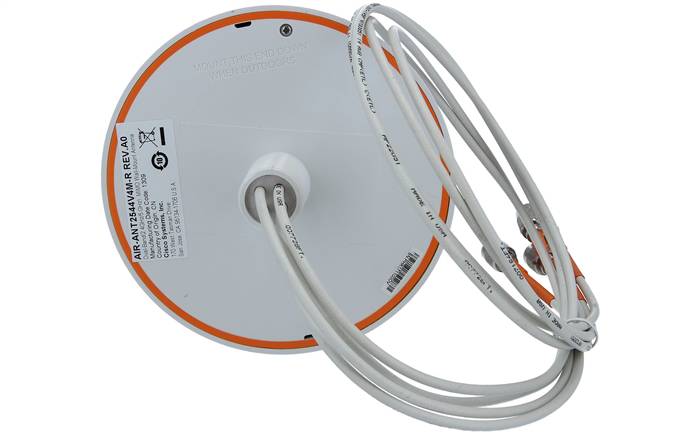

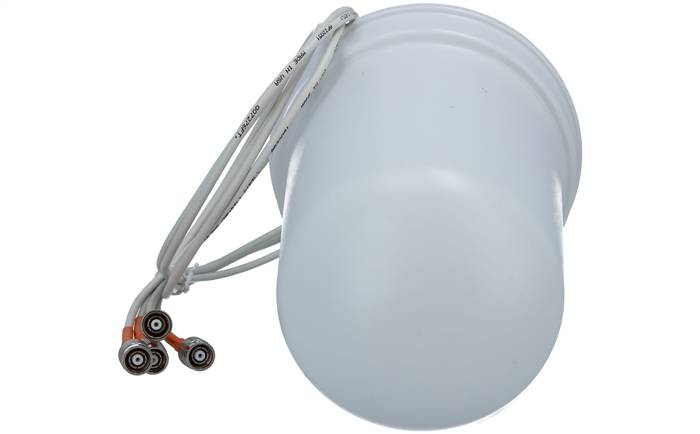

Cisco AIR-ANT2544V4M-R Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna

This document outlines the specifications for the Cisco Aironet 2.4-GHz/5-GHz Dual-Band MIMO Wall-Mounted Omnidirectional Antennas (AIR-ANT2544V4M-R and AIR-ANT2544V4M-RS) and provides instructions for mounting them. Both antennas operate in the 2.4 GHz and 5 GHz frequency ranges and are designed for indoor or outdoor use. The AIR-ANT2544V4M-RS antenna includes self-identifying circuitry.

Technical Specifications

• Antenna type: 4-element MIMO omnidirectional
• Operating frequency range
• 2400–2484 MHz
• 5150–5850 MHz
• Nominal input impedance: 50 Ohms
• VSWR: 2:1 or less
• Peak gain
• 2.4-GHz band: 4 dBi
• 5-GHz band: 4 dBi
• Polarization: Linear, vertical
• Azimuth plane (3 dB beamwidth): Ominidirectional
• Elevation plane (3 dB beamwidth)
• 2.4-GHz band: 60°
• 5-GHz band: 33°
• Length: 8.6 in (21.8 cm)
• Diameter: 6.3 in (16 cm)
• Weight: Antenna: 1.48 lb. (671.5 g);
• Cable: 3-ft. (91.4 cm) plenum
• Connector: RP-TNC
• Environment: Indoor/outdoor
• Temperature range: -22° F to 158° F (-30° C to 70° C)
