Cisco AIR-ANT4941 Aironet 2.4 GHz Articulated Dipole Antenna
AIR-ANT4941 - Cisco AIR-ANT4941=

Alternative Views:
Our Price: $50.00
Warranty: 1 Year Warranty
Availability: Call


Product Code: AIR-ANT4941
Qty:

Description

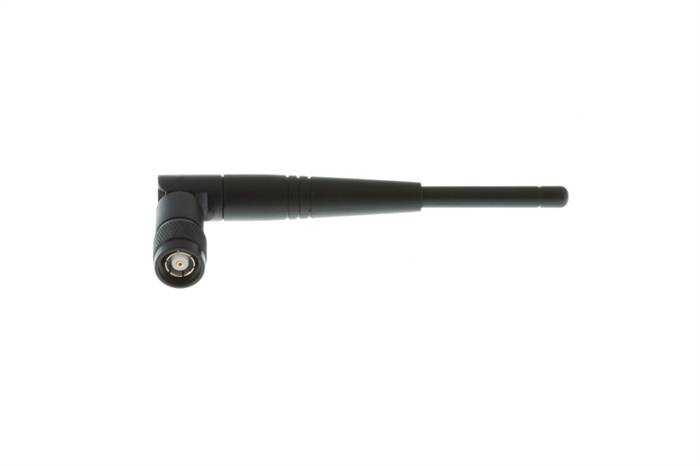

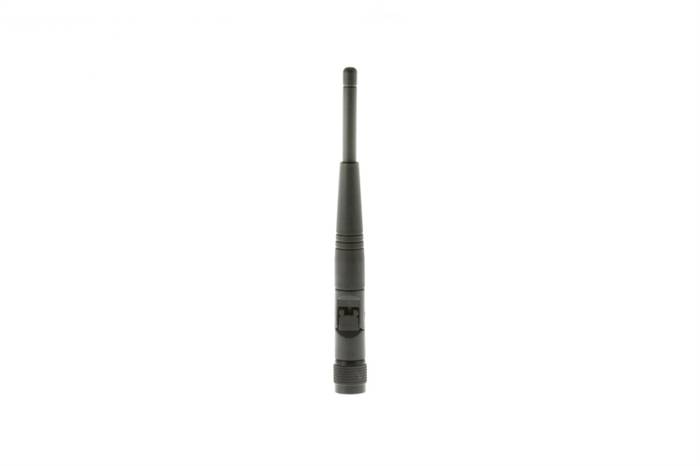

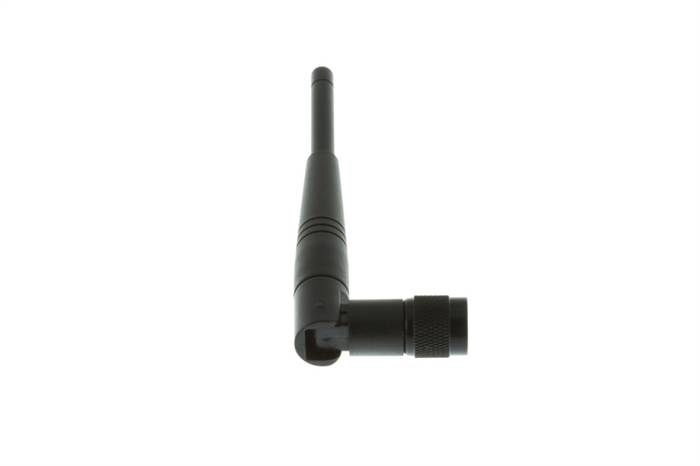

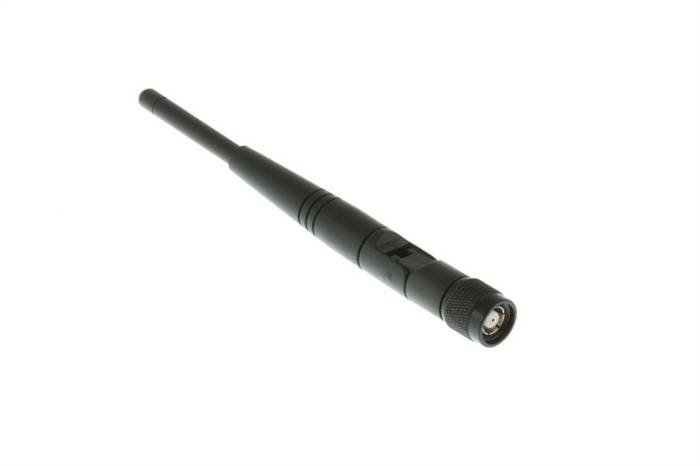

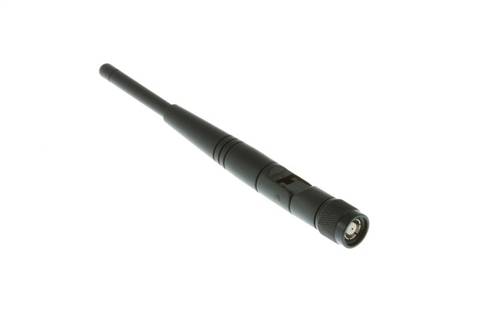

Cisco AIR-ANT4941 Aironet 2.4 GHz Articulated Dipole Antenna

This document outlines the specifications and description of the 2.2-dBi articulating dipole antenna AIR-ANT4941. This antenna operates in the 2.4- 2.5-GHz band and is designed for use with Cisco Aironet radio products utilizing a reverse-polarity threaded naval connector (RP-TNC).

Technical Specifications

  • Antenna type: Dipole
  • Operating frequency range: 2402-2495 MHz
  • Nominal input impedance: 50 Ohms
  • 2:1 VSWR bandwidth: 2385 - 2515 Mhz
  • Peak gain: 2 dBi
  • Polarization: Linear, vertical
  • E-Plane 3-dB beamwidth: 70 degrees
  • H-Plane 3-dB beamwidth: Omnidirectional
  • Dimensions: 5.5 in. (13 cm)
  • Weight: 1 oz.

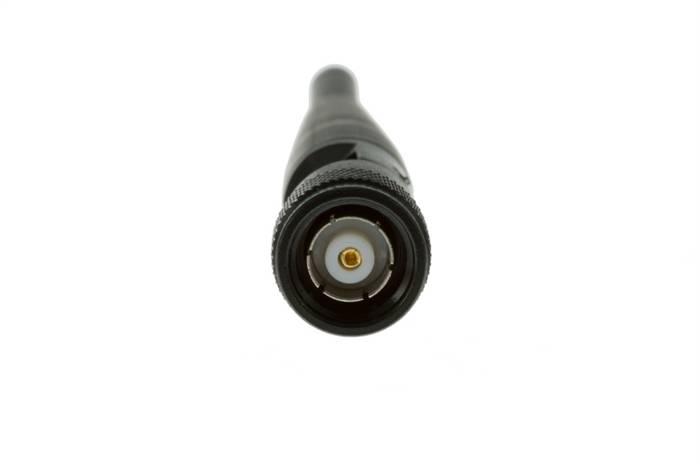

  • Connector type: RP-TNC plug
  • Environment: Indoor
  • Operating temperature range: 32° F to 140° F (0° C to 60° C)
