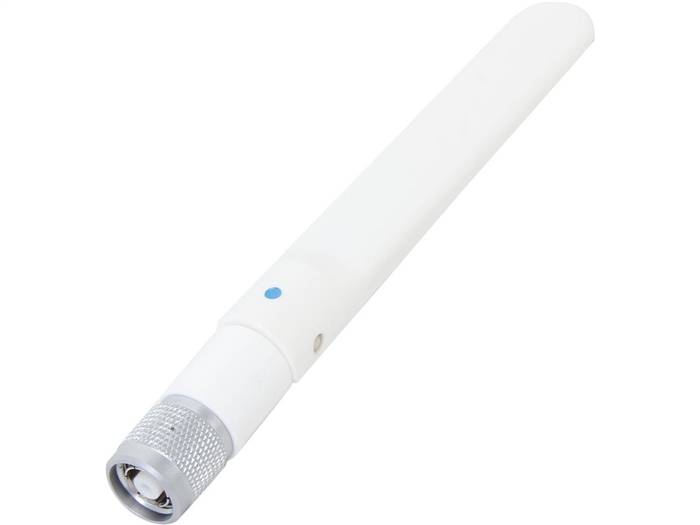

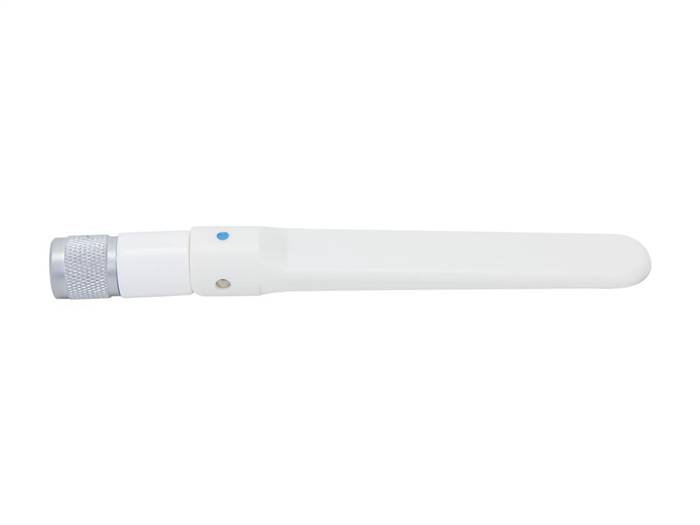

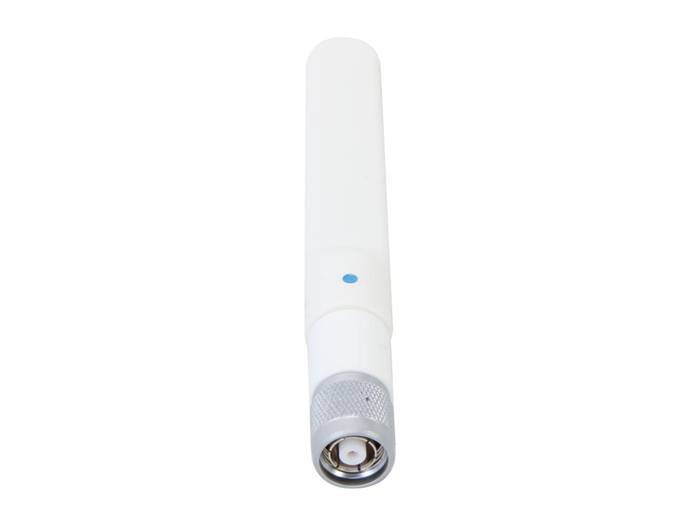

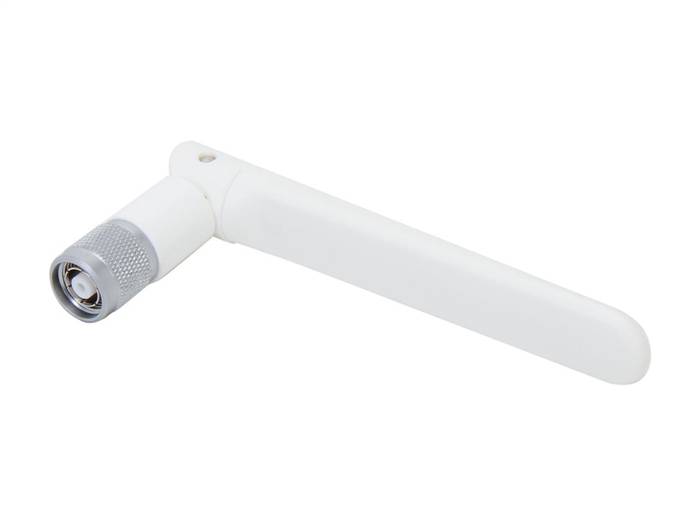

Cisco AIR-ANT5135DW-R Aironet White 3.5-dBi Articulated Dipole Antenna

This document outlines the specifications and describes the Cisco Aironet 3.5-dBi Articulated Dipole Antenna AIR-ANT5135DW-R. The antenna operates in the 5-GHz frequency band and is designed for use with Cisco Aironet 5-GHz radio products using an RP-TNC connector.

Technical Specifications

• Antenna type: Dipole
• Operating frequency range: 5150 – 5850 MHz
• Nominal input impedance: 50 Ohms
• 2:1 VSWR bandwidth: 5150 – 5850 MHz
• Gain: 3.5 dBi
• Polarization: Linear, vertical
• E-plane 3-dB beamwidth: 40 degrees
• H-plane 3-dB beamwidth: Omnidirectional
• Connector type: P-TNC plug
• Length: 5.3 in. (13.4 cm)
• Radome length: 3.4 in. (8.6 cm)
• Width: 0.62 in. (1.5 cm)
• Operating temperature: –22°F – 158°F (–30°C – 70°C)
• Storage temperature: –40°F – 185°F (–40°C – 85°C)
• Environment: Indoor, office
