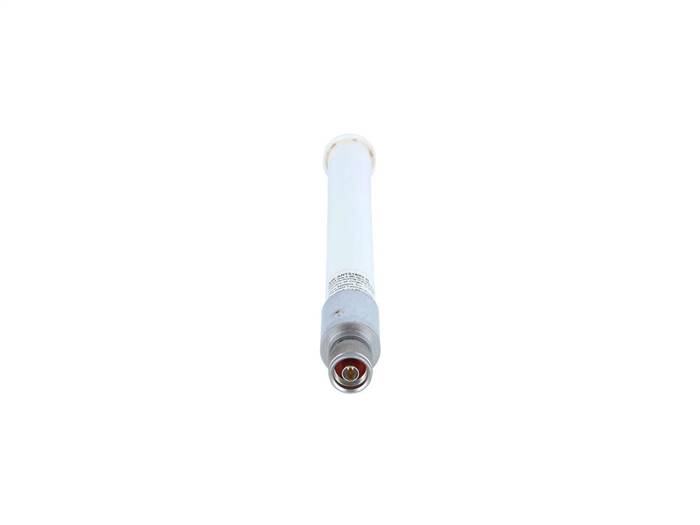

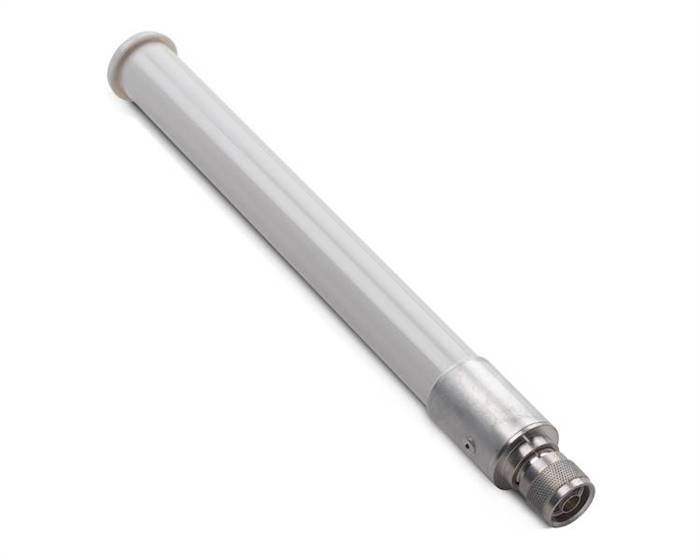

Cisco AIR-ANT5180V-N Aironet 8-dBi Omnidirectional Antenna

This document describes the Cisco Aironet AIR-ANT5180V-N 8-dBi Omnidirectional Antenna and provides instructions for mounting it. The antenna operates in the 5-GHz frequency range and is designed for outdoor use with the Cisco Aironet 1520 Series Outdoor Mesh Access Point (hereafter referred to as the access point).

Technical Specifications

• Antenna type: Omnidirectional colinear array
• Operating frequency range: 4900–5850 MHz
• 1.7:1 VSWR bandwidth: 4900–5850 MHz
• Nominal input impedance: 50 Ohms
• Gain (4900–5000 MHz): 7-dBi
• Gain (5400–5850 MHz): 8-dBi
• Polarization: Linear
• E-plane 3-dB beamwidth: 16°
• H-plane 3-dB bandwidth: Omnidirectional
• Length: 11.0 in. (27.9 cm)
• Diameter: 1.0 in. (2.54 cm)
• Weight: 6.0 oz. (160.0 g)
• Connector type: N-Male
• Operating temperature: –22°F - 158°F (–30°C - 70°C)
• Wind rating
• 125 mph (201 kmh), operational
• 165 mph (265 kmh), survival
