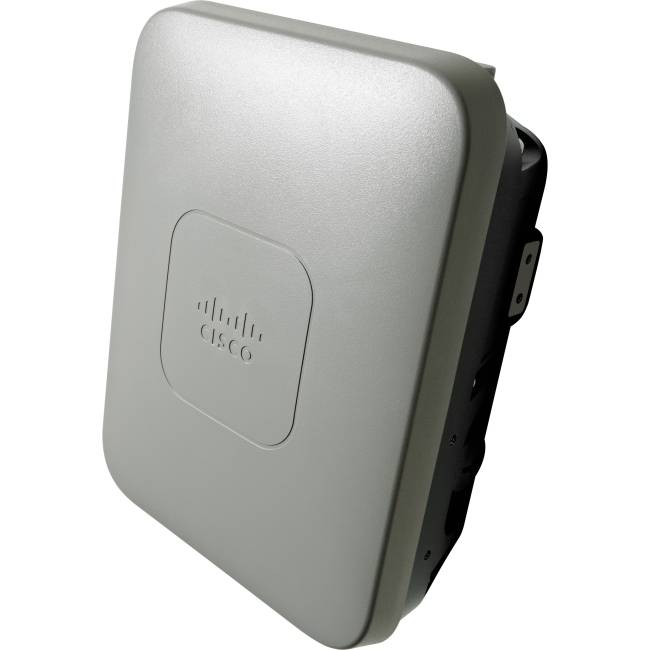

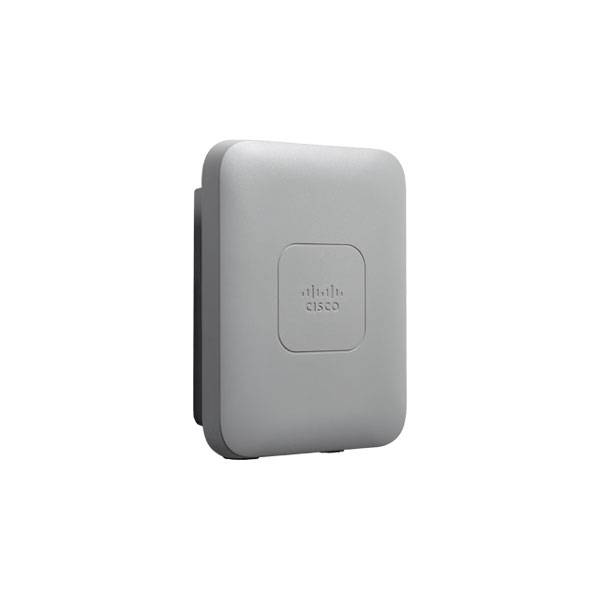

Cisco AIR-AP1542I-H-K9 Aironet 1540 Series AP, 802.11ac W2 Value Outdoor AP, Internal Ant, H Reg Dom

The Cisco Aironet 1540 Series is ideal for applications requiring rugged outdoor Wi-Fi coverage and supports the latest 802.11ac Wave 2 radio standard. Housed in a compact, aesthetically pleasing, easy-to-deploy package, the 1540 Series offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. The 1540 Series access points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment.

Whether deployed as a traditional access point or a wireless mesh access point, the 1540 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.

Features and benefits

By adhering to the 802.11ac Wave 2 standard, the 1540 Series provides a data rate of up to 867 Mbps on the 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1.1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users.

In recent years corporate users have increasingly preferred wireless access as the form of network connectivity due to its convenience. With this shift, there is an expectation that wireless should not slow down users’ day-to-day work, but should enable a high-performance experience. The 1540 Series delivers this performance with highly secure and reliable wireless connections for mobile end users.

Specifications

• 802.11ac Wave 1 and 2 capabilities
• 1542I/D: 2 x 2 MIMO with two spatial streams
• Multiuser and single-user MIMO
• Maximal Ratio Combining (MRC)
• 802.11ac beamforming (transmit beamforming)
• 20-, 40-, and 80-MHz channels
• PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
• Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
• 802.11 Dynamic Frequency Selection (DFS)
• Cyclic-Shift-Diversity (CSD) support
• 802.11n (and related) capabilities

• 1542I/D: 2 x 2 MIMO with two spatial streams
• MRC
• 20- and 40-MHz channels (40 MHz in 5 GHz)
• PHY data rates up to 300 Mbps
• Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
• 802.11 DFS
• CSD support
• Data rates supported

• 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
• 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
• Frequency Band and 20-MHz Operating Channels

• H:
• 2.412 to 2.472 GHz, 13 channels
• 5.745 to 5.825 GHz, 5 channels
