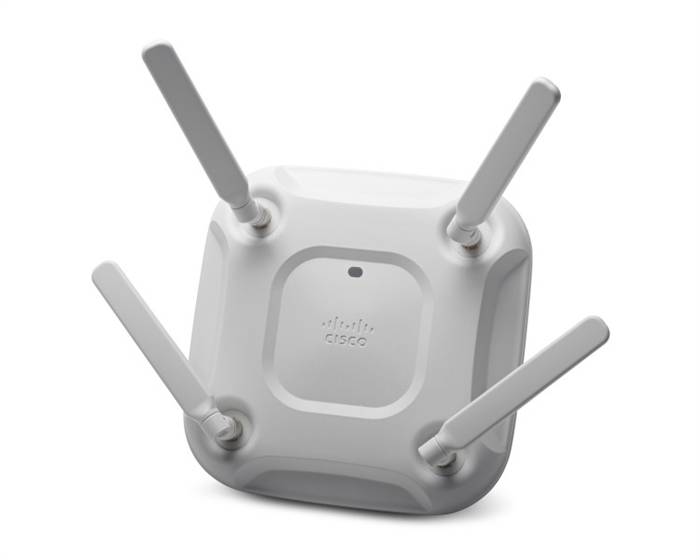

Cisco AIR-CAP3702E-H-K9 Aironet 3700 AP, 802.11 a/g/n/ac, 2.4GHz 5GHz, 4*4 MIMO, External antennas, Control base, Modular architecture, H Reg Domain

AIR-CAP3702E-H-K9 is one of the 3700 series AP, needing wireless controller, providing external antenna and H regulatory domain. Based on the Cisco Aironet heritage of RF excellence, the 3700 Series utilizes a Purpose-built innovative chipset to provide a high density experience for enterprise network. 4 x 4 MIMO (multiple-input multiple-output) technology with three-spatial-stream offers a greater coverage for more reliability and capacity than competing access points. Modular architecture enables flexible add-on options, which include Wireless Security Module, Cisco Universal Small Cell 5310 Module and Cisco Aironet 802.11ac Wave 2 Module.

Specifications

• Product Code: AIR-CAP3702E-H-K9
• WiFi Standards: 802.11a/b/g/n/ac
• Ideal For: Midsize or large enterprises that require mission-critical traffic
• Max Data Rate 5GHz: 1.3 Gbps
• MIMO Radio Design: Spatial Streams: 4 x 4:3
• Client count/ClientLink client count: 200/128
• Controller Available: Yes
• Power
• 4 x 4:3 operation:
• 802.3at PoE+
• Enhanced PoE, Universal PoE (UPOE)
• 3 x 3:3 operation: 802.3af PoE
• Antenna: External Antenna
• Regulatory Domain
• H (H regulatory domain):
• 2.412 to 2.472 GHz; 13 channels
• 5.150 to 5.350 GHz; 8 channels
• 5.745 to 5.825 GHz; 5 channels
• Dimensions (W x L x H): 22.1 x 22.1 x 5.4 cm (without mounting bracket)
• Package Weight: 1.72 Kg
