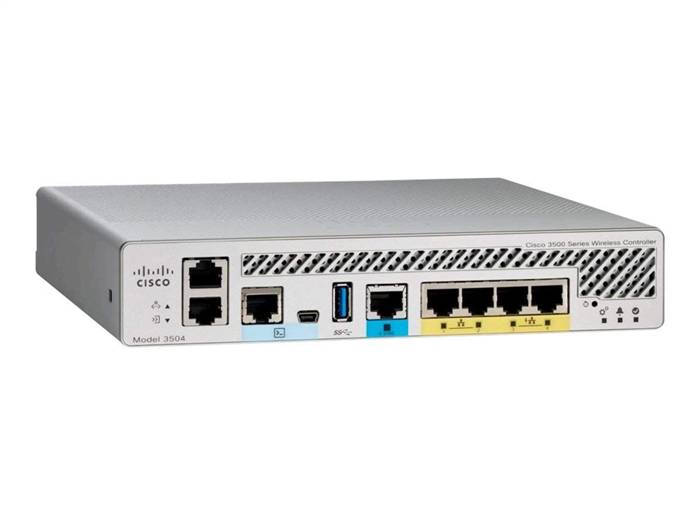

Cisco AIR-CT3504-K9 3504 Wireless Controller

AIR-CT3504-K9 is the Cisco 3504 Wireless Controller. The Cisco 3504 Wireless Controller provides centralized control, management, and troubleshooting for small to medium-sized enterprises and branch offices. It offers flexibility to support multiple deployment modes in the same controller—a centralized mode for campus environments, Cisco FlexConnect® mode for lean branches managed over the WAN, and a mesh (bridge) mode for deployments in which full Ethernet cabling is unavailable. As a component of the Cisco Unified Wireless Network, the 3504 controller provides real-time communications between Cisco Aironet® access points, Cisco Prime® Infrastructure, and the Cisco Mobility Services Engine, and is interoperable with the Cisco 5520 and 8540 Wireless Controllers.

Specifications

• Model: AIR-CT3504-K9
• Chassis Height: One rack-unit (1RU)
• Throughput: 4 Gbps
• Number of APs supported: 150
• Number of clients supported: 3000
• Processor: Cavium Network Processor—CN7240-AAP 8-core, 1.5 GHz
• Memory Options
• Control/Data Plane Memory—8GB DDR4
• Boot Flash—8MB SPI NOR Serial Boot
• Bulk Flash—32GB eMMC
• Redundancy, Service Ports: 2x 1G Cu
• Data Ports: 1x 5G/mGig Cu, 4x 1G Cu (2 ports 802.3at PSE)
