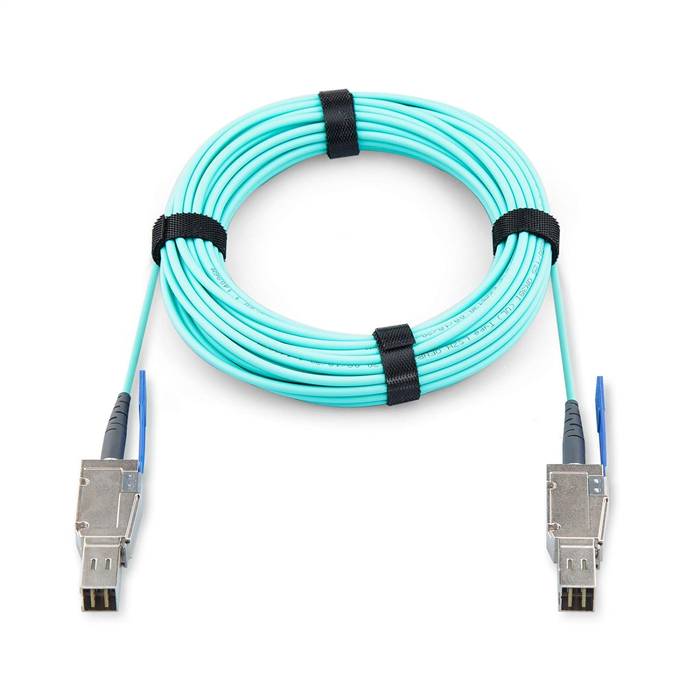

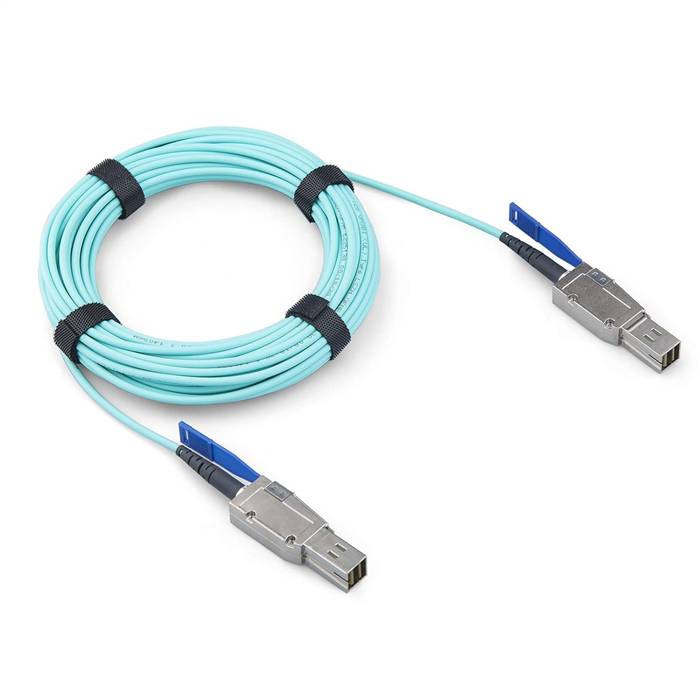

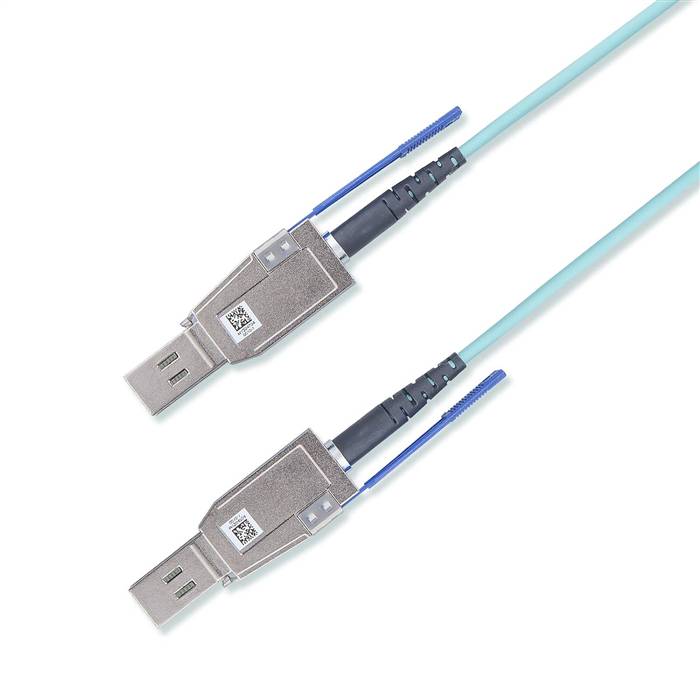

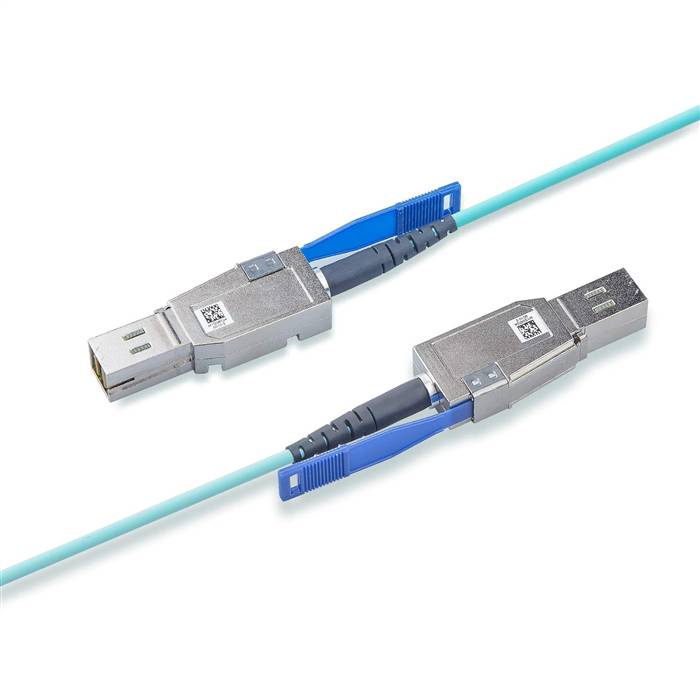

External Mini SAS HD SFF-8644 to Mini SAS HD SFF-8644 Active Optical Cable, 10 meter

This Mini-SAS HD Active Optical Cable is fully compliant to SAS 2.1 and SAS 3.0 industry standards as well as the SFF-8636 interface standard. Used primarily for external Enterprise storage applications (box-to-box, server to storage, server to switch), this cable is part of our comprehensive Mini-SAS HD product offerings that address all board connector and cabling applications, from 1 to 100 meters. This wide offering gives system architects full flexibility and a complete range of products to meet all high speed storage and high density IO system needs.

Features

• Fully compliant to SAS 2.1 (6Gb/s) and SAS 3.0 (12Gb/s) industry standards
• Support PCI Express Gen3 (8Gb/s) applications
• Operate up to 48Gb/s aggregate bandwidth
• Transmission distance up to 100m (MMF)

Specifications

• Cable Type: External 4x Mini-SAS HD Active Optical Cable

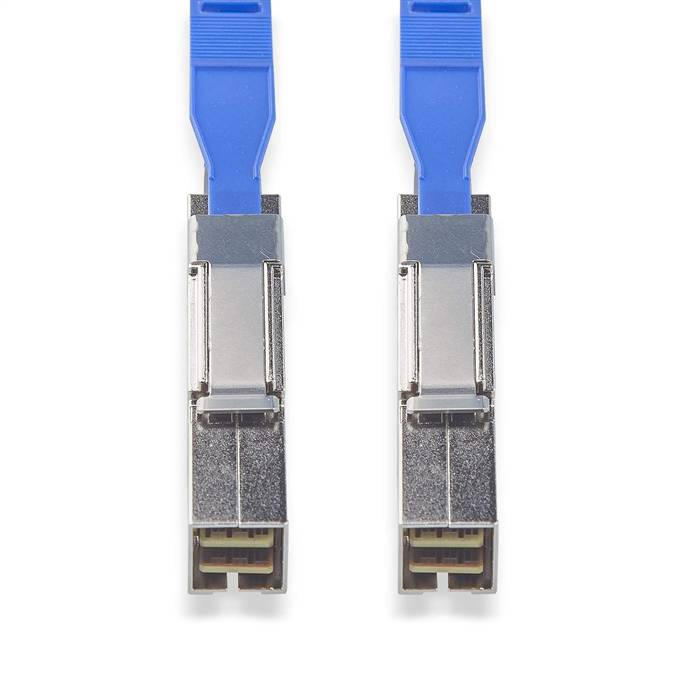

• Connector A: SFF-8644 (4x HD Mini-SAS)
• Connector B: SFF-8644 (4x HD Mini-SAS)
• Cable Length: 10m
• Data Rate: 12Gb/s per lane (4 lanes)
• Fiber Type: OM3
• Color: Aqua
• Durability (Mating cycles): 50 Mating Cycles Min
• Power Supply Voltage: 3.3V
• Power: 0.825 Watts per end
• Operating Temperature Range: 0°C to +70°C
