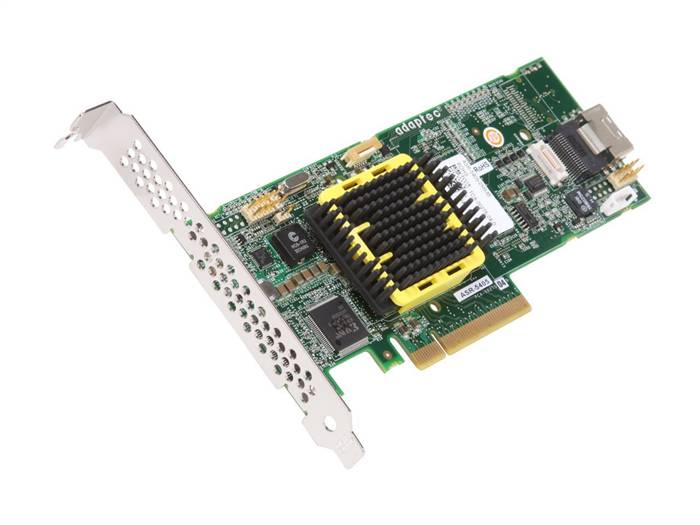

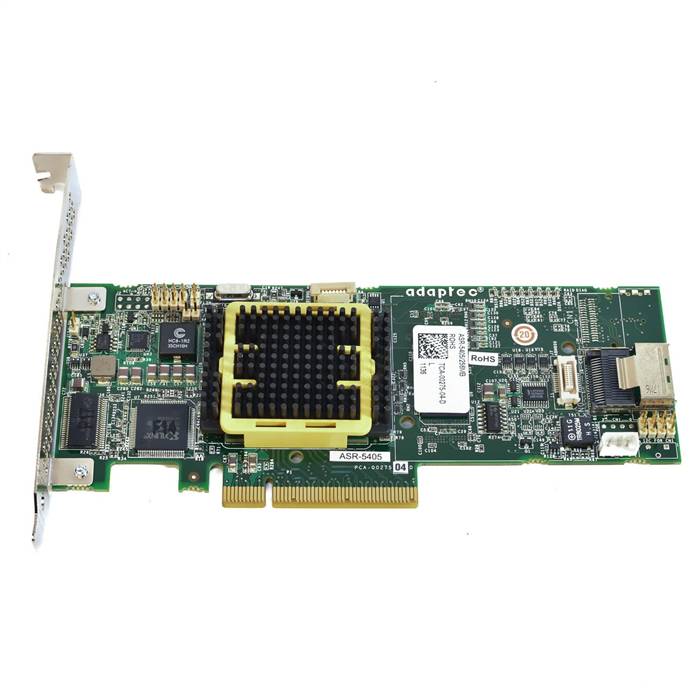

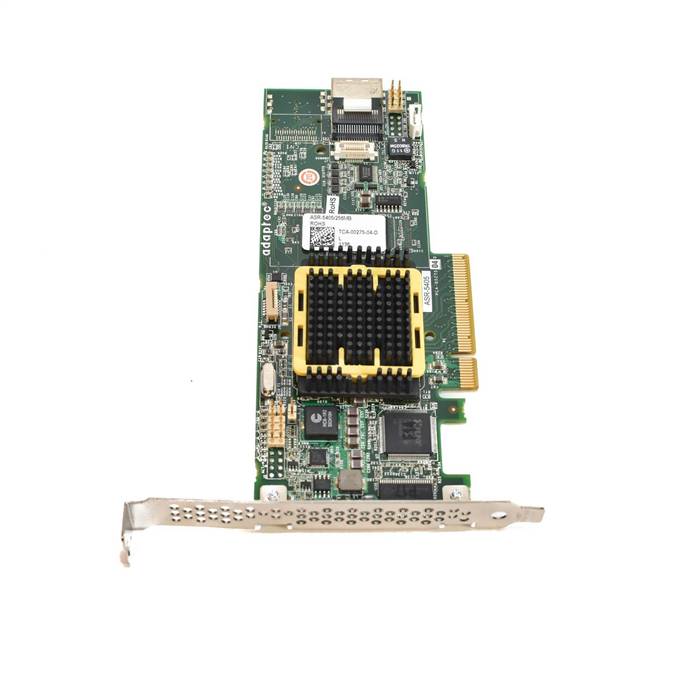

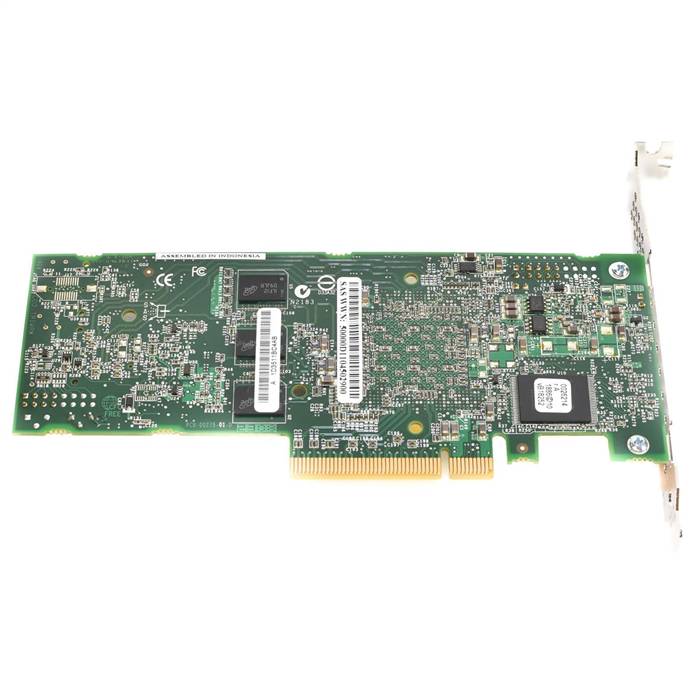

Adaptec ASR-5405 2258200-R 3Gb/s 8-port Internal SAS/SATA RAID Controller with 256MB Cache

4 internal port, low profile, PCI-Express (PCIe) Unified Serial RAID controller with Intelligent Power Management delivers exceptional performance, advanced data protection, and maximum scalability for enterprise-class, high-density server applications

Supported Operating Systems

• Microsoft Windows
• Red Hat Linux
• SUSE Linux
• SCO OpenServer
• UnixWare
• Sun Solaris
• FreeBSD
• VMware ESX

Benefits

• Performance Unified Serial RAID controllers support both SATA and SAS devices. Ideal for bandwidth intensive storage applications; NAS, OLTP servers, web servers, and digital surveillance.

Key Differentiators

• Intelligent Power Management

Customer Needs

• High I/O transaction and high bandwidth processing.

Form Factor

• MD2 Low-Profile

Cache Memory

• 256MB of DDR2 memory

RAID Levels

• RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50*, 60*, JBOD (* Expander is necessary)

Key RAID Features

• Supports 4 direct-attached or up to 256 SATA or SAS disk drives using SAS expanders
• RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50* and 60*
• Quick initialization
• Online Capacity Expansion
• Copyback Hot Spare
• Dynamic caching algorithm
• Native Command Queuing (NCQ)
• Background initialization
• Hot-plug drive support
• RAID Level Migration
• Hot spares – global, dedicated, and  pooled
• Automatic/manual rebuild of hot spares
• SAF-TE enclosure management
• Configurable stripe size
• S.M.A.R.T. support
• Up to 512TB array sizes
• Multiple arrays per disk drive
• Bad stripe table
• Dynamic sector repair
• Staggered drive spin-up
• Bootable array support
• Optimized Disk Utilization

Bus System Interface Type

• 8-lane PCIe

Internal Connectors

• 1 internal (SFF-8087) Mini SAS

Data Transfer Rate

• 3 Gb/s per port

Package Contents

• Adaptec RAID 5405 Controller

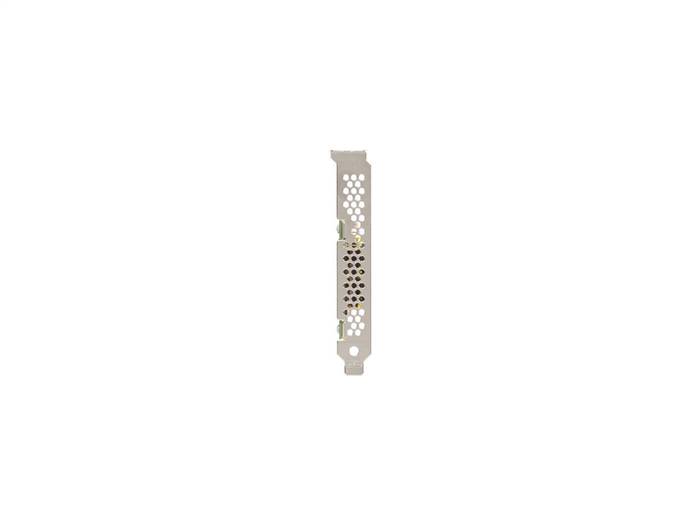

• Additional low profile vented bracket
• Software and documentation CDs
• Quick Installation Guide
• (English/French/German/Italian/Spanish)
• Cable: one Mini SAS x4 to (4x) SATA fanout cable w/ sideband, 0.5 meter
• Singles do not contain cable

Management Utilities

• Adaptec Storage Manager™ (ASM)

• Java-based GUI Management Utility
• Remote configuration, monitoring & notification
• ASM OS Support: Windows, Linux, SCO, Solaris, FreeBSD
• Microsoft VDS Support
• SNMP, SMTP
• Remote firmware updates

ARCCONF

• Command Line Interface
• SMI-S support for VMware

Adaptec BIOS Utility (ACU)

• BIOS level configuration utility
• Flashable BIOS support

Physical Size

• 2.5" H x 6.6" L (64mm x 167mm)


Operating Temperature

• 0°C to 55°C* (with 200 LFM airflow; without battery)

• 0°C to 40°C* (with 200 LFM airflow; with battery)

Note: This Adaptec card contains a powerful RAID processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM).

* Ambient temperature measured 1" away from the RAID processor

Operating Voltage

• 0.45 amp @ 3.3V

• 1 amp @ 12V

Regulatory Certification

• CE, FCC, UL,  C-tick, VCCI


Mean Time Before Failure (MTBF)

• 873,402 hours at 40 degree C.
