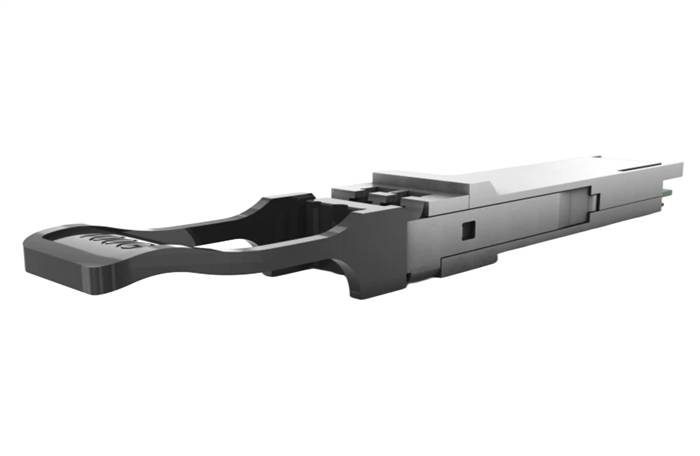

Allied Telesis AT-QSFP28-LR4 100G, QSFP28 LR4, SMF, LC, 10km QSFP28 Module

The Allied Telesis QSFP28 Series offers the latest industry-standard connectivity in a flexible, small form factor. The QSFP28 Series supports 100GbE interconnects. They are ideal for Datacom/Telecom switch and router connections, as well as data aggregation, backplane, proprietary protocol and high-density applications.

Specifications

• Model: AT-QSFP28-LR4
• Fiber Type: SMF
• Connector Type: LC
• Maximum Distance: 10km
• Wavelength: 1296nm, 1300nm, 1304nm, 1308nm
• DDM: Yes
• Transmit: -4 ~ 4 dBm
• Receiver Sensitivity: -9 dBm
• Power Budget: 5 dBm
• Overload: 5 dBm
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
