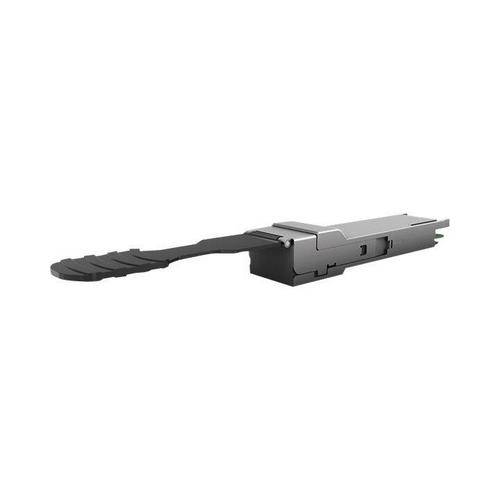

Allied Telesis AT-QSFP28-SR4 100G, QSFP28 SR4, MMF, MPO-12, 100m QSFP28 Module

The Allied Telesis QSFP28 Series offers the latest industry-standard connectivity in a flexible, small form factor. The QSFP28 Series supports 100GbE interconnects. They are ideal for Datacom/Telecom switch and router connections, as well as data aggregation, backplane, proprietary protocol and high-density applications.

Specifications

• Model: AT-QSFP28-SR4
• Fiber Type: MMF
• Connector Type: MPO
• Maximum Distance: 100m on OM4
• Wavelength: 850nm
• DDM: Yes
• Transmit: -6 ~ 3 dBm
• Receiver Sensitivity: -12 dBm
• Power Budget: 6 dBm
• Overload: 3 dBm
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
