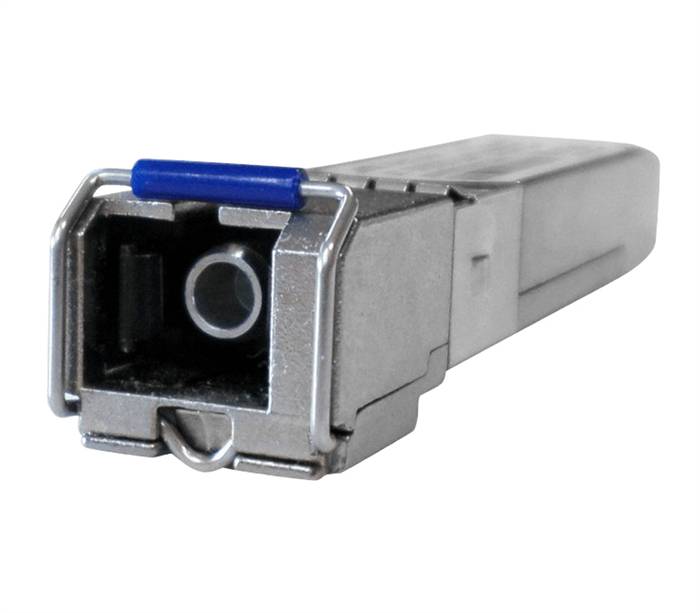

Allied Telesis AT-SP10BD20-12 10G 1270/1330, 20 km SFP+ Module

The SP10BD20 is available in 1270Tx/1330Rx or 1330Tx/1270Rx I-Temp models (0°C to 70°C). It offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable fiber interfaces simply plug into a SFP slot on compatible products. You can optimize the configuration to meet your distance and service requirements.

Specifications

• Part Number: AT-SP10BD20-12
• Fiber Tyep: SMF
• Connector: LC
• Maximum Distance: Up to 20km
• Wavelength: 1270nm Tx / 1330nm Rx
• DDM: Yes
• Transmit: -3 ~ 3 dBm
• Receive Sensitivity: -15dBm
• Power Budget: 12dBm
• Overload: 1dBm
• Operating Temperature:   0°C to 70°C (32°F to 158°F)
