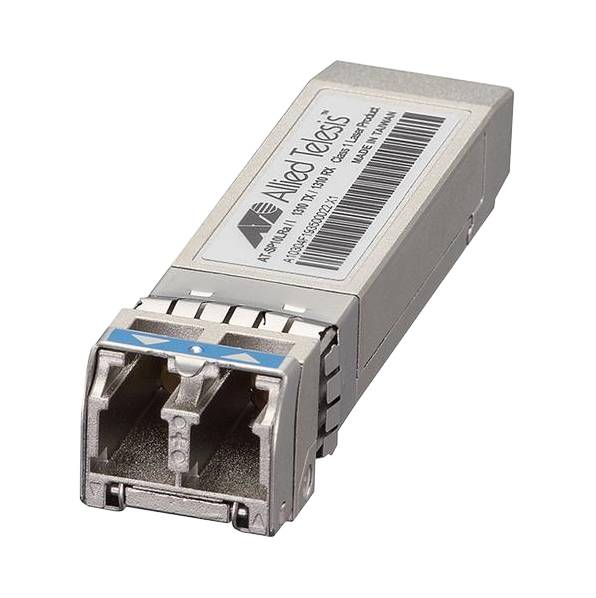

Allied Telesis AT-SP10LRa/I 10GBASE-LR, 1310 nm, 10 km with SMF, I-Temp, TAA Compliant SFP+ Module

The SP10LRa/I is a hot pluggable 10Gbps small form factor transceiver module with Industrial Temperature rating, -40°C to 85°C (-40°F to 185°F). It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) with five digital monitoring functions: Temperature, Vcc, Tx optical power, Tx laser bias current and Rx received optical power.

Specifications

• Part Number: AT-SP10LRa/I
• Fiber Tyep: SMF
• Connector: LC
• Maximum Distance: Up to 10km
• Wavelength: 1310nm
• DDM: Yes
• Transmit: -8 ~ 1 dBm
• Receive Sensitivity: -14 dBm
• Power Budget: 6dBm
• Over-load: 1 dBm
• Operating Temperature:   -40°C to 85°C (-40°F to 185°F)
