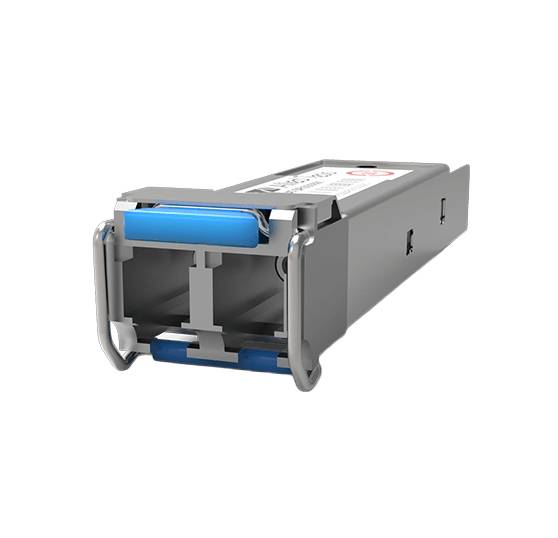

Allied Telesis AT-SP10ZR80/I 10GBASE-ZR, 1550 nm, 80 km with SMF, I-Temp SFP+ Module

The Allied Telesis SP10ZR80/I is a hot-pluggable 10Gbps small form factor transceiver module. It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) and features five digital monitoring functions: temperature, VCC, transmitted optical power, transmitted laser bias current and received optical power.

Specifications

• Part Number: AT-SP10ZR80/I
• Fiber Tyep: SMF
• Connector: LC
• Maximum Distance: Up to 80km
• Wavelength: 1550nm
• DDM: Yes
• Transmit: 0 ~ 5 dBm
• Receive Sensitivity: -20dBm
• Power Budget: 20dBm
• Overload: 1dBm
• Operating Temperature:   -40°C to 85°C (-40°F to 185°F)
