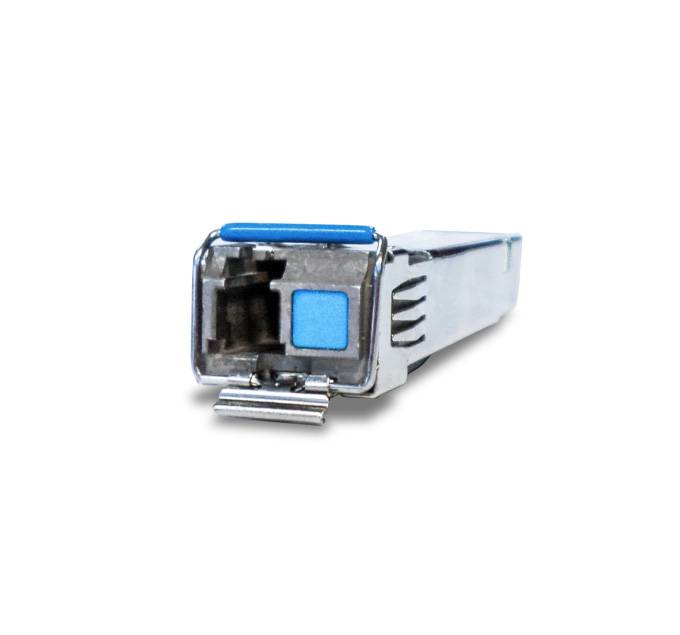

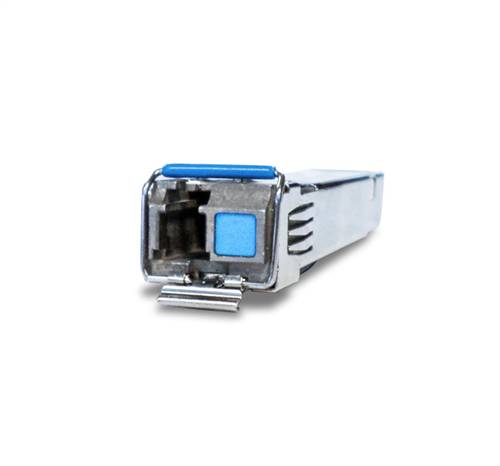

Allied Telesis AT-SPBD10-14 10 km, 1G, SMF, BiDi, LC (1490Tx/1310Rx) SFP Transceiver Module

The SPBD10 is available in 1310Tx/1490Rx or 1490Rx/1310Tx models. It offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable fiber interfaces simply plug into a SFP slot on compatible products. You can optimize the configuration to meet your distance and service requirements.

Specifications

• Part Number: AT-SPBD10-14
• Fiber Tyep: SMF
• Connector: LC
• Maximum Distance: 10km
• Wavelength: 1490nm Tx / 1310nm Rx
• DDM: No
• Transmit: -9 ~ -3 dBm
• Receive Sensitivity: -20dBm
• Power Budget: 11dBm
• Over-load: -3dBm
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
