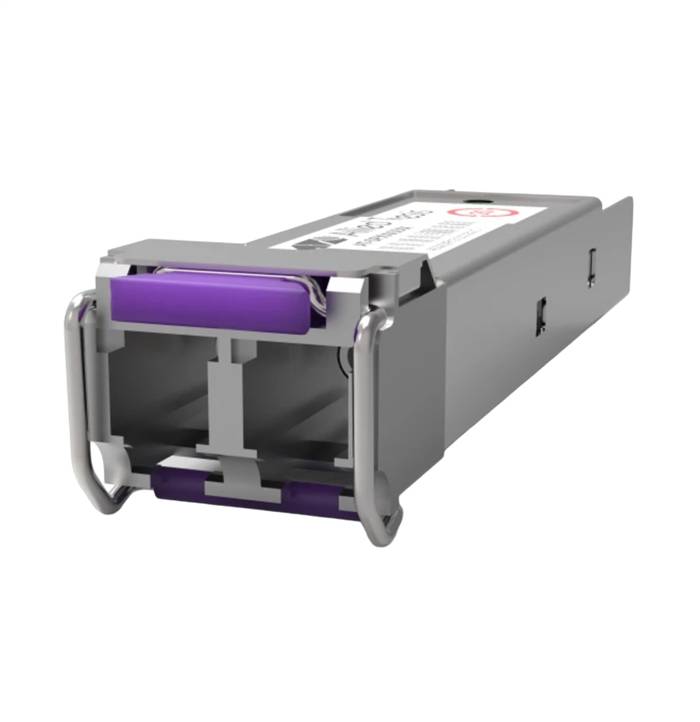

Allied Telesis AT-SPBD20DUAL-14 20 km, 2x1G, 2 channel BiDi CSFP, SMF, LC (1490Tx/1310Rx) SFP Transceiver Module

The SPBD20DUAL is a hot-swappable, 2 channel bi-directional transceiver module offering connectivity in a flexible, small form-factor. It is compliant with the latest Gigabit Ethernet standards, as well as the CSFP Multisource Agreement (MSA).

Specifications

• Part Number: AT-SPBD20DUAL-14
• Fiber Tyep: SMF
• Connector: LC
• Maximum Distance: 20km
• Wavelength: 1490nm Tx / 1310nm Rx
• DDM: Yes
• Transmit: -8 ~ -3 dBm
• Receive Sensitivity: -23dBm
• Power Budget: 15dBm
• Over-load: -3dBm
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
