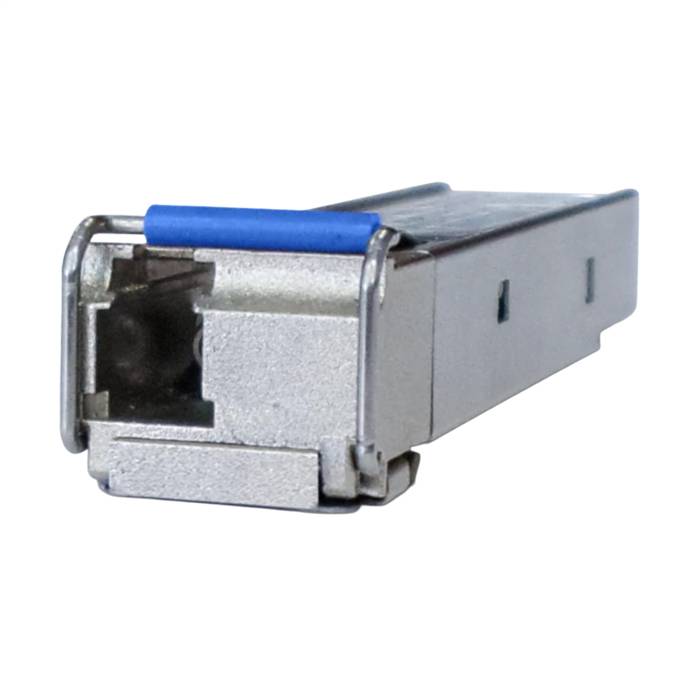

Allied Telesis AT-SPBD20LC/I-13 20 km, 1G, SMF, BiDi, LC, TAA Compliant (1310Tx/1490Rx), I-temp SFP Transceiver Module

The SPBD20LC/I is available in 1310Tx/1490Rx or 1490Tx/1310Rx I-Temp models (-40°C to 85°C). It offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable fiber interfaces simply plug into a SFP slot on compatible products. You can optimize the configuration to meet your distance and service requirements.

Specifications

• Part Number: AT-SPBD20LC/I-13
• Fiber Tyep: SMF
• Connector: LC
• Maximum Distance: 20km
• Wavelength: 1310nm Tx / 1490nm Rx
• DDM: Yes
• Transmit: -5 ~ 0 dBm
• Receive Sensitivity: -20dBm
• Power Budget: 15dBm
• Over-load: 0dBm
• Operating Temperature: -40°C to 95°C (-40°F to 203°F)
