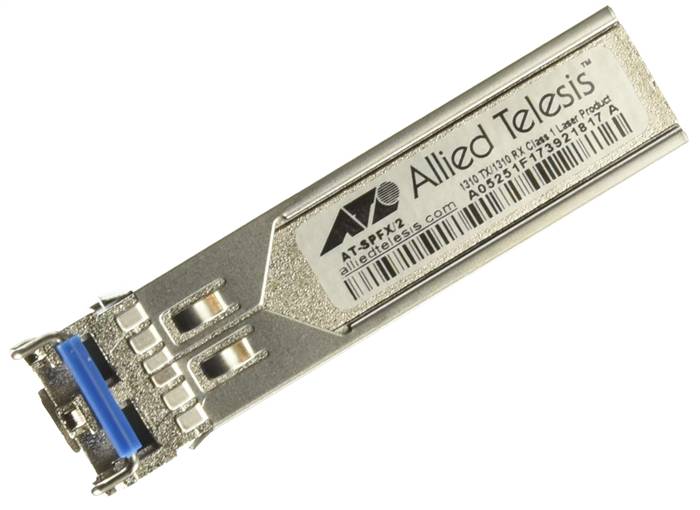

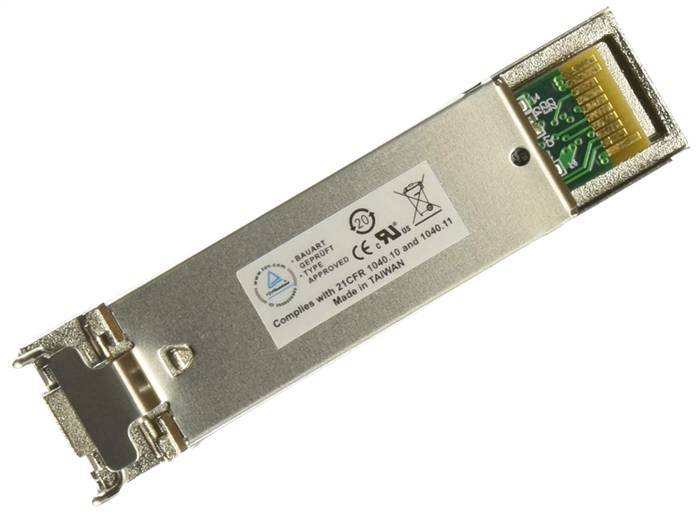

Allied Telesis AT-SPFX/2 2km, 100FX (LC), 1310nm SFP Module

The Allied Telesis 100Mbps SP Series offers the latest industry standard in flexible, full-duplex, Fast Ethernet connectivity. These hot-swappable interfaces simply plug into the SFP slot on all SFP-compatible products. Configuration can be optimized to meet a wide variety of distance and service requirements.

Features

• Compact size
• Flexible architecture
• Plug and play for ease of use
• Self-locking mechanism
• MSA compliant

Specifications

• Part Number: AT-SPFX/2
• Fiber Tyep: MMF
• Connector: LC
• Maximum Distance: 2km
• Wavelength: 1310nm
• DDM: No
• Transmit: -20dBm ~ -14dBm
• Receive Sensitivity: -31dBm
• Power Budget: 11dBm
• Over-load: 0dBm
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
