LSI BBU-BRACKET-05 LSI00291 Mounting Bracket Remote Mounting Bracket for Lsi Bbus and Cachevault Power Module

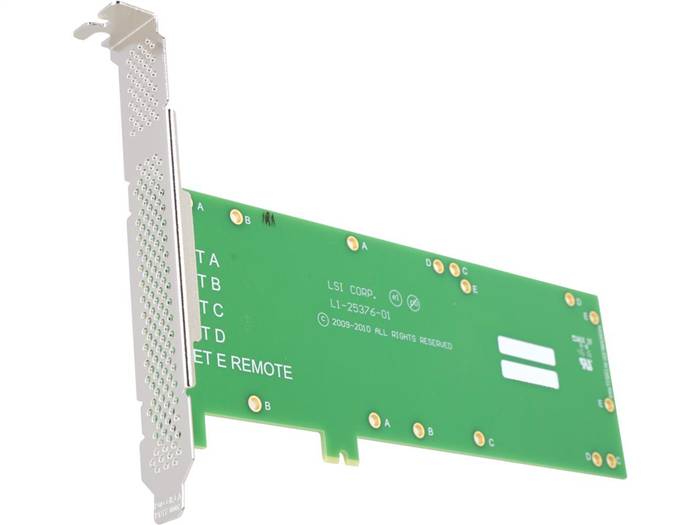

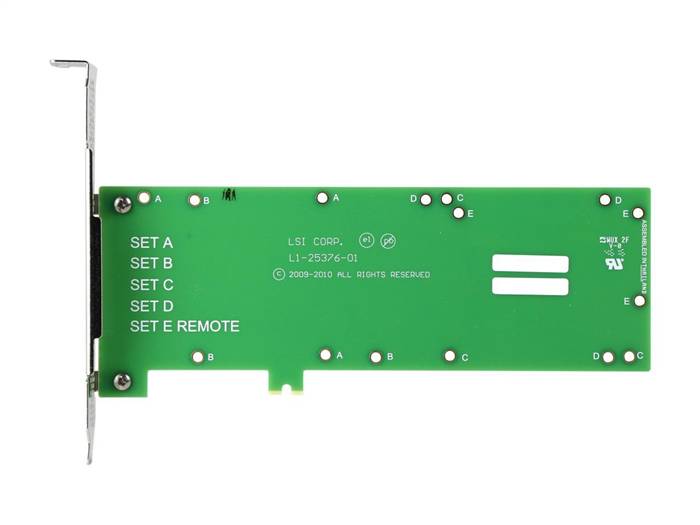

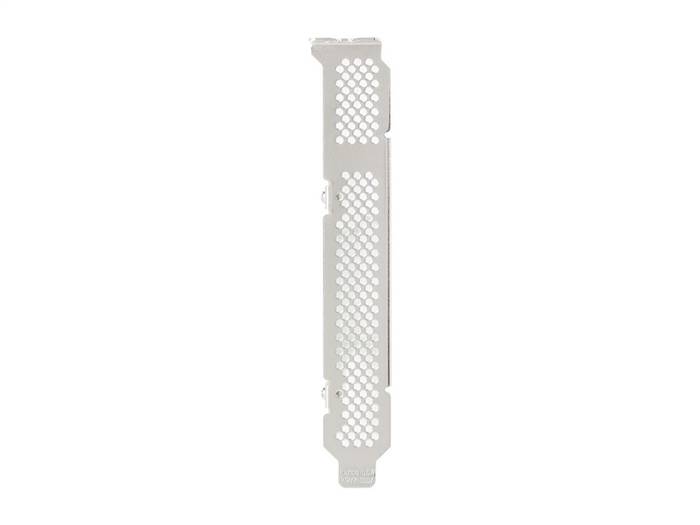

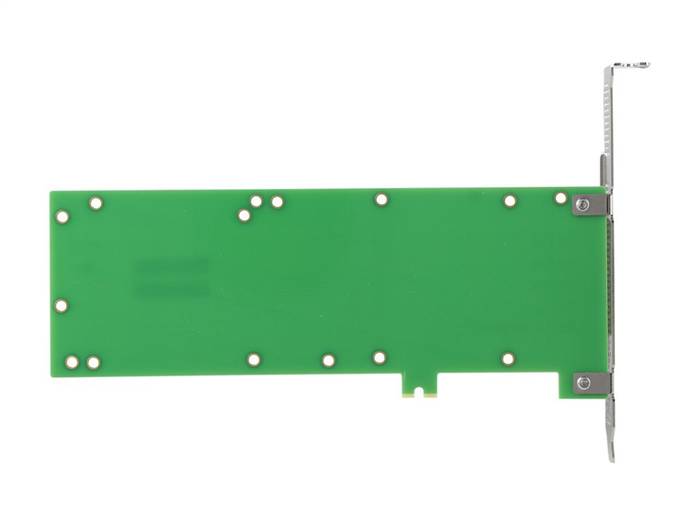

This BBU-BRACKET-05 is a remote mounting board that allows customers to remotely mount their battery backup or CacheVault Power Module (CVPM) in an adjacent server PCI slot. The BBU-BRACKET-05 allows one or two BBUs or CVPMs to be attached at a time and comes with a full-height bracket installed, while an optional low-profile bracket is included as part of the kit. Both brackets are ‘vented’ to allow for maximum cooling air flow in the vicinity of the battery.

Specifications

• Mfr Part Number: LSI00291 (LSIITBBU05)
• Model: BBU-BRACKET-05
• Solution Provided : Remote Mounting Bracket for LSI BBUs and CacheVault Power Modules
• Packaging Configuration : bulk
• Weight (lbs) : 1 lbs / 0.45kg
• Product Dimensions ; 6" x 6" x 2" / 15.2 x 15.2 x 5 cm

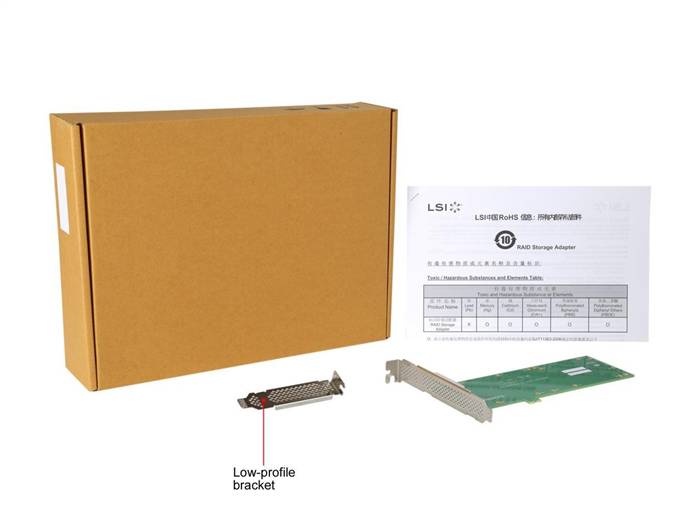

• In the Box BBU-BRACKET-05 with full height bracket installed, LP bracket

Compatible Products

• LSIiBBU06 (Requires LSI00260)
• LSIiBBU07 (Requires LSI00260)
• LSIiBBU08 (Requires LSI00260 when using 9260-4i/8i controllers)
• LSIiBBU09
• All LSI CacheVault Power Modules
