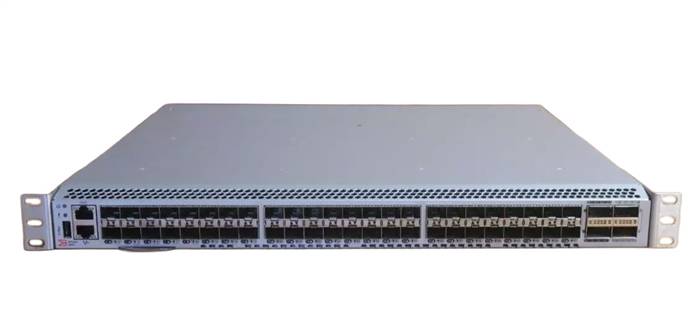

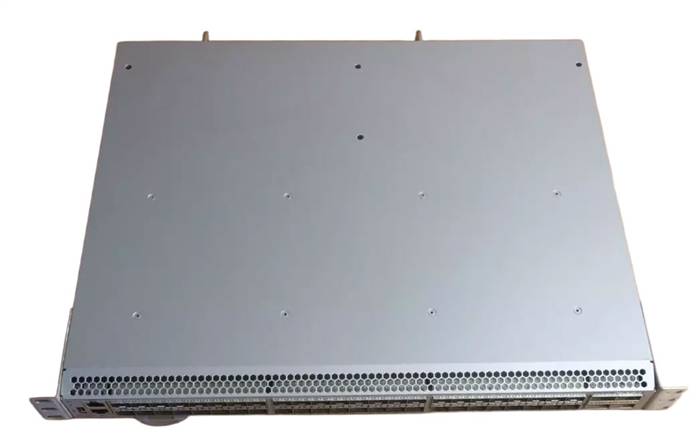

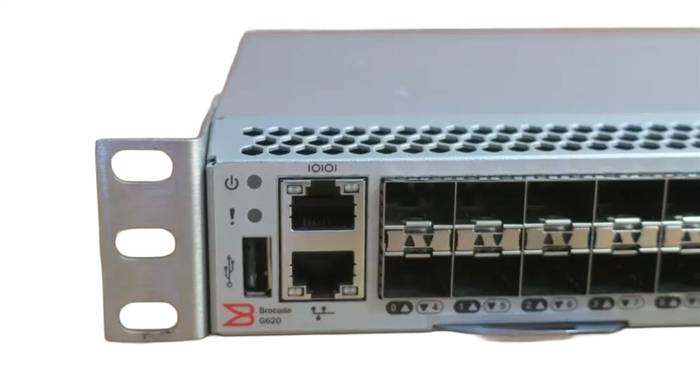

Brocade BR-G620-48-32G-R G620 48-Ports (48 Active Ports) FC SAN Switch with 48x 32Gb SWL SFP+

Take advantage of lightning-fast flash storage networking technology and adapt quickly to dynamic business demands with the Brocade G620 Switch. This powerful Gen 6 Fibre Channel switch shatters application performance barriers and simplifies scale-out network architectures—in an enviably small footprint. And with built-in instrumentation, you gain greater insight and control to reduce cost, management complexity, and risk.

Breakthrough performance: Get the performance you need to support critical business applications and the most from your investment in solid state storage technology.

Increased scalability: Reduce operating costs and management complexity by simplifying scale-out architectures—all in a 1U form factor.

Operational stability: Reduce risk with the industry's first built-in metrics. Achieve greater control and operational insights to quickly identify issues and easily meet or crush SLAs.

Features

Handle demanding applications easily

• Seamlessly transition to next-generation NVMe flash arrays
• Increase performance for demanding workloads across 32G links
• Reduce latency in high-transaction applications by up to 10x compared to other offerings

Simplify scalability and management

• Deliver simplified scalability with the industry's highest port density storage networking switch
• Simplify end-to-end management of large scale environments by automating monitoring and diagnostics
• Increase VM density with greater device support and deep visibility into virtualized workloads
• "Pay as you grow" scalability from 24 to 64 ports for on-demand flexibility

Achieve control and insight

• Detect degraded storage performance with built-in device latency and IOPS monitoring
• Understand storage I/O workloads and behaviors to ensure consistent and predictable performance
• Increase resilience though automatic detection and recovery from network and device-level errors
• Ensure predictable performance with pre-deployment validation and benchmarking
• VM Insight enables Virtual Machine (VM) visibility in a storage fabric to monitor and optimize VM performance and identify VM anomalies

Specifciations

• Lifecycle: Active
• Access Gateway: Supports
• Bandwidth: 2 Tb/s
• Certified Maximum: 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required
• Fibre Channel Performance: Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 10.53Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4/8/10/16/32G port speeds; 10 Gb/s optionally programmable to fixed port speed. Auto-sensing of 4x32/4x16/4x8/4x4G speeds on the QSFP ports with Brocade FOS v8.2.0
• FICON Support: Supports
• Frame Based ISL Trunking: 256Gb/s frame-based trunk (optional)

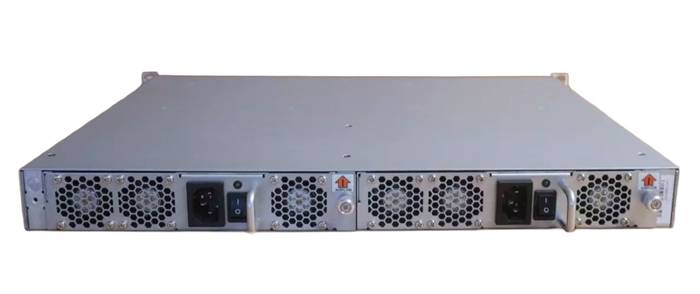

• Power Text: 205W, dual hot-swappable power supplies
• Size (mm): 440(W) x 43.9(H) x 355.6(D)
• Total Line Rate Ports: 24 to 64 @ 32G
