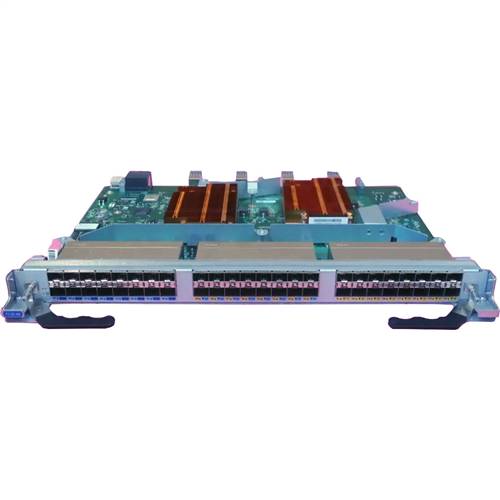

BR-X6-0148 - Brocade FC32-48
BR-X6-0148 - Brocade FC32-48

Alternative Views:
Our Price: $21,500.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: BR-X6-0148
Qty:

Description


Brocade BR-X6-0148 Port Blade, FC32-48, 48P, 0 SFP, BR

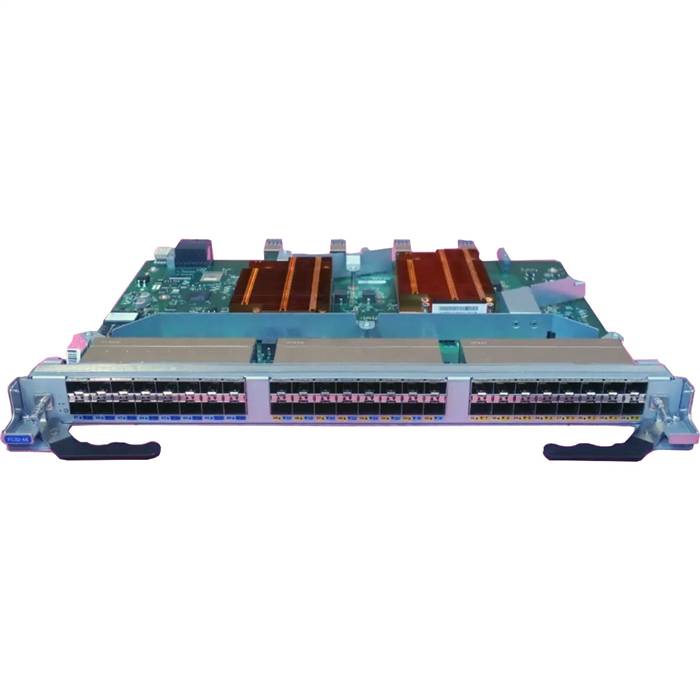

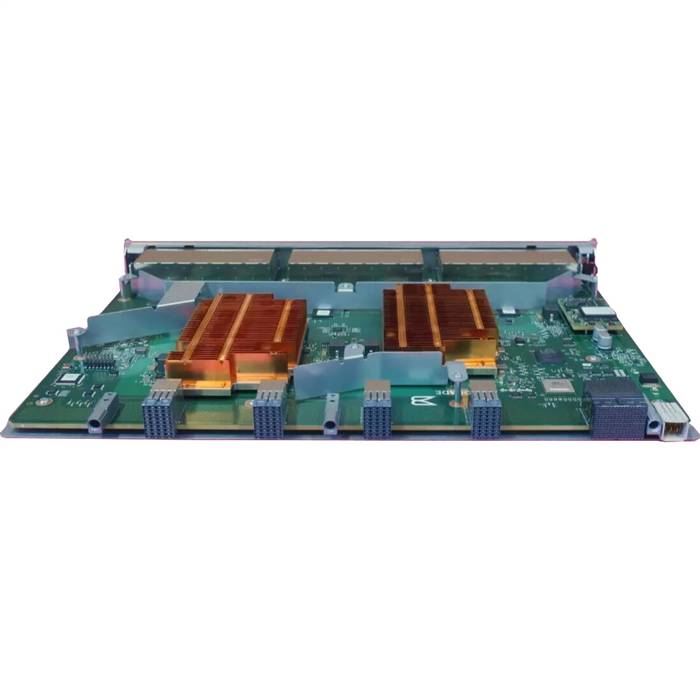

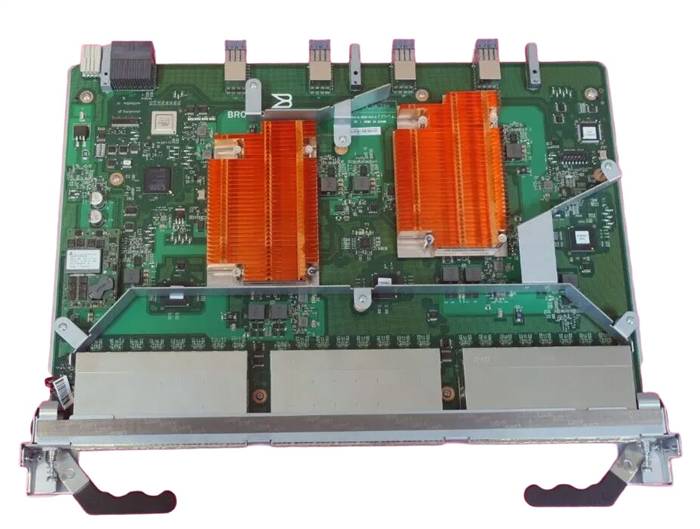

The FC32-48 port blade contains 48 ports capable of Fibre Channel (FC) speeds up to 32G. Each port blade provides 48 backplane port connections to core routing blades. The port blade supports port-based in-flight encryption/decryption and compression/decompression.

Port and extension blades can be mixed in device slots 3, 4, 7, and 8, but CR32-4 blades must be installed in slots 5 and 6. Up to four hot-swappable port blades can be installed in a single chassis to provide up to 192 32G FC ports.

Optics such as the following can be installed in the blade's FC ports. For a complete list of transceivers, see Installing Transceivers and Cables.

  • 32G SFP+ transceivers supporting 8G, 16G, and 32G speeds.
  • 16G SFP+ transceivers supporting 4G, 8G, and 16G speeds.
  • 10G SFP+ transceivers supporting 10G.

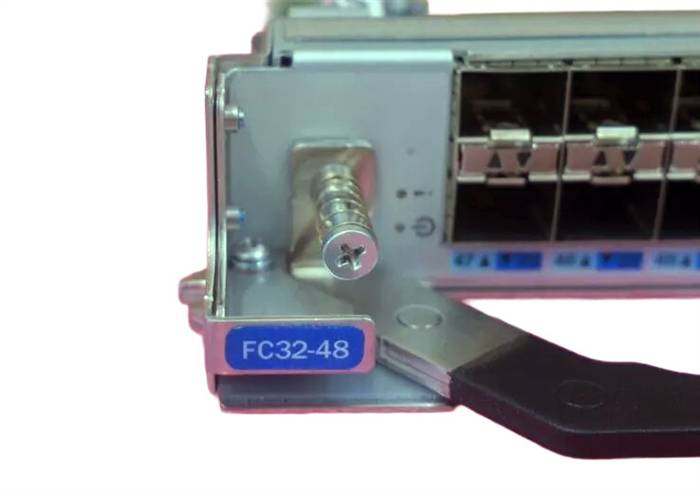

Port blades contain the following LED indicators:

  • Green blade power LED
  • Amber blade status LED
  • Bicolor green/amber FC port status LEDs

For details on interpreting LED operation, see Interpreting FC32-48 Port Blade LEDs.
