Cisco CAB-530MT MALE DTE RS-530 CAB 10 FT

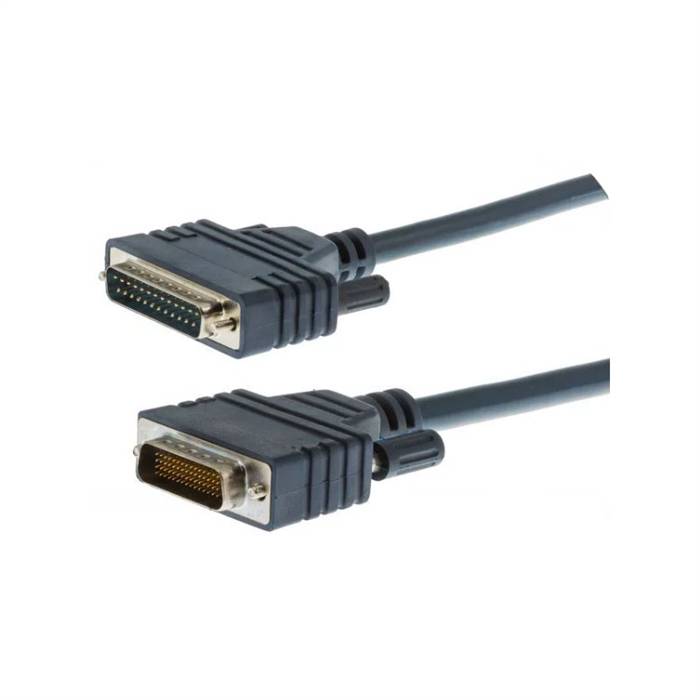

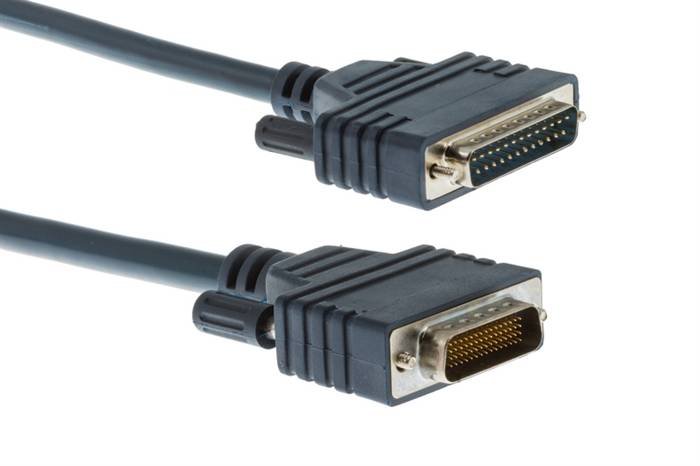

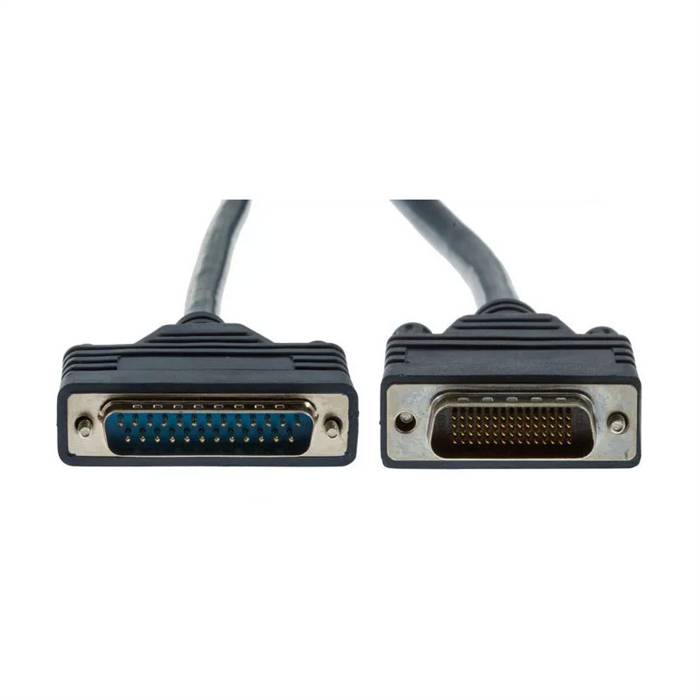

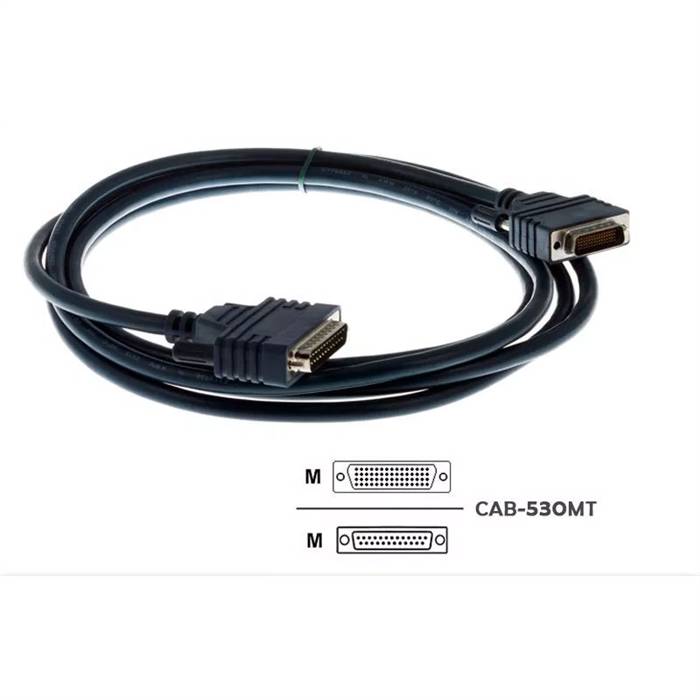

The CAB-530MT cable is used in the Cisco 7000 family, Cisco 4000 series, Cisco 3600 series, Cisco 2500 series, Cisco 1600 series, Cisco access servers, and AccessPro PC cards. This cable has a male DB-60 connector on the Cisco end and a male DB-25 connector on the network end.

Specifications

• Manuf Part#: CAB-530MT
• Part Number: 72-0798-01
• Product Name: LFH60 Male to DB25 RS530 DTE Male Cable
• Protocol: RS-530
• Connector on First End: 1 x 60-pin Low Force Helix (LFH60) Male
• Connector on Second End: 1 x 25-pin DB25 RS-530 DTC Male
• Length: 3 meter (10 feet)
• Cable: 28 AWG Copper
