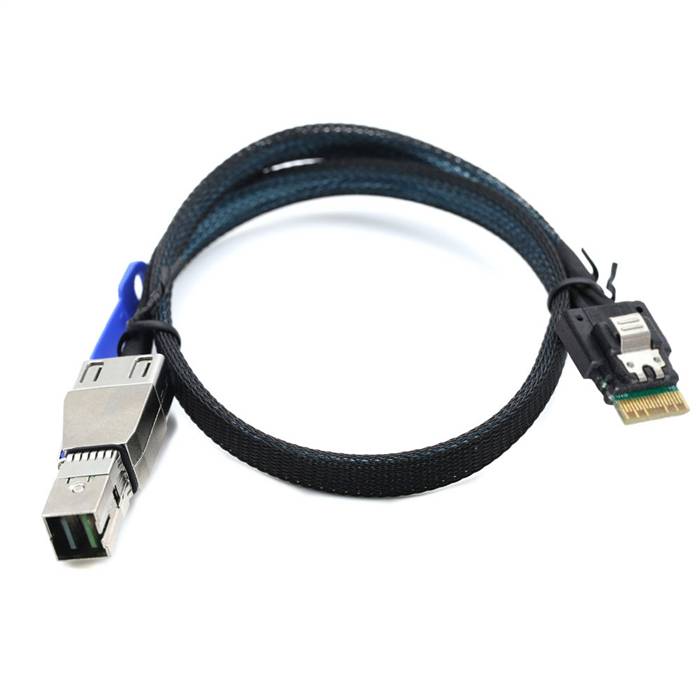

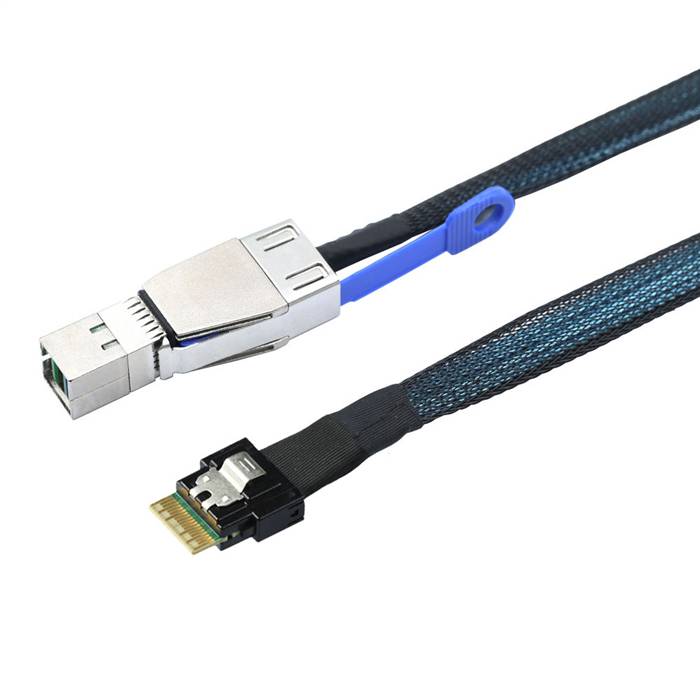

SlimSAS SFF-8654 4i to External HD Mini SAS SFF-8644 Cable

The SlimSAS SFF-8654 4i to External HD Mini SAS SFF-8644 Cable is a high-performance interface conversion cable designed for modern data center and enterprise storage environments. This cable provides a crucial connection between the internal SlimSAS SFF-8654 4i interface and the external Mini SAS HD SFF-8644 interface, enabling seamless integration of internal host systems with external storage devices. Engineered to support high-speed data transfer protocols including SAS and PCIe, this solution ensures reliable performance in demanding storage applications while facilitating efficient connectivity between internal controllers and external storage expansions.

Features

• Hybrid Interface Solution: Bridges the internal SlimSAS SFF-8654 4i interface with the external Mini SAS HD SFF-8644 interface, providing connectivity between internal host systems and external storage devices.
• High-Speed Data Support: Supports data transfer rates up to 12 Gbps (SAS 3.0) and is compatible with 24 Gbps (SAS 4.0) protocols, ensuring efficient performance for enterprise storage applications.
• Enhanced Signal Integrity: Utilizes precision-engineered cables (e.g., 32 AWG high-frequency copper) with multi-layer shielding to minimize signal degradation, crosstalk, and electromagnetic interference (EMI), ensuring stable data transmission.
• Durable Construction: Features robust connectors with metal shells on the external SFF-8644 end for enhanced protection in external environments, while maintaining a compact form factor for internal connections.
• Secure Connection System: Incorporates positive latching mechanisms on both connectors to ensure stable connections in vibration-prone environments and prevent accidental disconnection.
• Thermal Management: Designed to operate within a wide temperature range, ensuring reliability in various environmental conditions encountered in data center applications.

Specifications

• Product Model: SlimSAS SFF-8654 4i to External HD Mini SAS SFF-8644 Cable
• Connector A: SlimSAS SFF-8654 4i, Internal, Male
• Connector B: External Mini SAS HD SFF-8644, 36-Position, Male
• Connector Gender: Male to Male
• Cable Type: Internal to External Conversion
• Cable Length: Standard options: 0.5m, 1.0m, (Custom lengths available)
• Data Rate Support: Up to 12 Gbps (SAS 3.0), 24 Gbps (SAS 4.0)
• Supported Protocols: SAS 2.0/2.1/3.0/4.0, PCI Express (PCIe) 3.0/4.0
• Wire Gauge: 32 AWG (high-frequency copper)
• Shielding: Individual pair shielding with overall braid and foil shield
• Operating Temperature: 0°C to +70°C (commercial); -40°C to +85°C (industrial options)
• Durability: Minimum 1,000 insertion cycles
• Safety Standards: RoHS compliant

Applications

• Storage Area Network (SAN) Expansion: Connecting internal host bus adapters (HBAs) or RAID controllers with SlimSAS interfaces to external storage arrays or JBOD enclosures using Mini SAS HD interfaces.
• Data Center Infrastructure: Deploying in data center environments where internal servers need to connect to external storage systems for capacity expansion or backup purposes.
• Backup and Disaster Recovery: Facilitating high-speed backups to external storage devices and disaster recovery systems through reliable SAS connections.
• System Integration and Migration: Enabling the integration of external storage solutions with existing server infrastructure during system upgrades or migrations.
• High-Availability Storage Configurations: Supporting storage configurations where external storage arrays are connected to multiple servers for high-availability applications and redundancy.
• Test and Development Environments: Providing flexible connectivity options for storage testing and development setups that require connections between internal systems and external storage devices.
