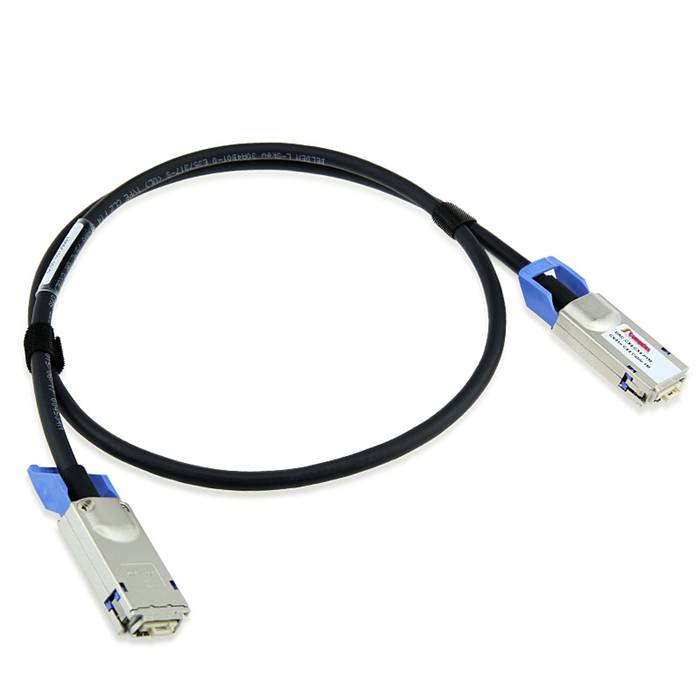

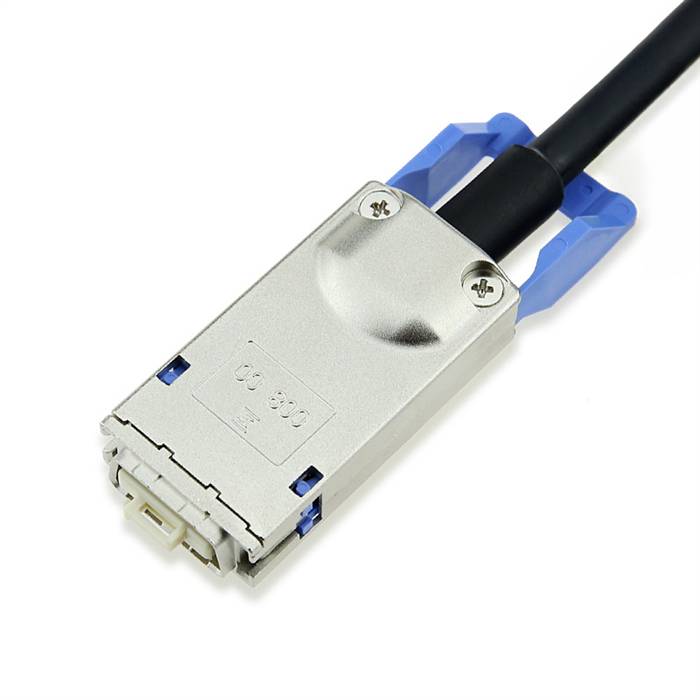

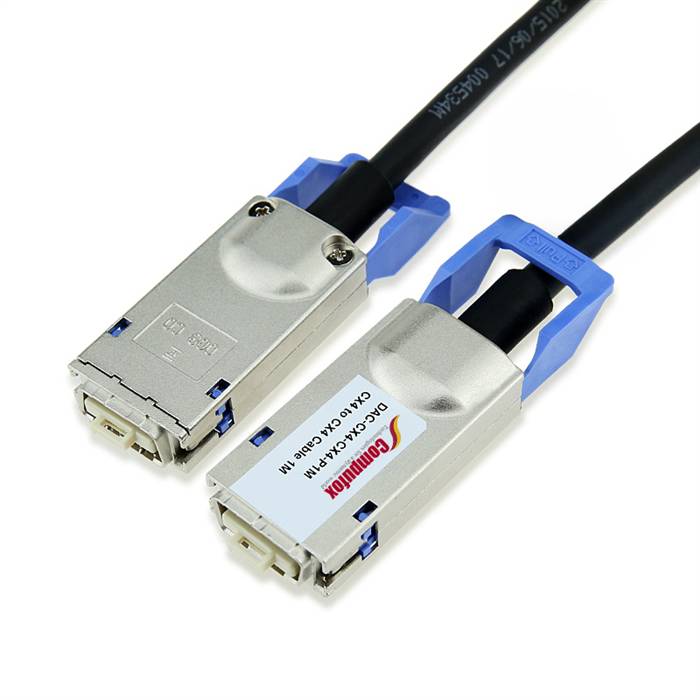

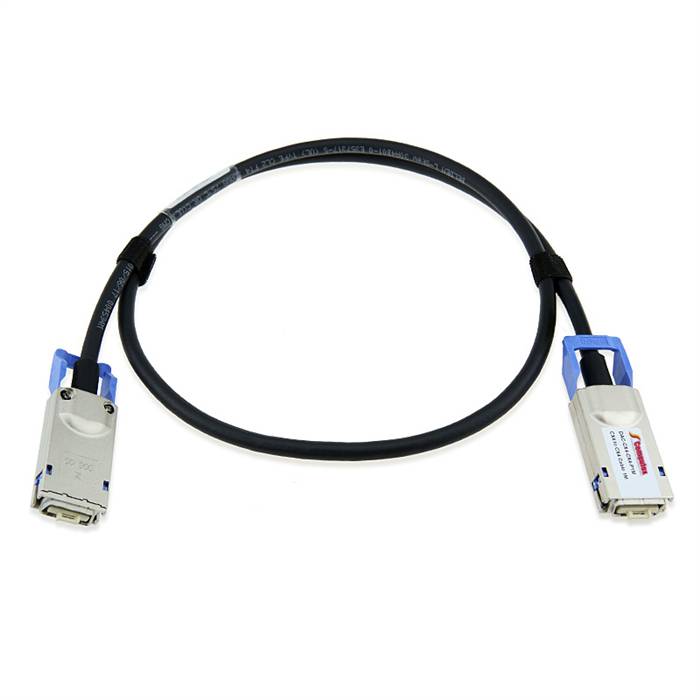

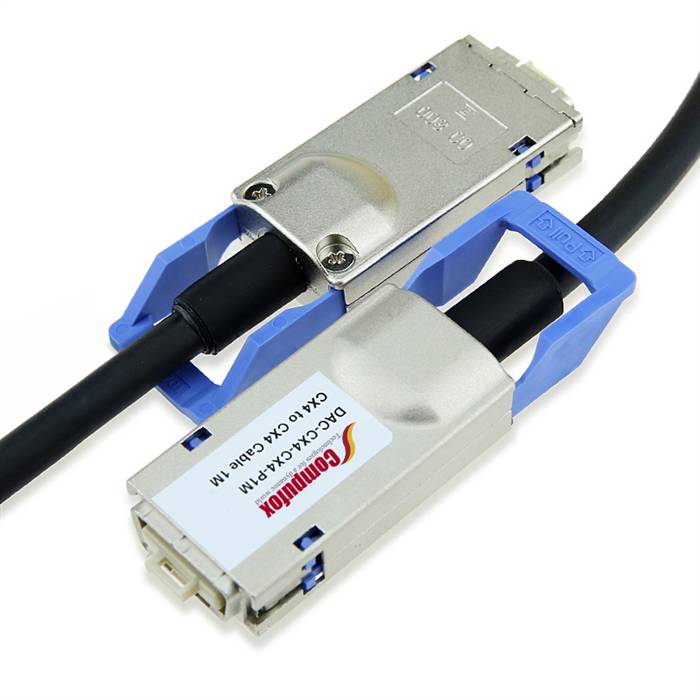

10GBase-CX4 CX4 SFF-8470 to CX4 SFF-8470 Direct Attach Cable, Latch to Latch, 1 meter

10GBase-CX4 is an IEEE specification for 10 Gigabit over coaxial cable, intended to connect servers, switches and storage over short distances of up to 15 metres/50 feet. 10GBase-CX4 or 802.3ak uses the Infiniband 4X connector to maximize signal strength and can support data transfers of up to 10 Gigabits per second, 10 times as fast as gigabit Ethernet. It combines low cost cables and equipment with high speed for short distance connections. Applications include inter-switch, switch to server and storage CX4 Cables are tested to a higher test standard than are InfiniBand cables.Therefore, CX4 cables are backwards compatible to Infinband, but Infiniband cables do not necessarily meet CX4 test standards.

Specifications

• Connectors: CX4 to CX4 (Ejector Type)
• Length (Meters): 1m
• Wire: 24AWG Madison Twin Turbo Copper
• Color: Black
• Jacketing: Riser Rated (OFNR)
• Standards: Qualified to the latest IEEE 802.3ak 10GBASE-CX4 specifications
• Features: Data rate per channel of up to 5.0Gb/s (20Gb/s aggregate)

Compatible

• 3Com 3C17776,
• HP 444477-B22,
• Cisco CAB-INF-28G-1=,
• Belkin CX4-1M,
• IBM 45W2821,
• Qlogic 7104-1M-CABLE
