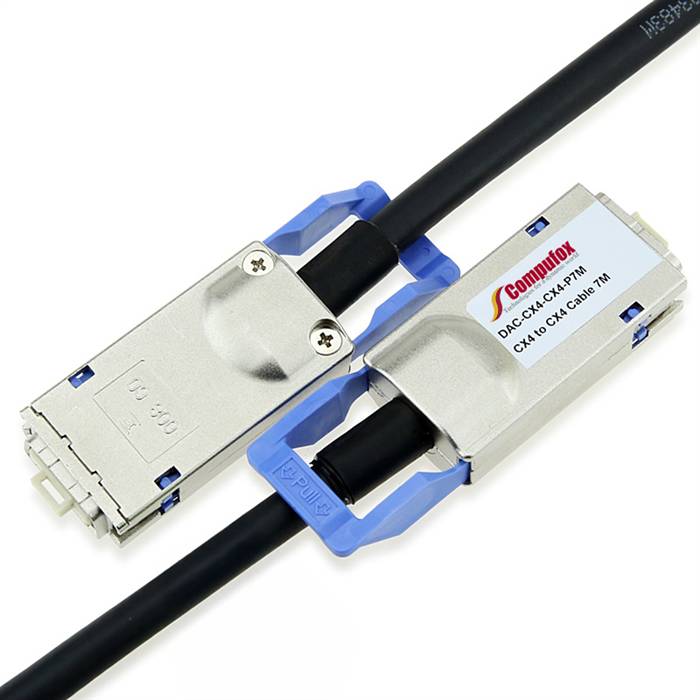

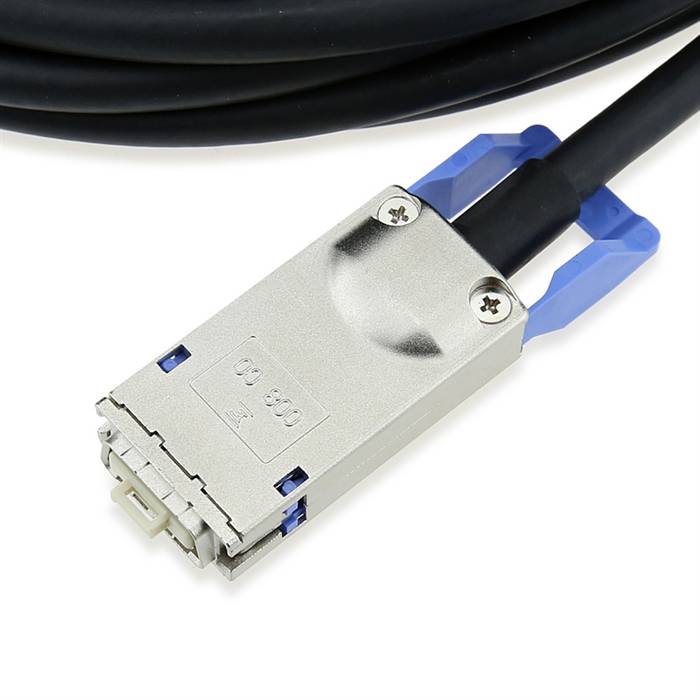

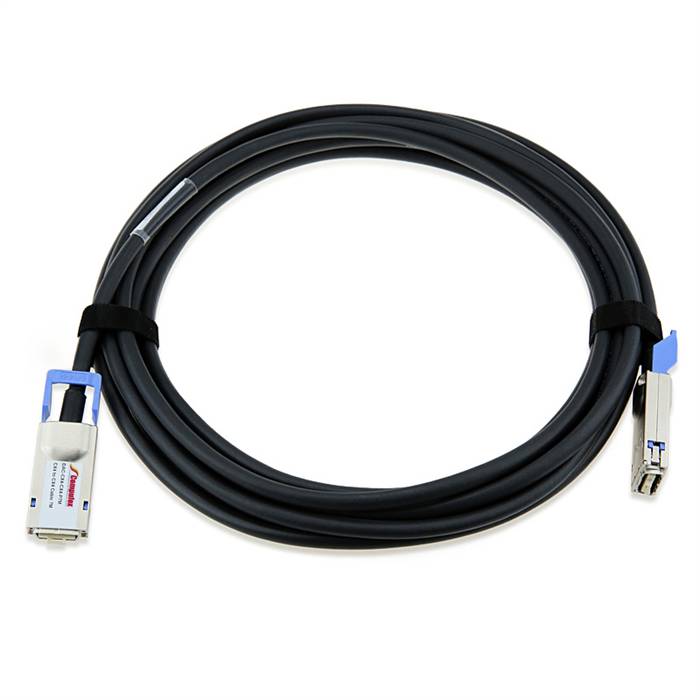

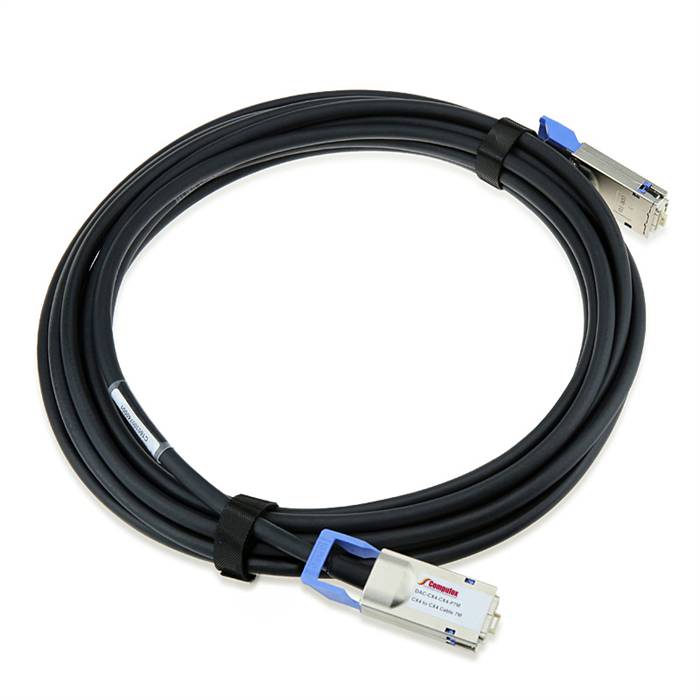

10GBase-CX4 CX4 SFF-8470 to CX4 SFF-8470 Direct Attach Cable, Latch to Latch, 7 meter

10GBase-CX4 is an IEEE specification for 10 Gigabit over coaxial cable, intended to connect servers, switches and storage over short distances of up to 15 metres/50 feet. 10GBase-CX4 or 802.3ak uses the Infiniband 4X connector to maximize signal strength and can support data transfers of up to 10 Gigabits per second, 10 times as fast as gigabit Ethernet. It combines low cost cables and equipment with high speed for short distance connections. Applications include inter-switch, switch to server and storage CX4 Cables are tested to a higher test standard than are InfiniBand cables.Therefore, CX4 cables are backwards compatible to Infinband, but Infiniband cables do not necessarily meet CX4 test standards.

Our 10GBASE-CX4 10Gb Ethernet cables are made from premium materials to provide high speed interconnect functionality over distances up to 15 meters. This cable meets the 10 Gb ethernet standard as well as being fully compliant with the IEEE Draft P802.3ak/D5.3 specification. Supports 10GBASE-CX4 and SDR/DDR InfiniBand applications.

Specifications

• Connectors: CX4 to CX4 (Ejector Type)
• Length (Meters): 7m
• Wire: 24AWG Madison Twin Turbo Copper
• Color: Black
• Jacketing: Riser Rated (OFNR)
• Standards: Qualified to the latest IEEE 802.3ak 10GBASE-CX4 specifications
• Features: Data rate per channel of up to 5.0Gb/s (20Gb/s aggregate)
