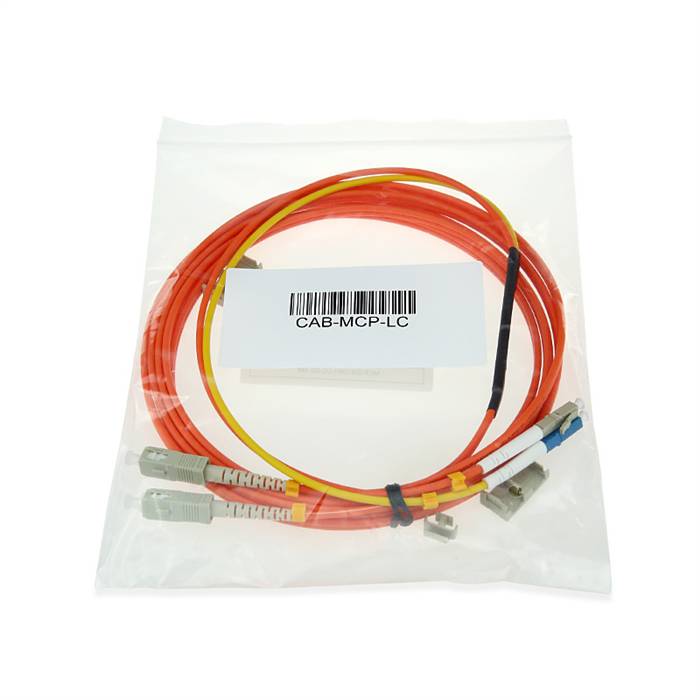

Cisco Compatible CAB-MCP-LC Mode-conditioning patch cable 62.5u, LC connector
CAB-MCP-LC - Cisco CAB-MCP-LC=

Alternative Views:
Our Price: $50.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: CAB-MCP-LC


Select Length*:

Qty:
Description

Cisco Compatible CAB-MCP-LC Mode-conditioning patch cable 62.5u, LC connector.

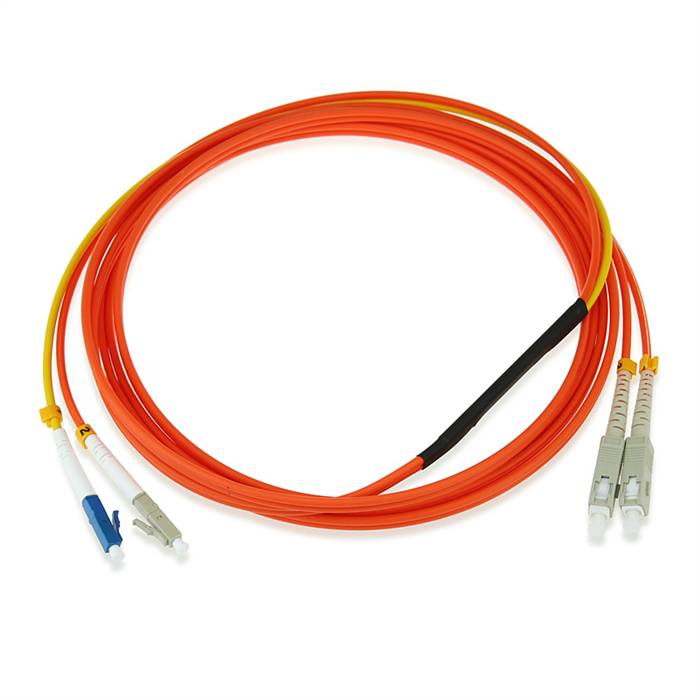

CAB-MCP-LC, IEEE 802.3z-compliant optical fiber assembly consisting of a single-mode fiber permanently coupled off-center to a 62.5-micron multimode optical fiber with duplex SC connectors at one end and duplex LC connectors at the other end. The patch cord is 1 meter (3.28 feet) in length.

When using 1000BASE-LX/LH, 10GBASE-LX4 and 10GBASE-LRM transceivers with legacy 62.5-micron or 50-micron MMF, you must install a mode-conditioning patch cord between the transceiver and the MMF cable on both ends of the link. The patch cord is required as per IEEE standard and Cisco specification for all links over FDDI-grade, OM1 and OM2 fiber types, and should never be used for applications over OM3 and more recent fiber types.

Mode Conditioning Patch Cord Configuration


Patch Cord Installation
The mode-conditioning patch cord is installed between the transceiver and the patch panel. Two mode-conditioning patch cords are required per installation. To install the patch cord, follow these steps:
  • Step 1, Plug the single-mode fiber (SMF) connector into the transmit bore of the transceiver.
  • Step 2, Plug the other half of the duplex connector into the receive bore of the transceiver.
  • Step 3, At the other end of the patch cord, plug both MMF connectors into the patch panel.
  • Step 4, Repeat Step 1 through Step 3 for the second transceiver located at the other end of the network link.
Specifications
  • Part Number: CAB-MCP-LC
  • Cable Type: Mode-conditioning Patch Cord

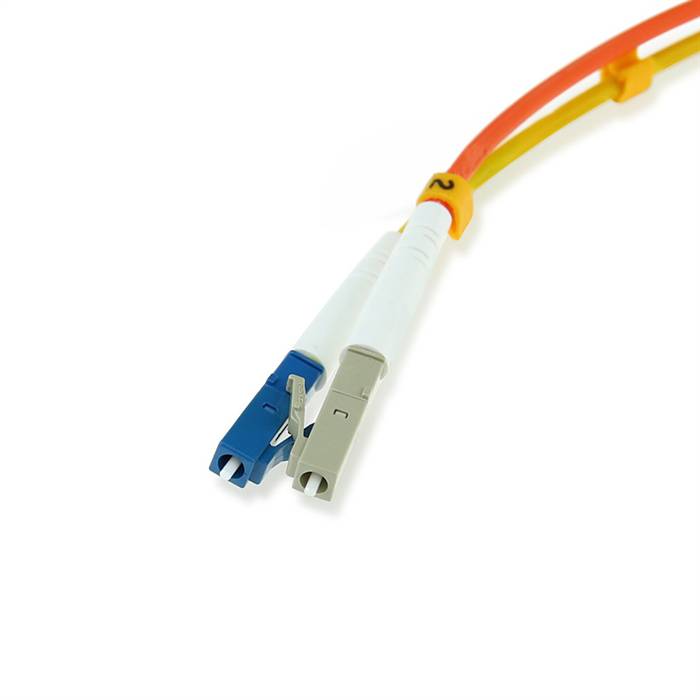

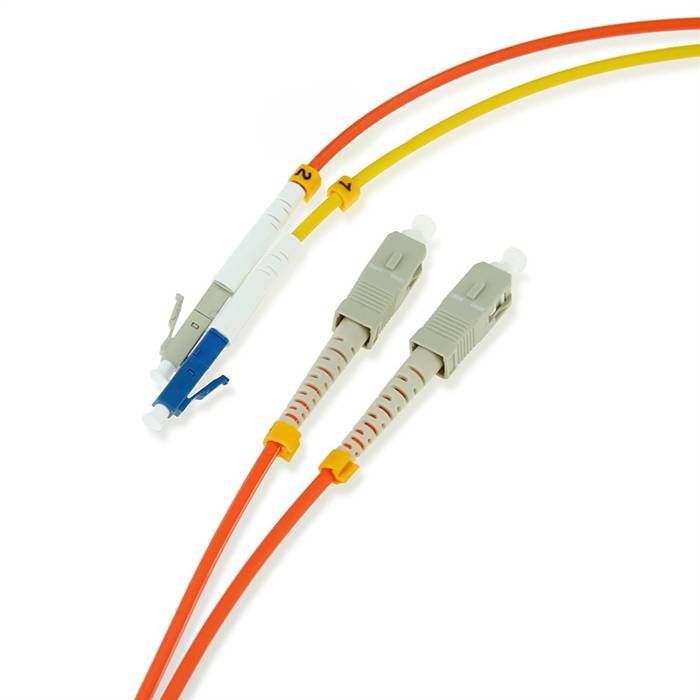

  • Connector A: Duplex LC (SFP Side)
  • Connector B: Duplex SC (Cable Plant Side)
  • Length: 1 meter (3.28 feet)
