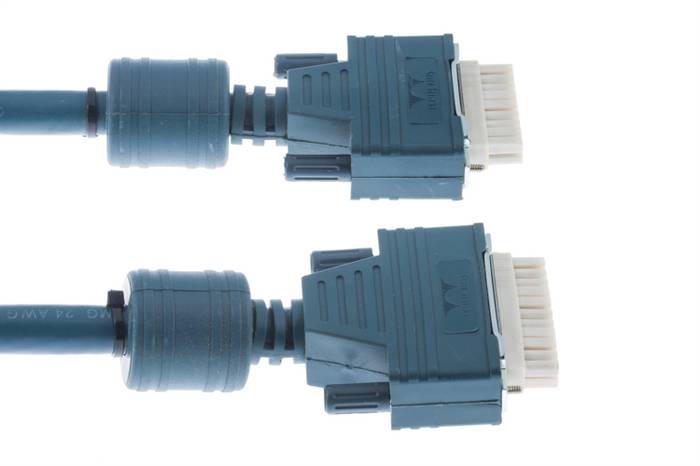

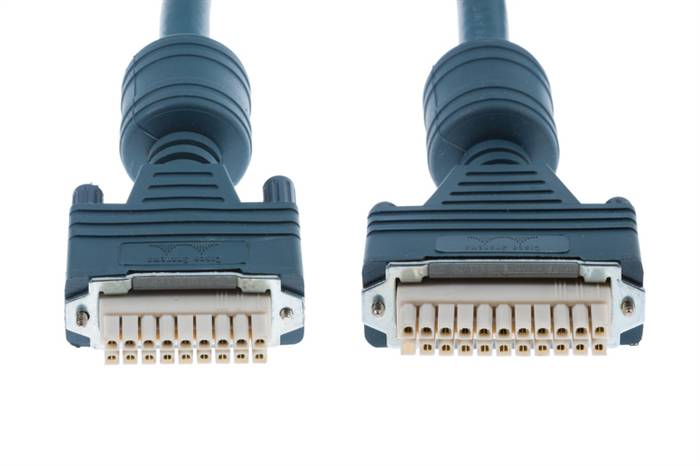

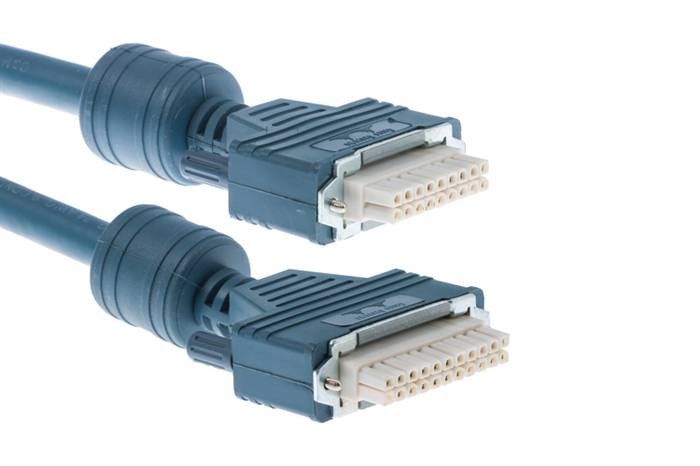

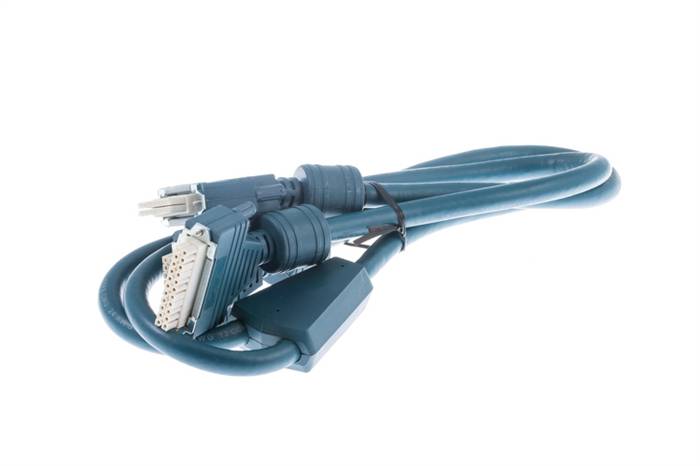

Cisco CAB-RPSY-2218 RPS 22/18 Two-to-one DC Power Cable.

The Cisco CAB-RPSY-2218 (72-1197-01) is a 2-to-1 DC "Y" cable designed to connect a Redundant Power System (RPS) to Cisco networking devices. It features a 22-pin connector on one end and splits to two 18-pin connectors, allowing for high-density, reliable power redundancy for devices like switches and routers, excluding the 2500/MC3810 series.

Specifications

Part Number: CAB-RPSY-2218

Cable Type: Cisco Power Cable

Connector A: 2 x 22P

Connector B: 18P

Length: 4ft

Wire: Power Cable

RoHS Compliant: Yes

Key Details:

Function: Connects one RPS to two devices, or provides redundant power to a single device (2-to-1 Y-cable).

Compatibility: Designed for Cisco networking equipment (e.g., switches, routers) requiring a 22-pin to 18-pin configuration, specifically excluding older Cisco 2500 and MC3810, which use 22-pin to 8-pin.

Pins: RPS 22/18.

This cable is frequently used to ensure continuous operation of infrastructure by connecting it to a Cisco 600-Watt Redundant AC Power System.
